G 1/4 " Lock Type Pneumatic Mechanical Valve Hand Pull Valve Two Position Five Way

G 1/4 " Lock Type Pneumatic Mechanical Valve Hand Pull Valve Two Position Five Way

    • G 1/4 " Lock Type Pneumatic Mechanical Valve Hand Pull Valve Two Position Five Way
    • G 1/4 " Lock Type Pneumatic Mechanical Valve Hand Pull Valve Two Position Five Way
  • G 1/4 " Lock Type Pneumatic Mechanical Valve Hand Pull Valve Two Position Five Way

    Product Details:

    Place of Origin: China
    Brand Name: NBSANMINSE
    Certification: ISO9001
    Model Number: TSV

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiation
    Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
    Delivery Time: Negotiation
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: Negotiation
    Contact Now
    Detailed Product Description
    Position Number: 5 / 2 Way , 3 / 2 Way Port Size: G1 / 8 " , G1 / 4 "
    Code: Mechanical Lock , Spring Return Working Medium: Air
    Operation: Direct Drive Type Pressure: 0 ~ 0.8MPa

    TSV Series Hand Pull Valve Two Position Five Way G 1/4 " Mechanical Lock Type Pneumatic Manual Valves Sanmin





    Series Code
    TSV86
    TSV98

    Position Number
    52 : 5/2 Way
    32 : 3/2 Way

    Port Size
    1:G1/8"
    2:G1/4"

    Code
    M : Mechanical Lock
    S : Spring Return

    Specification

    Model

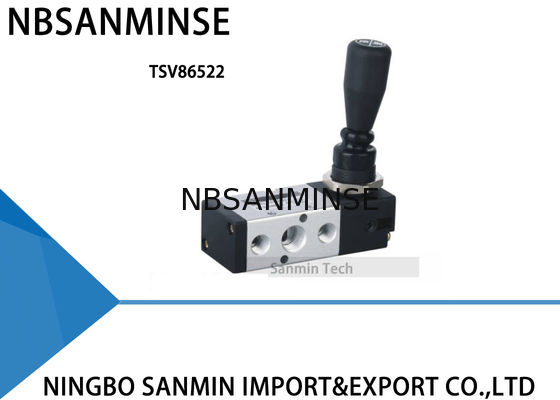

    TSV86522 M
    TSV86522 S

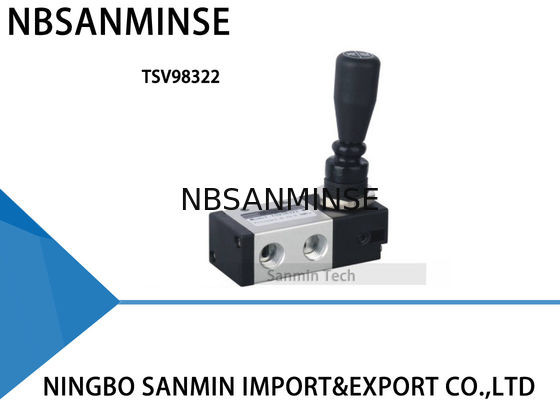

    TSV98322 M
    TSV98322 S
    Position Number
    5/2 Way
    3/2 Way
    Working Medium
    Air 40 Micron Filtered
    Operation
    Direct Acting
    Effective Cross Section Area
    18mm⊃2;
    Port Size
    G1/4
    Working Pressure
    0 ~ 0.8 MPa
    Working Temperature
    0 ~ 60 ℃







    FAQ



    Q: How much is our minimum order quantity ?
    A: Our minimun quantity is 1 Piece .



    Q: Could you offer the free samples ?
    A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



    Q: What is the price of the product ?
    A: Our prices are based on the size and type of material , if you can give me the information ,
    then we can give you an estimated price is for reference only . We can do any size and any desgin .



    Q: what types of products you can make ?
    A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .



    Q: What ' s your business scope ?
    A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve ,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick coupler , etc .



    Why choose us



    1: Sample order & small quantity order is acceptable .

    2: Reliable quality assured and active after-sell service
    3: One year quality guarantee
    4: Customize according to your special request .
    5: Various style for each products and completely series pneumatic products .



    G 1/4 " Lock Type Pneumatic Mechanical Valve Hand Pull Valve Two Position Five Way
