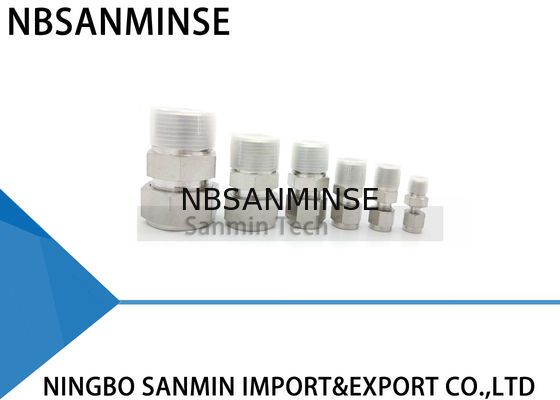

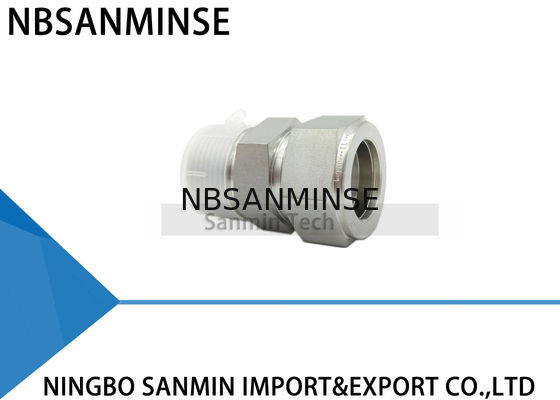

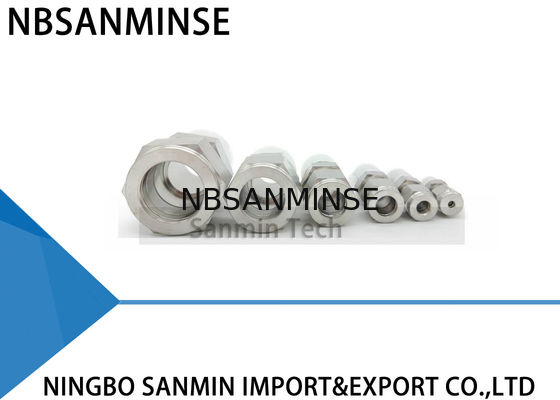

MC Male Connector Stainless Steel SS316L Plumbing Fitting Pneumatic Air Fitting High Quality Sanmin

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: MC
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation

Detail Information

Type: SS316 Pipe Fitting Standard Or Nonstandard: Standard
Material: Stainless Steel 316L Pressure: 3000 Psi
High Light:

stainless steel air hose fittings

,

stainless steel air line fittings

Product Description

RUT Union Tee Stainless Steel SS316L Plumbing Fitting Pneumatic Air Fitting High Quality Sanmin





Tube Fittings Description

The tube fitting is a mechanism used both to seal and to grip tubing . The mechanical advantage and geometry of this kind of fitting produces a leak – tight assembly .
To assemble , simply insert the tube into the complete assembly until the tube bottoms – out against the shoulder of the fitting body . The two ferrules are driven forward between the nut and fitting body using the mechanical force created by rotating the nut clockwise . The Back ferrule is driven against the tapered rear of the front ferrule is driven by force into the tapered mouth of the body .
The rear ferrule is swaged radially inwards on the tube while lifting the front ferrule out to form a full – faced seal on the tapered surface of the body .
The 1-1/4 Turn of the nut from the hand tight position assures consistent drive of the sealing members . This ensures an effective seal against high pressure as well as ultra high vacuum conditions .

Tube cutting

Two different methods can be used to cut tubes :
1 . Tube Cuter
2 . Hacksaw

Warning

Do not hold the tube in a vise in the place where it will be inserted into the fitting ( the vise will leave a mark on the tube that may cause leaks , and might cause ovality ).

Tube Handling

Scratches on the tube might cause leaks . it is , therefore , important to handle the tube carefully to reduce the risk of leaks .

Some Recautions to be taken

1.Tubes must not be dragged on the floor .
2.Tubes must not be dragged out of a tubing rack , especially in case of large OD tubes


Copper Tubing

If using copper tubing from a roll , hold the end of the tube and roll the roll outwards allowing the tubing to lie on a flat surface .

Inspection Tubing

Use : This is a “ No- Go ” Gauge and should be used as follows :
Make up to fitting according to the following instructions : 1/4 inch ( 6mm ) , 3/8 inch , 1/2 inch ( 12mm ) – make up 1-1/4 turns from finger tight . Check gap between nut and body , using the appropriate sized gauge . If the gauge slides easily into the gap , tighten the nut further until gauge can not enter the gap

High Safety

In applications where severe conditions and high pressure exist , we recommend the following installation procedures :
1. Check that the nut is finger tight
2. Insert the tube ( Up to the shoulder )
3. Rotate the nut with a wrench until the tube does not rotate freely .
4. Mark position of the nut .
5. Rotate the nut 1-1/4 turns .

This method ensures that even if the tube O.D. is at the minimum tolerance , the ferrules will be in contact with the tube for the full 1-1/4 rotation.

In order to assure maximum fitting reliability and performance , great care should be given when selecting the tubing for each application

Tube Selection

Four variables must be considered when ordering tube for use with fittings :
1. Material
2. Tube wall thickness
3. Tube surface finish
4. Tube hardness

Tubing should comply with standard ASTM A213 or ASTM A269 , be seamless , and fully annealed .
The tube must be red of scratches and suitable for bending and flaring .


Why choose us



1: Reliable quality assured and active after-sell service
2: One year quality guarantee
3: Various style for each products and completely series pneumatic products .

4: High quality with competitive price .
5: Sample order & small quantity order is acceptable .



FAQ



Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .



Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .



Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
