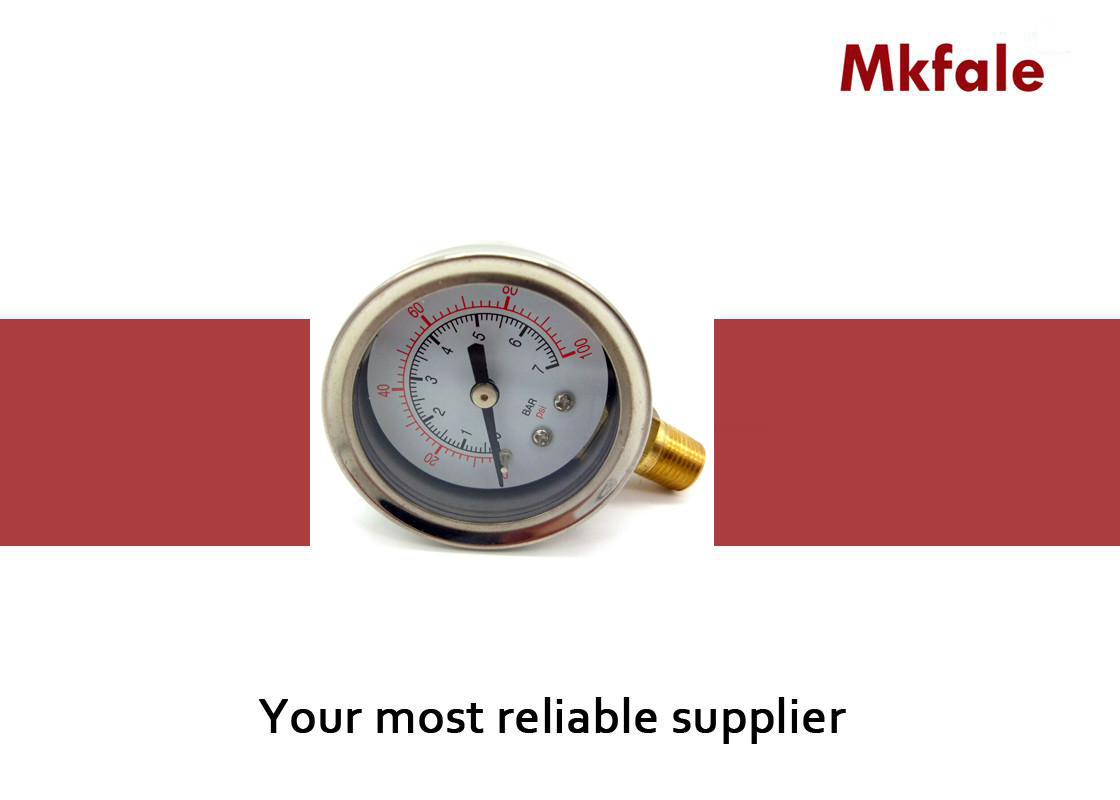

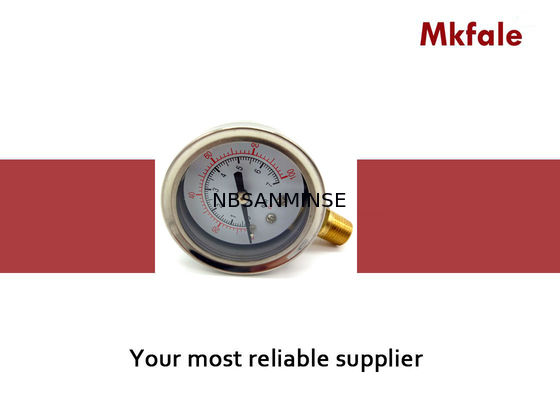

Plastic Window Liquid Filled Pressure Gauge 50mm For Pneumatic / Hydraulic System

Plastic Window Liquid Filled Pressure Gauge 50mm For Pneumatic / Hydraulic System

Plastic Window Liquid Filled Pressure Gauge 50mm For Pneumatic / Hydraulic System

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SM2SB

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Nominal Size: 50 Mm Accuracy Class: Class 2 . 5
Connection Size: G1 / 4 Sensing Element: Copper Alloy
Pointer: Black Painted Aluminium Dial Plate: Aluminium Alloy

Plastic Window Liquid Filled Pressure Gauge For Pneumatic And Hydraulic System





NORMAL TWO PIECE SCREWED CONNECTION STAINLESS STEEL CASE PRESSURE GAUGE SM2SB

Application

Applicable for pneumatic and hydraulic , systems , compressors , engines , pumps , sprinkles system , building automation system and processing unit where vibration is concern.

Features

Accuracy class 2 . 5 , class 1 . 6 , Wide range vibration application
Stainless steel case design , Knock - down system back and front flange
Two piece screwed connection design , Over pressure up to 30 % of Full Scale
Restrictor screw standard , Excellent vibration resist with liquid filling
Design scale ranges up to 600 bar

Technical Specification

Nominal Size : 40 , 50 , 63 ,75 ,100 and 150mm
Accuracy Class : Class 2 . 5 , Class 1 . 6 ( ≥ 100mm )
Ingress Protection. : IP65
Connection Size : G1 / 8 , G 1 / 4 , G1 / 2 or NPT or others
Scale Rang : Pressure 0 .. 600 bar , Vacuum - 1 bar .. 0 , Compound - 1 .. 24 bar
Filling : Dry or liquid filled
Tube Element Shape : P ≤ 100 bar in C tube , P > 100 bar in helicoil
Operating Temperature : Ambient temperature – 10 ° .. + 70 ° C , Medium temperature 90 ° C Max.
Temperature Error : Additional error when pressure element tmperature
deviates from reference temperature +20° C(+68° F), be ±0.4%/10° C(50° F) rising or falling
Over Pressure Limit : 130 % of F . S . P ≤ 100 bar , 115 % of F . S . P > 100bar
Dial Graduation : Black graduation on white for single range, Black and red graduation on white for dual ranges

Design Material

Casing and Bezel Ring : Copper alloy ( SM2SB )
Sensing Element : Copper alloy ( SM2SB )
Connection : Brass ( SM2SB )
Window : Plastic
Window gasket : Industrial rubber seal
Pointer : Black painted aluminium
Dial Plate : Aluminium alloy

Why choose us


1: Various style for each products and completely series pneumatic products .
2: Sample order & small quantity order is acceptable .
3: Customize according to your special request .
4: Provide free products information .
5: Reliable quality assured and active after-sell service


FAQ

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .


Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.


Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.


Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
