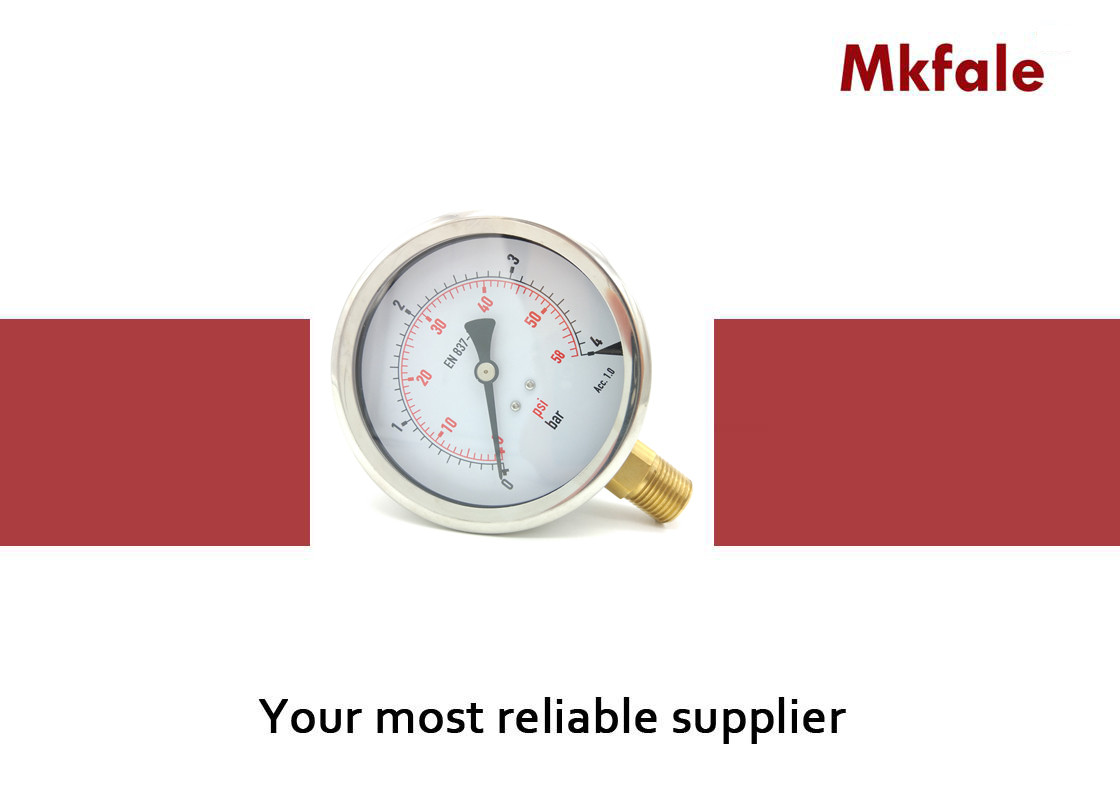

100mm liquid filled pressure gauge Stainless Steel Pressure Gauge

100mm liquid filled pressure gauge Stainless Steel Pressure Gauge

100mm  liquid filled pressure gauge Stainless Steel Pressure Gauge

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SM1SP - 100 L / B

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Thread Size: 1 / 2 " Nominal Size: 100mm
Filling: Dry Or Liquid Filled Ingress Protection.: IP65 ( Weather Tight )
Connection: Brass Window: Plastic

Stainless Steel Pressure Gauge , 100mm Liquid Filled Fuel Pressure Gauge








Technical Specification Table



ONE PIECE CONNECTION STAINLESS STEEL CASE DESIGN

SM1SP One piece connection with crimped case design



Application

A special design with stainless steel case and copper alloy wetted part and fillable option for

extreme vibration aplication and non-corrosive ambient field condition,with bayonet lock

case design.applicable for pneumatic and hydraulic systems, compressors, engines, pumps,

sprinkles system,building automation system and processing unit where vibration is

concern.

Design Material Casing and Bezel Ring Casing and Bezel Ring, SS304
Sensing Element Copper alloy
connection Brass
Window Tempered glass(SM1SB Series), Plastic(SM1SP Series)
Window gasket Industrial rubber seal
Pointer Black painted aluminium
Dial Plate Aluminium alloy
Mounting Code

L:Bottom entry, W:Bottom with back flange, B:Back entry(centre-back,cower-back)

F:Back with front flange, Z:Back with bracket





Features



Accuracy class 1.6,class 1.0, Wide range vibration application

Stainless steel case design, Knock-down system back and front flange

Crimped lock case design, Over pressure up to 30% of Full Scale

Restrictor screw standard, Excellent vibration resist with liquid filling

Design scale ranges up to 600 bar



Technical Specification



Nominal Size : 63 ,100 , 150mm

Accuracy Class : Class 1 . 6 , Class 1 . 0 ( Φ > 100mm )

Ingress Protection . : IP65 ( Weather tight )

Connection Size : G1 / 4 , G1 / 2 or NPT

Scale Range : Pressure 0 .. 1000 bar , Vacuum - 1 bar .. 0 , Compound - 1 .. 24 bar

Tube Element Shape : P ≤ 100 bar in c tube , P > 100 bar in helicoil

Filling : Dry or liquid filled

Operating Temperature : Ambient temperature - 10 ° .. + 70 ° C , Medium temperature 90 ° C Max .

Temperature Error : Additional error when pressure element tmperature deviates from reference temperature + 20 ° C ( + 68 ° F ) , be ± 0 . 4 % / 10 ° C ( 50 ° F ) rising or falling

Over Pressure Limit 130 % of F . S . P ≤ 100 bar , 115 % of F . S . P > 100bar

Dial Graduation Black graduation on white for single range , Black and red graduation on white for dual ranges
