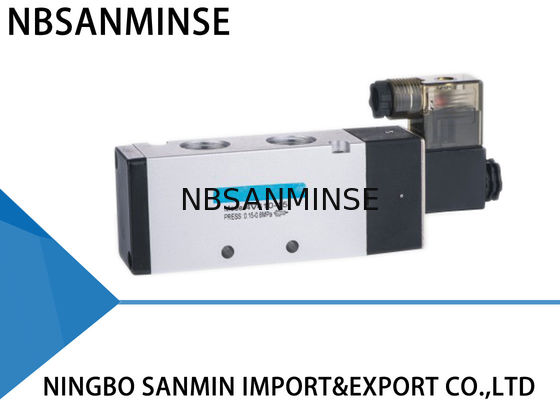

3 Way 2 Position Pneumatic Solenoid Valve , 4V 400 Series Pneumatic Pilot Valve

3 Way 2 Position Pneumatic Solenoid Valve , 4V 400 Series Pneumatic Pilot Valve

    • 3 Way 2 Position Pneumatic Solenoid Valve , 4V 400 Series Pneumatic Pilot Valve
    • 3 Way 2 Position Pneumatic Solenoid Valve , 4V 400 Series Pneumatic Pilot Valve
    • 3 Way 2 Position Pneumatic Solenoid Valve , 4V 400 Series Pneumatic Pilot Valve
  • 3 Way 2 Position Pneumatic Solenoid Valve , 4V 400 Series Pneumatic Pilot Valve

    Product Details:

    Place of Origin: NINGBO
    Brand Name: NBSANMINSE
    Certification: ISO9001
    Model Number: 4V 400 AirTAC Type

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Pc
    Price: Negotiation
    Packaging Details: Plastic Bags , Boxes , Carton , Pallet or As Customer Advice
    Delivery Time: Negotiation
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 8885 pcs year
    Contact Now
    Detailed Product Description
    Medium: Air Action: Internal Pilot
    Pressure: 0 . 15 ~ 0 . 8MPa Temperature: -5 ~ 50 ℃
    Port Size: 1 " Thread: G / NPT
    Position: 5 / 3 , 5 / 2 , 3 / 2 Voltage: DC12V , DC24V , AC24V , AC110V , AC220V , AC380V

    3 Way 2 Position Pneumatic Solenoid Valve , 4V 400 Series Pneumatic Pilot Valve



    4V410 - 15 , 4V420 - 15 , 4V430C - 15 , 4V430E - 15 , 4V430P - 15 , 4A410 - 15 , 4A420 - 15 ,
    4A430C - 15 , 4A430E - 15 , 4A430P - 15




    1, Pilot-oriented mode : Internal pilot or external pilot.
    2, Structure in sliding column mode : good tightness and sensitive reaction.
    3
    , Three position solenoid valves have three kinds of central function for
    your choice.
    4, Double control solenoid valves have memory function.
    5, Affiliated manual devices are equipped to facilitate installation and debugging
    6, Several standard voltage grades are optional.



    Specifications

    Model : 4V410 - 15 , 4V420 - 15 , 4V430C - 15 , 4V430E - 15 , 4V430P - 15 , 4A410 - 15 , 4A420 - 15 ,
    4A430C - 15 , 4A430E - 15 , 4A430P - 15

    A number of pass : Two position five - way Three position five - way

    Effective sectional area : 50mm ² ( CV = 2 . 79 ) 30mm ² ( CV  = 1 . 68 )

    Model : 3V410 - 15 , 3V420 - 15 , 3A410 - 15 , 3A420 - 15

    A number of pass : Two position three-way

    Effective sectional area : 50mm ² ( CV = 2 .  79 )

    Port size : Air inlet = Air outlet = Exhaust = G1 / 2 "

    Working medium : 40 Micron Filtered Air

    Action mode : Internally Plot - Actuated

    The use of pressure : 0 . 15 ~ 0 . 8MPa

    Max . poof pressure : 1.2MPa

    Working temperature : - 5 ~ 50 ℃

    Voltage range : ± 10 % Of Rated Voltage

    Power consumption :  AC : 5 . 5VA  , DC : 4 . 8W

    Insulation & Protection class : Class F . IP65

    Connection form : Line Type Or Terminal Type

    Highest action frequency : 5 cycle / second

    Shortest excitation time : 0.05 second



    Why choose us


    1: Various style for each products and completely series pneumatic products .
    2: Large stock for fast shipping.
    3: High quality with competitive price.
    4: Sample order & small quantity order is acceptable.
    5: Provide free products information.
    6: Reliable quality assured and active after-sell service




    FAQ

    Q: How much is our minimum order quantity ?
    A: Our minimun quantity is 1 Piece .


    Q: Could you offer the free samples ?
    A: Yeah, we could offer the free samples for the massive products .


    Q: What ' s your business scope ?
    A: Our business scope is air cylinder , air source treatment , air solenoid valve , motorize valve , pneumatic valve , quick fitting , etc .


    Q: What ' s your delivery date ?
    A: It depends on the number of orders . Delivery date is 7 - 30 days . If you need emergency products , we can speed up the production of the first arrangement .


    Q: what types of products you can make ?
    A: We can make many kinds of stainless steel materials processing . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .


    Q: Do you company have specialized technical personnel ?
    A: Do you company have specialized technical personnel , they can design the product which the most meet your requirements .




    3 Way 2 Position Pneumatic Solenoid Valve , 4V 400 Series Pneumatic Pilot Valve3 Way 2 Position Pneumatic Solenoid Valve , 4V 400 Series Pneumatic Pilot Valve


    Our products are high quality with 12 month guarantee ,and support paypal payment.
