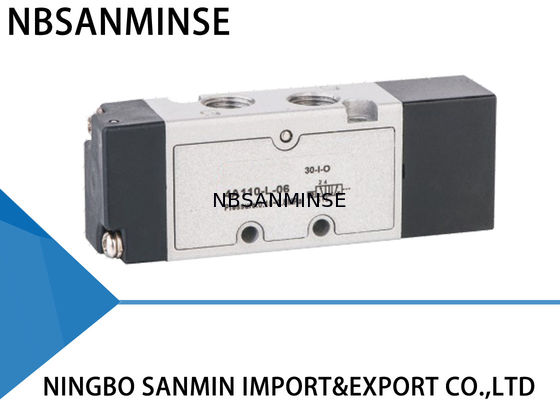

YPC Type 5 Port 3 Way Solenoid Valve Pneumatic Sanmin 4A 100-L Series

YPC Type 5 Port 3 Way Solenoid Valve Pneumatic Sanmin 4A 100-L Series

YPC Type 5 Port 3 Way Solenoid Valve Pneumatic Sanmin 4A 100-L Series

Product Details:

Place of Origin: NINGBO
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: 4A100 - L YPC Type

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pc
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet or As Customer Advice
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Medium: Air Action: External Polit
Pressure: 0. 15 ~ 0. 8MPa Temperature: - 5 ~ 60 ℃
Port Size: M5 × 0 . 8 , 1 / 8 " Voltage: AC220V DC24V
Thread: G / NPT / Etc Position: 3 / 5 , 2 / 5 , 2 / 3

YPC Type 5 Port 3 Way Solenoid Valve Pneumatic Sanmin 4A 100-L Series







4A110–L–M5 , 4A130C-L-M5 / 4A130E-L-M5 , 4A110-L-06 , 4A130C-L-06 / 4A130E-L-06 ,

4A120-L-M5 , 4A130P-L-M5 , 4A120-L-06 , 4A-130P-L-06 , 3A110-L-M5 / 3A120-L-M5 ,

3A110-L-06 / 3A120-L-06


4A Product Feature :



1 . Double air control valves have memory function .

2 . Internal hole adopts special processing technology which has little attrition friction , low start pressure and long service life .

3 . No need to add oil for lubrication .

4 . Integrate with the manifold to save installation space .



3A Product Feature :



1 . Internal hole adopts special processing technology which has little attrition friction , low start pressure and long service life

2 . No need to add oil for lubrication .

3 . Multi – mounting helps to install and apply

4 . Integrate with the manifold to save installation space .

pace .




Specification



Model : 4A110 – L – M5 , 4A130C - L - M5 , 4A130E - L - M5 , 4A110 - L - 06 , 4A130C - L - 06 ,

4A130E - L - 06 , 4A120 - L - M5 , 4A130P - L - M5 , 4A120 - L - 06 , 4A - 130P - L - 06



Position and Way No. : Two - position Five - way , Three - position Five - way



Effective Section Area : 10mm ² ( CV = 0 . 56 ) 7mm ² (CV = 0 . 40 ) 12mm ² ( CV = 0 . 67 )

9mm ² ( CV = 0 . 5 )



Model : 3A110 - L - M5 , 3A120 - L - M5 , 3A110 - L - 06 , 3A120 - L - 06



Position and Way No. : Two - position Three - way



Effective section area : 10mm ² ( CV = 0 . 56 ) 12mm ² ( CV = 0 . 67 )



Port Size : Air Inlet = Air Outlet = Exhaust = M5 × 0 . 8 , Air Inlet = Air Outlet = Exhaust = G1 / 8 ”



Working Medium : 40 Micron Filtered Air



Motion Pattern : External pneumatic actuation



Working Pressure : 0 . 15 ~ 0 . 8MPa



Max . pressure Resistance : 1 . 2MPa



Voltage Range : - 5 ~ 60 ℃



Highest Action Frequency : 5 Cycle / Sec



Life : 20Million


Why choose us



1: Various style for each products and completely series pneumatic products .

2: High quality with competitive price .

3: Customize according to your special request .
4: Provide free products information .

5: One year quality guarantee




FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: What ' s your business scope ?
A: Our business scope is air cylinder , air source treatment , air solenoid valve , motorize valve , pneumatic valve , quick fitting , etc .



Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials processing . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .



Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .




YPC Type 5 Port 3 Way Solenoid Valve Pneumatic Sanmin 4A 100-L SeriesYPC Type 5 Port 3 Way Solenoid Valve Pneumatic Sanmin 4A 100-L Series




Our products are high quality with 12 month guarantee ,and support paypal payment.
