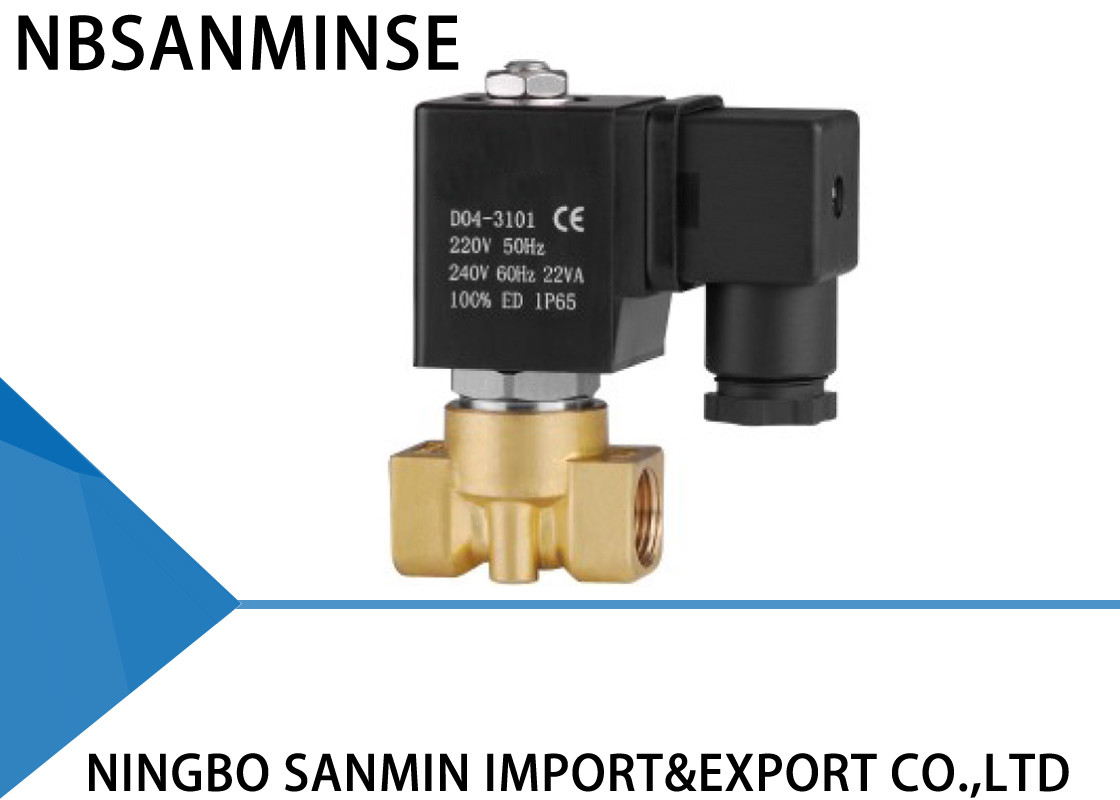

Professional P2 Small Brass Solenoid Valve 3 / 8 " Customized High Reliability

Minimum Order Quantity : 20 Price : Negotiation
Packaging Details : Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice Delivery Time : Negotiation
Payment Terms : L/C, T/T, Western Union Supply Ability : Negotiation
Place of Origin: NINGBO Brand Name: NBSANMINSE
Certification: ISO9001 Model Number: P2 Small Series 2 / 2 - Way

Detail Information

Medium: Water , Hot Water , Air , Gas , Oil Etc Type: Normally Closed
Temperature: 0 ~ 65 ℃ Connection: Thread
Action: Direct Acting Body: Forged Brass , Stainless Steel 316
Pressure: 0 - 13 Kgf / Cm ² Port Size: 3 / 8 "
High Light:

electronic solenoid valve

,

electric solenoid valve

Product Description

Professional P2 Small Brass Solenoid Valve 3 / 8 " Customized High Reliability





Applicability



1 . Fluid temperature must be less than the marked temperature .

2 . Solenoid valve allowed the liquid viscosity , generally under 20 CST , more than 20 CST shall be indicated .

3 . About the working pressure difference , the pipeline high - pressure difference less than 0 . 04MPa should be chosen as Z , 2W ,it is directly acting and direct - action step .
the pipeline high - pressure difference higher than 0 . 04MPa can choose polited type ( differential ) solenoid valve ;
Maximum working pressure difference should be less than the biggest calibration pressure of solenoid valve ; General solenoid valve is a one - way work , so should pay attention to whether there is a contrast pressure , if you have to install the check valve .

4 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid valve , general solenoid valve is better claim to medium cleanness

5 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions permit , please install bypass pipe , easy maintenance ; When there is water drain to customize solenoid valve opening and closing time regulation .



Reliability



Solenoid valve is divided into normally closed and normally open . General choose normally close , power on is open and power off is shut down ; But in the open for a long time and very short close time to choose the normally open type .



Security



1. General solenoid valve is not waterproof , when needs waterproof model , we can be customized .

2. Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure in the pipeline , otherwise life will shorten or other unexpected circumstances .

3. Corrosive liquid should be chosen in all stainless steel type , appropriate chooses the corrosive fluid plastic king ( LF ) solenoid valve .



Economy



There are a lot of solenoid valve can be common use , but on the basis of can satisfy the above three terms , should choose the most economical products





Details



1: 2 / 2 way normally closed , closed when de - energized open when energized .

2: Max pressure tolerance: 15 kgf / cm ²

3: Ambient temp : 0 ~ 65 ℃

4: Flow as the arrow , mounts in any position ; best position is solenoid vertcal and upright direction

5: Only 3 / 8 " connection size , orifice 3 and 4 mm , can be widely used in the corresponding flow and pressure system , replace the same connection size but big orifice valve , can save a lot of cost .

6: Voltage : AC220V / 230V / 240V / 110V / 24V 50 / 60HZ DC24V / 12V

7: Seals : Can choose NBR ` EPDM ` VITON ` to fit to control of different media ;




Why choose us



1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .

4: Provide free products information .
5: Reliable quality assured and active after-sell service
6: One year quality guarantee




FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production

sample,production sample.



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin

.



Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid

valve / electric valve / pneumatic valve and air cylinder products and so on .



Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection

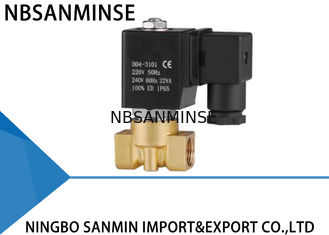

Professional P2 Small Brass Solenoid Valve 3 / 8 " Customized High Reliability 0Professional P2 Small Brass Solenoid Valve 3 / 8 " Customized High Reliability 1
