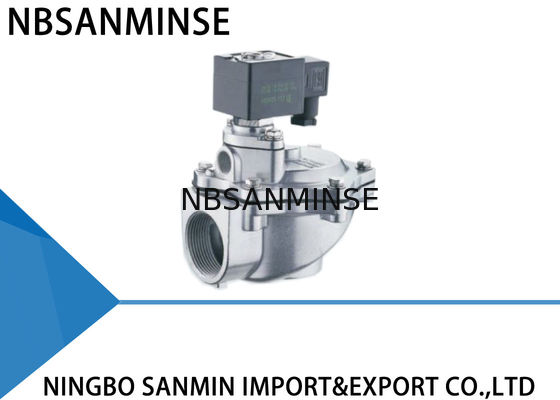

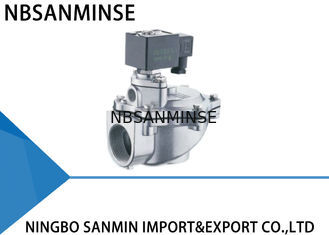

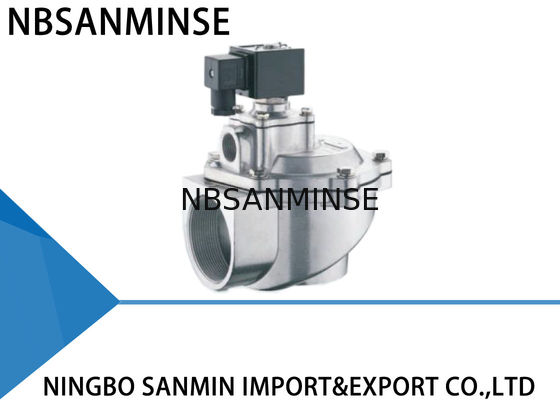

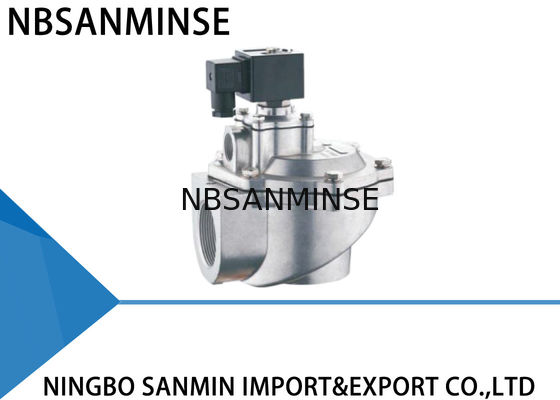

AC 220 Volt Pneumatic Pulse Air Valve With 430FR Stainless Steel Armature ASCO Type

AC 220 Volt Pneumatic Pulse Air Valve With 430FR Stainless Steel Armature ASCO Type

    • AC 220 Volt Pneumatic Pulse Air Valve With 430FR Stainless Steel Armature ASCO Type
    • AC 220 Volt Pneumatic Pulse Air Valve With 430FR Stainless Steel Armature ASCO Type
    • AC 220 Volt Pneumatic Pulse Air Valve With 430FR Stainless Steel Armature ASCO Type
  • AC 220 Volt Pneumatic Pulse Air Valve With 430FR Stainless Steel Armature ASCO Type

    Product Details:

    Place of Origin: NINGBO
    Brand Name: NBSANMINSE
    Certification: ISO9001
    Model Number: QA - Z - 40S / 50S / 62S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiation
    Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
    Delivery Time: Negotiation
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: Negotiation
    Contact Now
    Detailed Product Description
    Pressure: 0 . 3 ~ 0 . 6 MPa Temperature: - 25 ~ 60 ℃
    Relative Humidity: ≤ 85 % Medium: Clean Air
    Voltage: AC220V / DC24V / AC110V / AC24V Diaphragm: Double Diaphragm
    Diameter: 1 1 / 2 " 2 " / 2 1 / 2 " Armature: 430FR Stainless Steel

    AC 220 Volt Pneumatic Pulse Air Valve With 430FR Stainless Steel Armature ASCO Type





    Usage



    Electromagnetic valve ( Also called diaphragm valve ) is the” switch “for compressed air in the dust clean blowing system of the pulse bag filter . Controlled by the output signals of the pulse jet control device , it makes dust clean to the filter bags cell by cell to keep the resistance of the baghouse within the set range and thus guarantee the processing functions and the dust collecting efficiency of the baghouse .



    Z type electromagnetic pulse valves is a right angle valve , with the 90 degree , angle between the inlet and outlet , which is suitable for the installation connection between the gas dome and the baghouse blow tube provide good air flow and dust clean pulses satisfying the requirements .



    Working Principle



    The electromagnetic pulse diaphragm valve is composed of two gas cells . When the compressed air is connected , it comes into the back bags cell though the orifice , the pressure in the back gas cell pushes the diaphragm against the outlet of the valve and the electromagnetic valve stays in the “closed” condition .

    When the electromagnetic pulse valve returns to its original position .

    The air escape of the back gas cell closes and the pressure in the back gas cell cell rises , which pushes the diaphragm closely again .



    The electrical signals from the pulse jet control device move the armature of the electromagnetic pulse valve . The air escape of the back gas cell opens and the back bag gas cell loses pressure quickly , thus the diaphragm moves back and the compressed air blows through the valve outlet . The electromagnetic pulse valve comes into the “open” condition .




    Working Principle



    The electromagnetic pulse diaphragm valve is composed of two gas cells . When the compressed air is connected , it comes into the back bags cell though the orifice , the pressure in the back gas cell pushes the diaphragm against the outlet of the valve and the electromagnetic valve stays in the “closed” condition .



    When the electromagnetic pulse valve returns to its original position .

    The air escape of the back gas cell closes and the pressure in the back gas cell cell rises , which pushes the diaphragm closely again .



    The electrical signals from the pulse jet control device move the armature of the electromagnetic pulse valve . The air escape of the back gas cell opens and the back bag gas cell loses pressure quickly , thus the diaphragm moves back and the compressed air blows through the valve outlet . The electromagnetic pulse valve comes into the “open” condition .




    Material Construction



    Body ADC12 die cast
    Armature 430FR stainless steel
    Diaphragm Nitrile or viton
    Spring 321 Stainless steel
    Fasteners 302 Stainless steel

    AC 220 Volt Pneumatic Pulse Air Valve With 430FR Stainless Steel Armature ASCO TypeAC 220 Volt Pneumatic Pulse Air Valve With 430FR Stainless Steel Armature ASCO TypeAC 220 Volt Pneumatic Pulse Air Valve With 430FR Stainless Steel Armature ASCO TypeAC 220 Volt Pneumatic Pulse Air Valve With 430FR Stainless Steel Armature ASCO TypeAC 220 Volt Pneumatic Pulse Air Valve With 430FR Stainless Steel Armature ASCO Type
