Pneumatic Circular Double Disc Valve Wearproof Cast Iron Body SMWZ644 -DNA - R

Pneumatic Circular Double Disc Valve Wearproof Cast Iron Body SMWZ644 -DNA - R

Pneumatic Circular Double Disc Valve Wearproof Cast Iron Body SMWZ644 -DNA - R

Product Details:

Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: SMWZ644 (1)-10 (2)-DNA-(3)

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet or As Customer Advice
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Nominal Pressure: 1.0 ( MPa ) Leakage Test Pressure: 1.1 ( MPa )
Temperature: ≤200℃ Maximum Test Pressure: 1.5 ( MPa )
DN: 65 , 80 ,100 , 125 , 150 , 175 , 200 , 225 , 250 , 300 Valve Body: Cast Iron

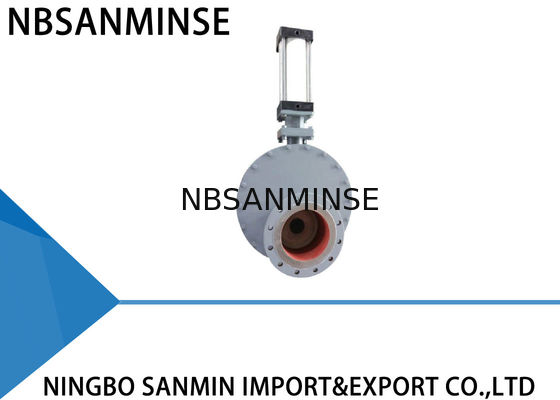

Pneumatic Circular Double Disc Valve Wearproof Cast Iron Body SMWZ644 -DNA - R








Main Perfomance



Model WZ644-10Q double-disc valve uses a double -disc sealing and sealing surfaces are made from wear-resistant alloy or ceramic. The seal is 100% airtight and the valve achieves a long service life , particularly in applications . Consequently , overall system reliability is increased dramatically .



Operating Performance



When air is introduced into the upper cylinder port , the piston rod pushes the double-disc down and the valve is closed . When air is introduced into the lower cylinder port , the piston rod pushes the double-disc up and the valve is opened . Compression spring being placed between the discs and seal ring , forces the discs the discs against the seal ring , and also allow for discs vertical movement , which helps to compensate the thermal expansion and contraction of the parts and ensure an airtight seal under all conditions . When actuating the valve , the double-disc rotates to lap and polish the sealing surfaces . When product flows through the valve , any material entering the inner chamber is removed by vortex flow action . Hence , the valve is self-cleaning . Additional air purging can be provided to ensure clean-in-place performance . All these characteristics guarantee a long service lofe for the valve and increase the reliability of your system .



Applications



Any dust , powder , and granular products in coal-fired power plants , smelters , iron and steel plants , pharmaceutical and chemical industries .



Technical Parameters



Maximum-Operating Pressure : 1.0MPa



Maximum Test Pressure : 1.5MPa



Operating Temperature : <=200℃



Leakage Test Pressure : 1.1MPa





Installation and Application



1. Prior to installation , make sure the pneumatic actuator is free of any defects like breakage and concave .



2. Make sure the joint flange , structural length , maximum operating pressure and nominal diameter are accorded with requirements .



3. During installation , not allowed to readjust studs and nuts that have been fastened originally . Align the center of two pipelines and valve diameter to be coaxial . Keep the flange surface flat . Uniformly apply force to tighten the bolt .



4. After installation , introduce air from the upper and lower cylinder ports to see whether the valve can be normally opened or closed .



5. Cheek the control switch ( if existing ) to see whether it is reliably fastened , whether its parameter is accorded with access power source , and whether it can correctly work under full opening and full closing conditions .







Troubleshooting Method



Troubles Cause Troubleshooting Method
Leakage in sealing surface Dirt between disc and sealing surface Remove the dirt
Damage to seal ring pairs Repair or replace
Leakage in flange joint The bolt is unevenly screwed Evenly screw the bolt
Damage to the flange surface Repair the flange surface
Damage to the spacer Replace the spacer
Valve fails to be correctly opened or closed Dust deposit Remove dust regularly
Insufficient air pressure , severe leakage Repair air supply pipeline
Pneumatic components have been aged and lost efficlency Replace the damaged components
Leakage of stuffing box The stuffing has been aged and severely worn Replace the stuffing





Installation dimension , outline drawing







Main Parts and Materials



Item Name Material Item Name Material
1 Valve body Ductile iron 5 Connecting T-piece Cast steel
2 Side valve body Ductile iron 6 End cap 45#Steel
3 Sealing ring Carbon steel + special alloy 7 Linking neck Hodular cast iron
4 Dise Carbon steel + special alloy 8 Pneumatic actuator aluminum Aluminum cylinder





Pneumatic Circular Double Disc Valve Wearproof Cast Iron Body SMWZ644 -DNA - R
