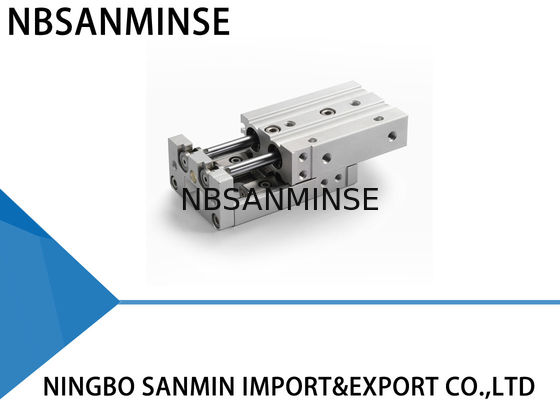

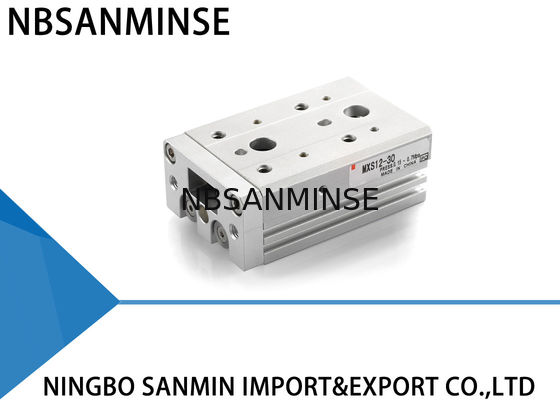

MXS Pneumatic Air Cylinder Air Slide Table , Double Acting Pneumatic Cylinder

Minimum Order Quantity : 20 Price : Negotiation
Packaging Details : Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice Delivery Time : Negotiation
Payment Terms : L/C, T/T, Western Union Supply Ability : Negotiation
Place of Origin: China Brand Name: NBSANMINSE
Certification: ISO9001 Model Number: MXS

Detail Information

Broze Size: 6 , 8 , 12 ,16 , 20 , 25 Stroke: 10 , 20 , 30 , 40 , 50 , 75 , 100 , 125 , 150
Fluid: Air Action: Double Acting
Pressure: 0 . 15 ~ 0 . 7 MPa Temperature: - 10 To 60 ℃
High Light:

smc locking cylinder

,

guided pneumatic cylinder

Product Description

MXS SMC Pneumatic Cylinder Air Slide Table , Double Acting Pneumatic Cylinder








Specifications



Fluid : Air

Action : Double acting

Operating pressure : 0.15 to 0.7MPa

Proof pressure : 1.05 MPa

Ambient and fluid temperature : - 10 to 60℃

Piston speed : 50 to 500 mm/s

Cushion : Rubber bumpe ( Standard, With stroke adjuster )

Shock absorber ( Optional )

Lubrication : Non-lube

Auto switch (Option) : Reed auto switch (2wire, 3-wire)

Solid state auto switch (2-wire, 3-wire)

2-color indication solid state auto switch (2-wire, 3-wire)

Stroke length tolerance : +1mm

0mm




Option



Adjuster options With stroke adjuster Extension end ( AS ) Stroke adjustment range 0 to 5 mm
Retraction end ( AT )
Adjuster on both ends ( A )
With shock absorber Extension end ( BS ) W / shock absorber is not available with the MXS6 series .
Retraction end ( BT )
Absorber on both ends ( B )
Functional options With buffer ( F ) W / end lock is not available with the MXS 6 series




Theoretical Output



Bore Size ( mm ) Rod Size ( mm ) Operating direction Piston area ( mm ² ) Operating pressure ( MPa )
0 . 2 0 . 3 0 . 4 0 . 5 0 . 6 0 . 7
6 3 OUT 57 11 17 23 29 34 40
IN 42 8 13 17 21 25 29
8 4 OUT 101 20 30 40 51 61 71
IN 75 15 23 30 38 45 53
12 6 OUT 226 45 68 90 113 136 158
IN 170 34 51 68 85 102 119
16 8 OUT 402 80 121 161 201 241 281
IN 302 60 91 121 151 181 211
20 10 OUT 628 126 188 251 314 377 440
IN 471 94 141 188 236 283 330
25 12 OUT 982 196 295 393 491 589 687
IN 756 151 227 3021 378 454 529




FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: What ' s your business scope ?
A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve ,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick coupler , etc .



Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .



Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection



Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.




Why choose us


1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .

5: Reliable quality assured and active after-sell service
6: One year quality guarantee
