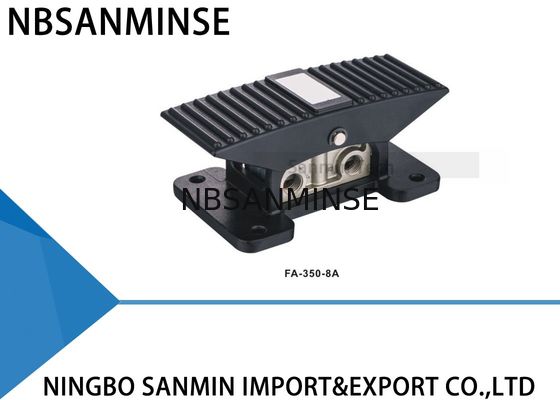

FA350-8A Pneumatic Mechanical Valve , Mechanical Control Valve 5 Port 3 Way

FA350-8A Pneumatic Mechanical Valve , Mechanical Control Valve 5 Port 3 Way

FA350-8A Pneumatic Mechanical Valve , Mechanical Control Valve 5 Port 3 Way

Product Details:

Place of Origin: China
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: FA350-8A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pc
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet or As Customer Advice
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 PCS / Year
Contact Now
Detailed Product Description
Port Size: Rc 1 / 4 Position: Three Position Five Way
Temperature: 5 - 60 ℃ Pressure: 0 . 2 ~ 0 . 8 MPa

FA350-8A Pneumatic Mechanical Valve , Mechanical Control Valve 5 Port 3 Way








Fesatures



The 350 Footcontrol valve has three ways to control the air flow . ( mid one in the closed state , Other two in the ventilated status ) , good sealing performance , high flow , low noise , compact structure , beautiful apperance .




Specifications



Model : FA – 350

Port Size : 8A

* Port Size : Rc 1 / 4

Port : 5

Position : 3

Working Medium : Filtered Compressed Air

Ambient and media temperature : 5 – 60 ℃

Ensured Pressure Resistance : 1 . 0 MPa ( 10kgf / cm ² )

Working Pressure : 0 . 2 – 0 . 8 MPa (2 – 8 kgf / cm ² )

Effective Sectional Area : 8 mm ²



Port Size G , NPT , available in addition




Flowmeter



P . ( MPa ) P2 Q ( m ³ / h )
0 . 8 0 . 7 28
0 . 7 0 . 6 24
0 . 6 0 . 5 22 . 2
0 . 5 0 . 4 20 . 2
0 . 4 0 . 3 18 . 2
0 . 3 0 . 2 15 . 8
0 . 2 0 . 1 13 . 2






Applications

FV series foot pedal valve manual operated use for fast direction change of anywhere and anytime necessary function required by manual operating,Due to easy and flexible operating,it was widely use in the Pneumatic system





Why choose us


1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .

5: Reliable quality assured and active after-sell service
6: One year quality guarantee



FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .



Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.
