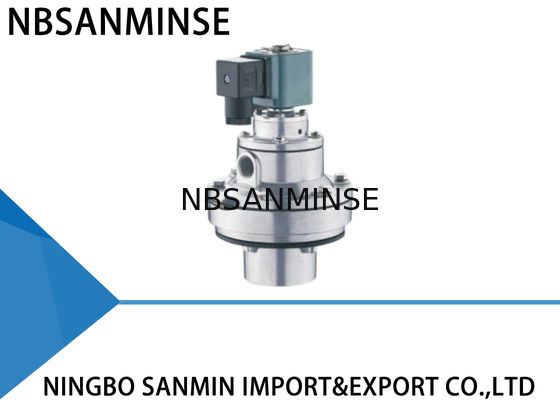

Clean Air Embedded Double Diaphragm Pulse Valve 321 Stainless Steel Spring

Clean Air Embedded Double Diaphragm Pulse Valve 321 Stainless Steel Spring

Clean Air Embedded Double Diaphragm Pulse Valve 321 Stainless Steel Spring

Product Details:

Place of Origin: China
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: QD - Y - 40S / 50S / 62S / 76S / 102S

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Pressure: 0 . 2 ~ 0 . 6MPa Temperature: - 25 ~ 60 ℃
Relative Humidity: ≤ 85 % Working Medium: Clean Air
Voltage: AC220V / DC24V / AC110V / AC24V Customized Diaphragm Life: Over One Million Cycles

QD - Y - 40S / 50S / 62S / 76S / 102S SBFEC Similar Type Embedded Double Diaphragm Type





Technical Parameter



  Right angle Embedded Inline Plug
Design-pressure 0.3~0.8MPa 0.2~0.8MPa 0.3~0.8MPa 0.2~1.0MPa
Working-pressure 0.3~0.6MPa 0.2~0.6MPa 0.3~0.6MPa 0.2~0.6MPa
Ambient Temperature -25~60℃ Customized for lower or higher temperature
Relative Humidity ≤85%
Working Medium Clean Air
Voltage AC220V/DC24V/AC110V/AC24V Customized
Protection Class IP65
Diaphragm Life Over One Million Cycles
Cv/Kv Call us for detail





Material Construction



Body : ADC12 die cast

Armature : 430 FR stainless steel

Diaphragm : Nitrile or Viton

Spring : 321 stainless steel

Fasteners : 302 stainless steel

Good quality membranes shall be selected and used for all the valves , with each part checked in each manufacturing procedure , and put into the assembly ling conforming to all the procedures , Every finished valves shall be taken the electriferous blowing test .







Use period Failure phenomena Possible Reason Troubleshooting
During installation and commissioning The valves cannot all be opened, but the leading part does act. Check the gas dome pressure to see if it is too low. Check the leakage
Some valves do not work, but the others are normal. Check the valve coil connection and coil Replace the accessories
The valves cannot all be closed. There is leakage. There is no way to establish a gas dome. Y-valve. Some valves for the same gas dome are leaking, thus causing leakage for all the valves. Check the leakage
Z-valve. The valve inlet and blowing muzzle are installed backwards. Re-install
Some valves cannot be closed. There is leakage. There is some dirt or debris on the membrane, ii is blocking the moving iron core. Clean the membrane and check that the membrane is complete. Check the moving iron core and air lock.
A valve closing is slowly. The membrane orifice is blocked. Dredge the membrane orifice
During use period

Some valves are leaking. The membrane cannot close tightly and the valve is always open a

little.

There is some dirt or debris on the membrane, the leading part is damaged. Moving iron core is blocked. Clean the membrane and check that the membrane piece is complete. Check the moving iron core and the air lock. Replace the accessories if necessary.
Coil is hot and burned out. It has been turned on for too long. Check the working condition of the control system.
Voltage exists but the valve does not operate. Membrane is damaged and the orifice is blocked. Replace the accessories in time.
Ambient temperature is below -20℃. The valve is leaking and cannot open. Ambient temperature is too low and here is frost in the valve. Pay attention to insulation and maintaining proper temperatures.



Why choose us


1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Customize according to your special request .



FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .



Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .



Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection



Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.
