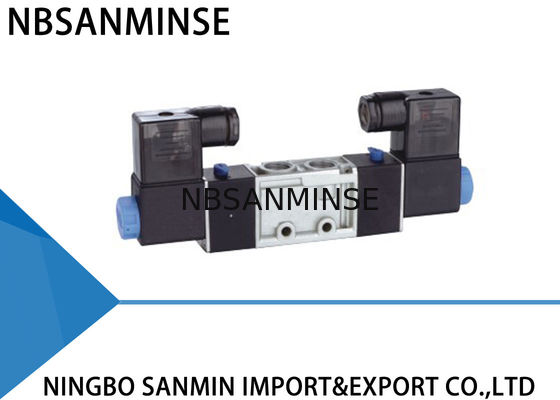

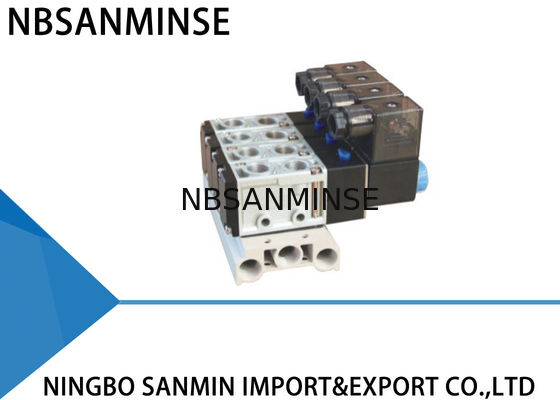

ST Five Port G1 / 4 " Thread Pipe Solenoid Valve , Pneumatic Directional Control Valve

ST Five Port G1 / 4 " Thread Pipe Solenoid Valve , Pneumatic Directional Control Valve

    • ST Five Port G1 / 4 " Thread Pipe Solenoid Valve , Pneumatic Directional Control Valve
    • ST Five Port G1 / 4 " Thread Pipe Solenoid Valve , Pneumatic Directional Control Valve
    • ST Five Port G1 / 4 " Thread Pipe Solenoid Valve , Pneumatic Directional Control Valve
    • ST Five Port G1 / 4 " Thread Pipe Solenoid Valve , Pneumatic Directional Control Valve
  • ST Five Port G1 / 4 " Thread Pipe Solenoid Valve , Pneumatic Directional Control Valve

    Product Details:

    Place of Origin: China
    Brand Name: NBSANMINSE
    Certification: ISO9001
    Model Number: STV520 Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiation
    Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
    Delivery Time: Negotiation
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: Negotiation
    Contact Now
    Detailed Product Description
    Working Medium: 40 Micron Filtered Air Acting Type: Internal Pilot Type
    Thread Pipe: Air Inlet = Air Outlet = 1 / 4 " Air Exhaust = 1 / 8 " The Position Counting: Two - Position Five - Port , Three - Position Five - Port
    Temperature: - 5 ~ 60 ℃ Sectional Area: 16mm² ( Cv = 0 . 89 ) , 12mm² ( Cv = 0 . 67 )

    ST Five Port G1 / 4 " Thread Pipe Solenoid Valve , Pneumatic Control Valve





    Ordering Code :



    ST



    V : Solenoid Valve

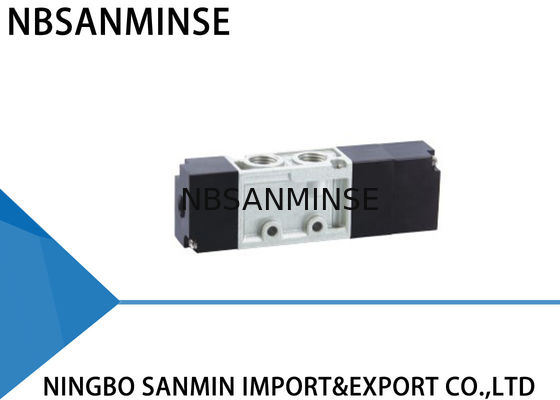

    A : Pneumatic Control Valve



    Specification

    5 : Five Port



    Series Code

    2



    Coil and Places

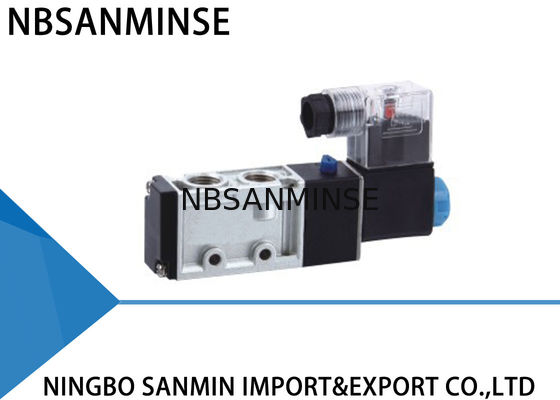

    1 : Single - Coil Double - Position

    2 : Double - Coil Double - Position

    3C : Double - Coil Three - Position Close Type

    3E : Double - Coil Three - Position Exhaust Type

    3P : Double - Coil Three - Position Pressure Type



    Thread Pipe

    08 : G1 / 4



    Standard Voltage

    DC12V

    DC24V

    AC24V 50/60Hz

    AC110V 50/60Hz

    AC220V 50/60Hz

    AC380V 50/60Hz



    Specification



    Model STV521 - 08 STV522 - 08 STV523C - 08 STV523E - 08 STV523P - 08
    STA521 - 08 STA522 - 08 STA523C - 08 STA523E - 08 STA523P - 08
    Working Medium 40 Micron Filtered Air
    Acting Type Internal Pilot Type
    Thread Pipe Air Inlet = Air Outlet = 1 / 4 “ Air Exhaust 1 / 8 “
    The Position Counting Two – Position Five Port Three – Position Five - Port
    Operating Temperature ( ℃ ) - 5 ~ 60 ℃
    Sectional Area 16mm² ( Cv=0.89 ) 12mm² ( Cv=0.67 )
    Working Pressure ( MPa ) 0.15 ~ 0.8 MPa
    Max . Pressure Resistance ( MPa ) 1.2MPa
    Protection Class IP65
    Max . Action Frequency 5 Cycles / Second 3 Cycles / Second
    Voltage Range - 15 % ~ + 10 %
    Shortest Excitation Time 0 . 05 Second





    Why choose us


    1: Various style for each products and completely series pneumatic products .
    2: Large stock for fast shipping .
    3: High quality with competitive price .
    4: Sample order & small quantity order is acceptable .
    5: Customize according to your special request .
    6: Provide free products information .



    FAQ



    Q: How much is our minimum order quantity ?
    A: Our minimun quantity is 1 Piece .



    Q: What ' s your delivery date ?
    A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .



    Q: What is the price of the product ?
    A: Our prices are based on the size and type of material , if you can give me the information ,
    then we can give you an estimated price is for reference only . We can do any size and any desgin .



    Q: what types of products you can make ?
    A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .



    Q: Can the product be made with our logo and brand ?
    A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.
