Plastic Brass Solenoid Valve Normally Closed Direct Acting R 1/4" Quick Connected Pipe

Minimum Order Quantity : 20 Price : Negotiation
Packaging Details : Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice Delivery Time : Negotiation
Payment Terms : L/C, T/T, Western Union Supply Ability : Negotiation
Place of Origin: NINGBO Brand Name: NBSANMINSE
Certification: ISO9001 Model Number: SMLC

Detail Information

Acting: Direct Acting Response Time: 0 ~ 5 Msel
Fluid Media: Water Fluid Temp: 0 ~ 100℃
Ambient Temp: -10 ~ +40℃ Voltage: AC220V , AC110V , DC24V
Lead Length: 30CM (12") Port Size: R1/4"
High Light:

magnetic solenoid valve

,

electronic solenoid valve

Product Description

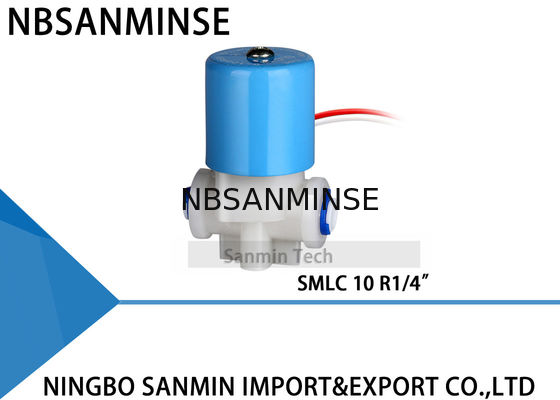

SMLC 10 Series Water Dispenser Plastic Solenoid Electric Valve Normally Closed Direct Acting R 1/4" Quick Connected Pipe

SMLC10

Specification
Direct acting , Normally Closed
Response time : 0-5Msel
Upright direction , Fixing Screw M5

Using
Fluid media water
Fluid Temp : 0℃ to 100℃
Ambient Temperature : -10℃ to 40℃

Characteristic
Power consumption : AC6.8VA (HOLD) DC5W
Voltage : AC24V 110V 220V , DC24V
Voltage Tolerance -10% to + 10 %
Coil Class : Class B 130
Duty cycle : 100%
Lead length : 30cm (12")

Component Material
Plunger : IG117
Seals : EPDM
Body Material : PP white
Shading Ring : Red copper

Technical Parameters

Quick Connected Pipe Orifice CV Operating Pressure Model Code
MIN MAX-AC MAX-DC
R1/4” (φ6.35) 2.5(3/32) 0.21 0 120 120

SMLC10



 Plastic Brass Solenoid Valve Normally Closed Direct Acting R 1/4" Quick Connected Pipe 0

Why choose us


1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .

3: Sample order & small quantity order is acceptable .
4: Customize according to your special request .

5: Reliable quality assured and active after-sell service
6: One year quality guarantee




FAQ


Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .


Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.


Q: What ' s your business scope ?
A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve ,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick coupler , etc .


Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .


Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection


Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.
