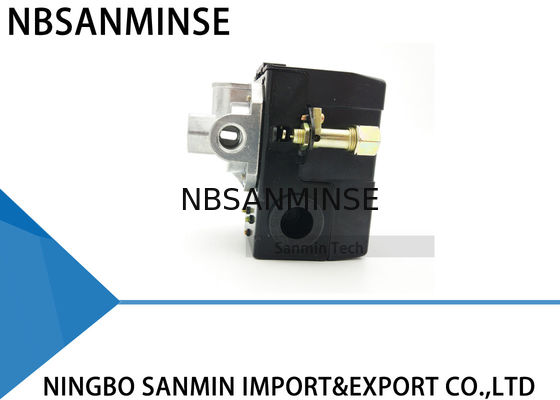

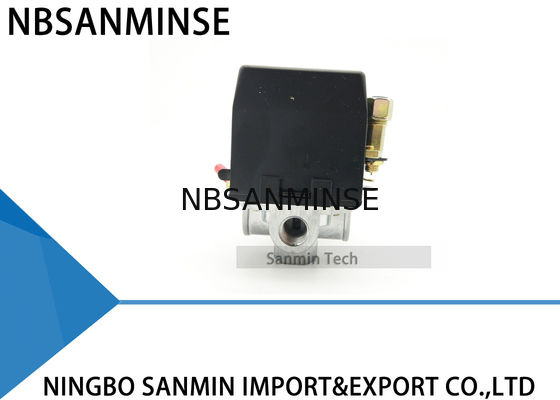

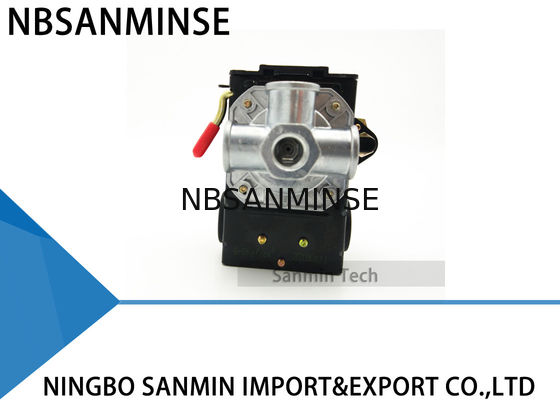

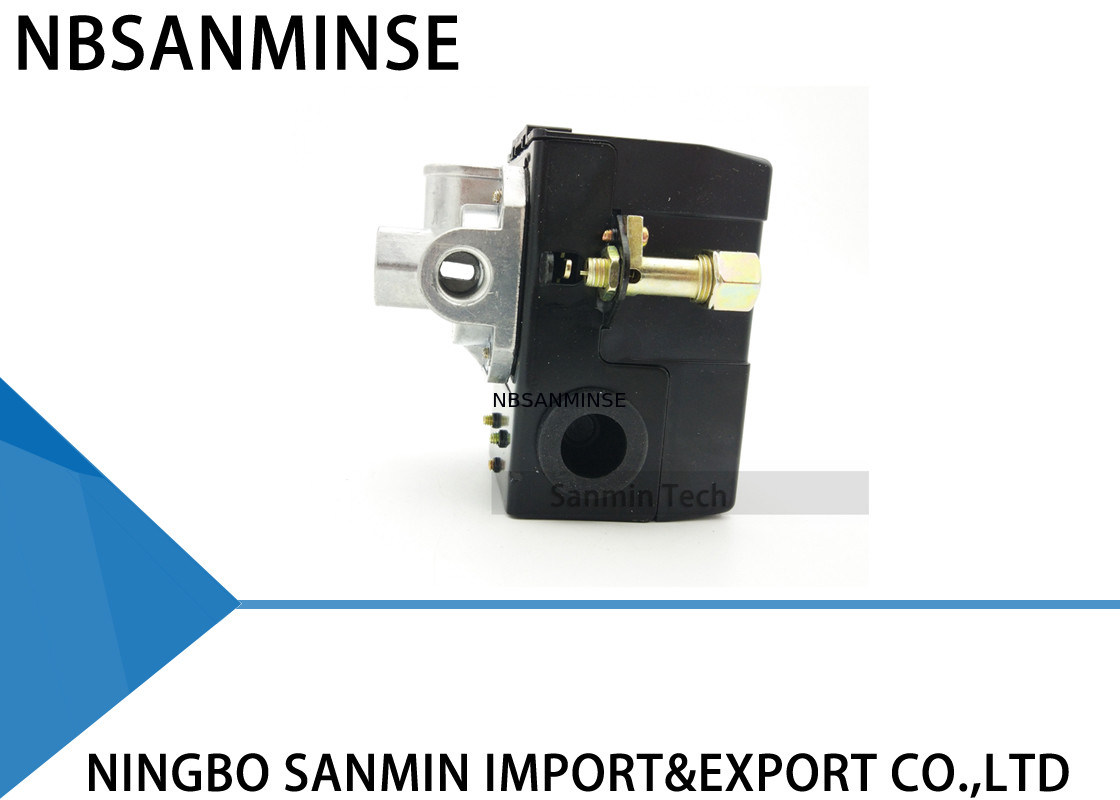

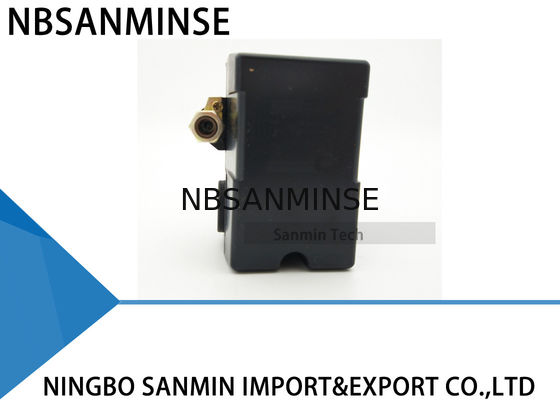

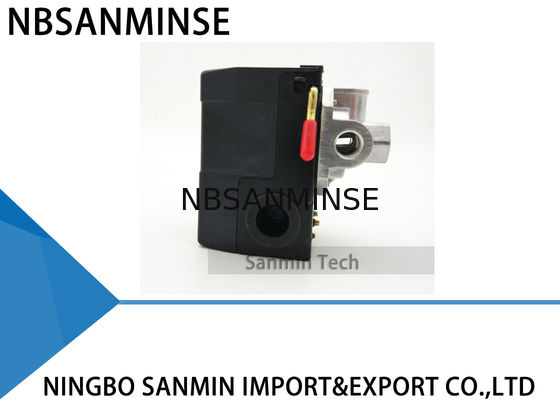

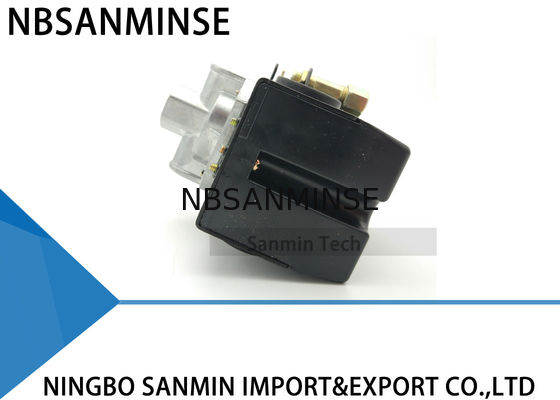

NBSANMINSE SMF10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch

    • NBSANMINSE SMF10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch
    • NBSANMINSE SMF10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch
    • NBSANMINSE SMF10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch
    • NBSANMINSE SMF10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch
    • NBSANMINSE SMF10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch
    • NBSANMINSE SMF10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch
  • NBSANMINSE SMF10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch

    Product Details:

    Place of Origin: NINGBO
    Brand Name: NBSANMINSE
    Certification: CE
    Model Number: SMF10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiation
    Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
    Delivery Time: Negotiation
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: Negotiation
    Contact Now
    Detailed Product Description
    Features: Easy Mounting Warranty: 12 Months
    Switch Type: Pressure Switch

    NBSANMINSE SMF10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch





    ON>OFF is NO , ON<OFF is NC

    The images shown are not all the actual item and are for your reference only

    IMG_20180117_144136.1__IMG_20180117_144132.1__IMG_20180117_144141.1__IMG_20180117_144145.1__IMG_20180117_144150.1__IMG_20180117_144218.1__

    G1-4 = G 1/4 "
    NPT1-4 = NPT 1/4"

    Normally with short handle ,vertical design,female thread,if special request,please make a memo to us during payment.

    The SMF10 pressure switches are used to regulate the tank pressure between two preset values on small (up to 175psi) electrically driven air compressors. They are available with an unloader valve, which prevents compressors from starting under load, and an auto-off disconnect lever for manual cut off the compressor. A four port manifold style is available which provides a means for easy mounting of valves and gauges.



    MODEL
    Min ON (Cut-In) PSI
    Max Off
    (Cut-Out) PSI
    Differential
    PSI
    Factory Setting PSI
    Electrical Rating
    Pipe Fittings
    Contact Arrangement
    120VAC
    240VAC
    SMF10-1H1
    25
    100
    20-30
    50-80
    20A
    12A
    NPT 1/4 Male or Female NPT
    NC
    SMF10-1H2
    35
    150
    30-40
    85-115
    20A
    12A
    1/4" Male or Female NPT
    NC
    SMF10-1H3
    50
    175
    35-55
    110-150
    20A
    12A
    1/4" Male or Female NPT
    NC
    SMF10-4H1
    25
    100
    20-30
    50-80
    20A
    12A
    1/4" Female NPT (4 Port)
    NC
    SMF10-4H2
    35
    150
    30-40
    85-115
    20A
    12A
    1/4" Female NPT (4 Port)
    NC
    SMF10-4H3
    50
    175
    35-55
    110-150
    20A
    12A
    1/4" Female NPT (4 Port)
    NC

    MODEL
    Min ON (Cut-In) PSI
    Max Off
    (Cut-Out) PSI
    Differential PSI
    Factory Setting PSI
    Electrical Rating
    Pipe Fittings
    Contact Arrangement
    120VAC
    240VAC
    SMF10A-1H1
    25
    100
    20-30
    50-80
    26A
    26A
    NPT 1/4 Male or Female NPT
    NC
    SMF10A-1H2
    35
    150
    30-40
    85-115
    26A
    26A
    1/4" Male or Female NPT
    NC
    SMF10A-1H3
    50
    175
    35-55
    110-150
    26A
    26A
    1/4" Male or Female NPT
    NC
    SMF10A-1H4
    70
    200
    40-55
    130-175
    26A
    26A
    1/4" Male or Female NPT
    NC
    SMF10A-4H1
    25
    100
    20-30
    50-80
    26A
    26A
    1/4" Female NPT (4 Port)
    NC
    SMF10A-4H2
    35
    150
    30-40
    85-115
    26A
    26A
    1/4" Female NPT (4 Port)
    NC
    SMF10A-4H3
    50
    175
    35-55
    110-150
    26A
    26A
    1/4" Female NPT (4 Port)
    NC
    SMF10A-4H4
    70
    200
    40-55
    130-175
    26A
    26A
    1/4" Female NPT (4 Port)
    NC

    Approval: UL, CSA, TUV CE, CCC
    G1/4 (BSP 1/4) Male or Female Pipe Fittings are available.
    Conversion: 1Kgf/cm2 = 14.2PSI , 1bar = 14.5PSI


    Why choose us


    1: Various style for each products and completely series pneumatic products .
    2: Large stock for fast shipping .

    3: Provide free products information .
    4: Reliable quality assured and active after-sell service
    5: One year quality guarantee
    6: High quality with competitive price .



    FAQ



    Q: How much is our minimum order quantity ?
    A: Our minimun quantity is 1 Piece .



    Q: Could you offer the free samples ?
    A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



    Q: What ' s your delivery date ?
    A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .



    Q: What is the price of the product ?
    A: Our prices are based on the size and type of material , if you can give me the information ,
    then we can give you an estimated price is for reference only . We can do any size and any desgin .



    Q: what types of products you can make ?
    A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .
