FC Type Female Connector Stainless Steel 316L Tube Fitting Plumbing Fitting High Quality Sanmin

FC Type Female Connector Stainless Steel 316L Tube Fitting Plumbing Fitting High Quality Sanmin

FC Type Female Connector Stainless Steel 316L Tube Fitting Plumbing Fitting High Quality Sanmin

Product Details:

Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: FC

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Type: Female Connector Standard Or Nonstandard: Standard
Material: Stainless Steel 316L Pressure: 3000 Psi

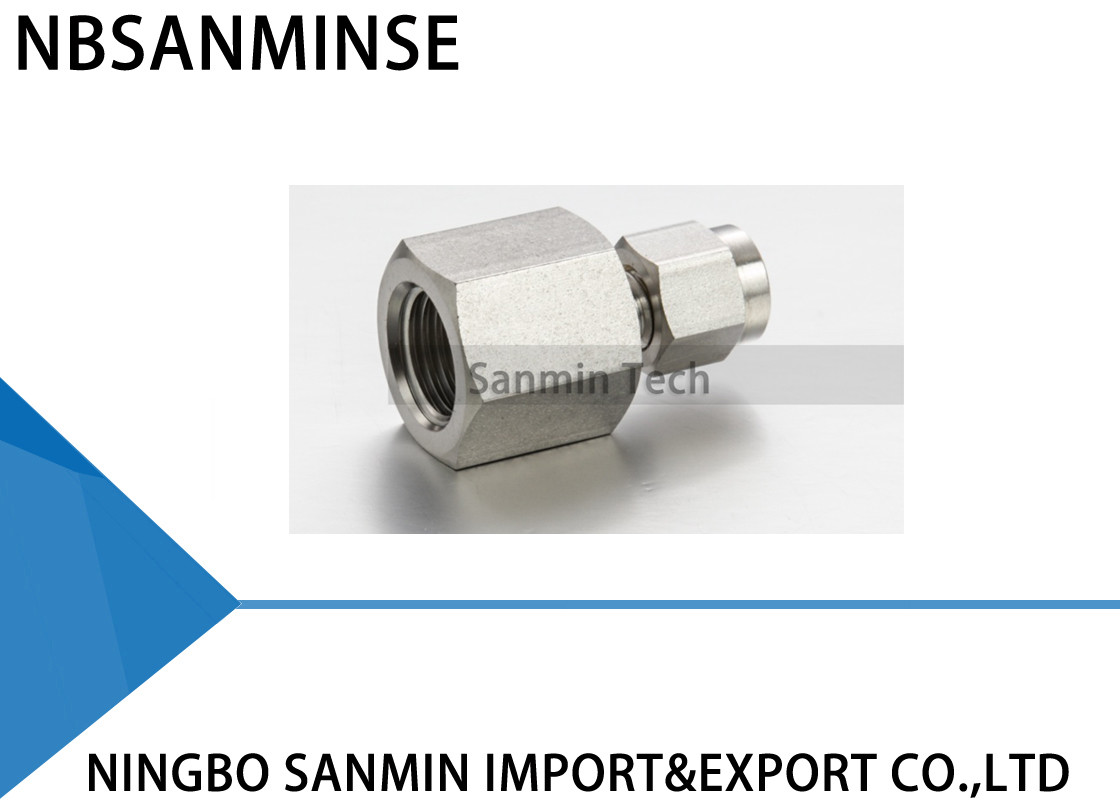

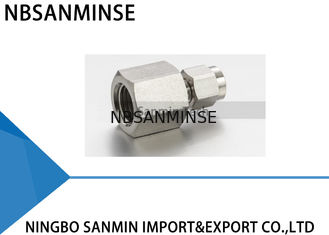

FC Type Female Connector Stainless Steel 316L Tube Fitting Plumbing Fitting High Quality Sanmin





Tube Fittings Description

The tube fitting is a mechanism used both to seal and to grip tubing . The mechanical advantage and geometry of this kind of fitting produces a leak – tight assembly .
To assemble , simply insert the tube into the complete assembly until the tube bottoms – out against the shoulder of the fitting body . The two ferrules are driven forward between the nut and fitting body using the mechanical force created by rotating the nut clockwise . The Back ferrule is driven against the tapered rear of the front ferrule is driven by force into the tapered mouth of the body .
The rear ferrule is swaged radially inwards on the tube while lifting the front ferrule out to form a full – faced seal on the tapered surface of the body .
The 1-1/4 Turn of the nut from the hand tight position assures consistent drive of the sealing members . This ensures an effective seal against high pressure as well as ultra high vacuum conditions .

Tube cutting

Two different methods can be used to cut tubes :
1 . Tube Cuter
2 . Hacksaw

Hacksaw Cutting

In order to cut the tube with a hacksaw and get square ends , the tube must be cut with guide blocks
This method of cutting necessitates deburring of the tube ends.

Tube Handling

Scratches on the tube might cause leaks . it is , therefore , important to handle the tube carefully to reduce the risk of leaks .

Some Recautions to be taken

1.Tubes must not be dragged on the floor .
2.Tubes must not be dragged out of a tubing rack , especially in case of large OD tubes


Inspection Tubing

Use : This is a “ No- Go ” Gauge and should be used as follows :
Make up to fitting according to the following instructions : 1/4 inch ( 6mm ) , 3/8 inch , 1/2 inch ( 12mm ) – make up 1-1/4 turns from finger tight . Check gap between nut and body , using the appropriate sized gauge . If the gauge slides easily into the gap , tighten the nut further until gauge can not enter the gap

High Safety

In applications where severe conditions and high pressure exist , we recommend the following installation procedures :
1. Check that the nut is finger tight
2. Insert the tube ( Up to the shoulder )
3. Rotate the nut with a wrench until the tube does not rotate freely .
4. Mark position of the nut .
5. Rotate the nut 1-1/4 turns .

This method ensures that even if the tube O.D. is at the minimum tolerance , the ferrules will be in contact with the tube for the full 1-1/4 rotation.

In order to assure maximum fitting reliability and performance , great care should be given when selecting the tubing for each application


FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: What ' s your business scope ?
A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve ,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick coupler , etc .



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .



Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .



Why choose us


1: High quality with competitive price .
2: Sample order & small quantity order is acceptable .
3: Customize according to your special request .
4: Provide free products information .
5: Reliable quality assured and active after-sell service
