SMPB8300 / H Series Digital Pressure Transmitter 24VDC Power Supply Plastic
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Minimum Order Quantity : | 20 | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice | Delivery Time : | 5 - 30 Work Days |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | Negotiation |
| Place of Origin: | China | Brand Name: | Mkfale |
|---|---|---|---|
| Model Number: | SMPB8100 |
|
Detail Information |
|||
| Response Time: | ≤ 10 Ms | Operating Temp: | - 20 To + 85 ℃ |
|---|---|---|---|
| Output: | 4 To 20mA ( Or 0 To 10mA , 1 To 5V , 0 To 5V , 0 To 10V ) | Proof Pressure: | 150 % FS |
| Electric Connection: | M20 * 1 . 5 Male | Power: | 24VDC |
| High Light: | high accuracy pressure transmitter,differential pressure transmitter |
||
Product Description

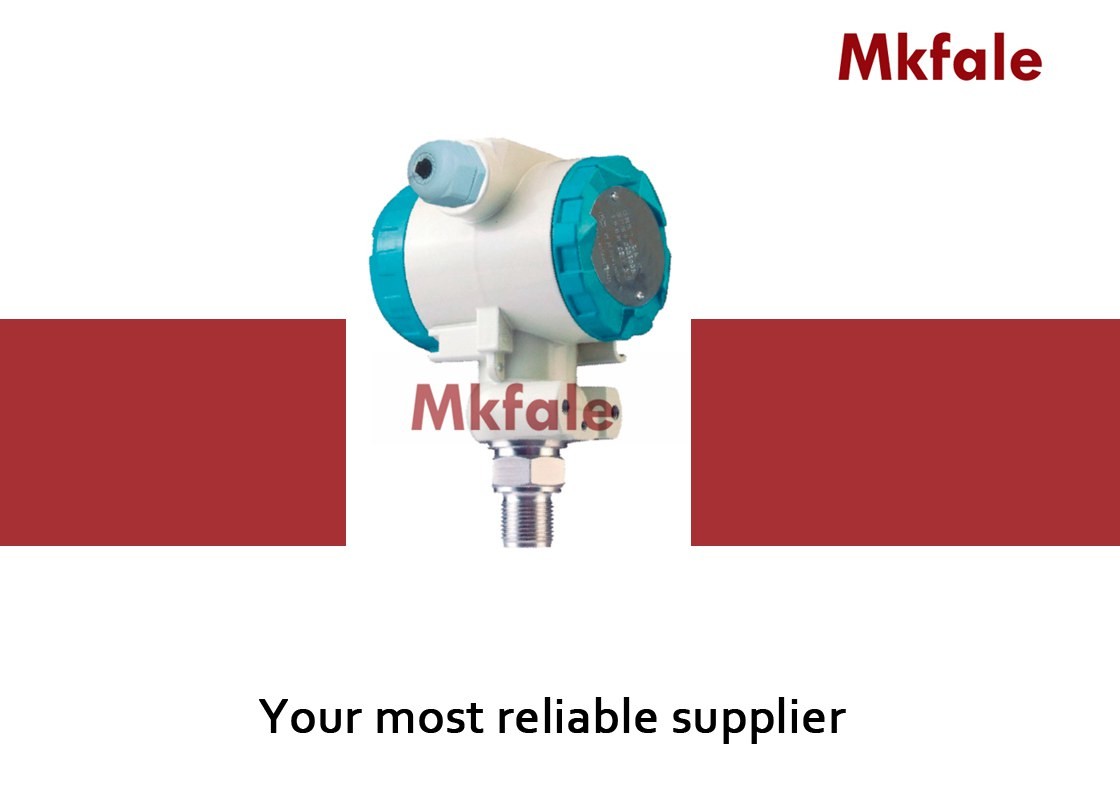

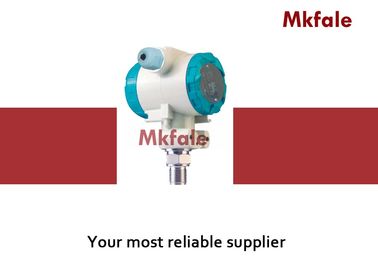

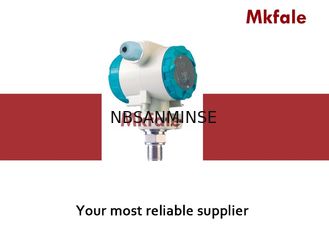

Aluminium Housing Low Cost Pressure Transmitter , SMPB81 Series Pressure Transmitter With Display
Technical Specification Table
| Type | SMPB8100 |
| Accuracy | 0.25%F S,0.5%F S(including linearity.Hysteresis and repeatability) |
| Measuring Range | -1 ... 0bar to -1...25bar,0... 0.1bar to 0... 600bar |
| Linear | Superior to 0.25%F S |
| 1 year stability | Superior to 0.25%F S |
| Response time | ≤ 10 ms |
| Power supply | 24VDC (or 12 to 36VDC) |
| Output | 4 to 20mA(or 0 to 10mA,1 to 5V, 0 to 5V,0 to 10V) |
| Proof pressure | 150%F S |
| Burst pressure | 300%F S |
| Operating Temp | -20 to +85℃ |
| Compensated Temp | -10 to +70℃ |
| Storing Temp | -40 to +125℃ |
| Process connection | M20*1.5 male or 1/2NPT male |
| Electric connection | M20*1.5 male |
| Enclosure Protection | IP65 |
| Wetted parts | SS304 SS316L |
| Diaphragm material | SS316L |
| Housing material | Aluminium |
| Power Consume | <0.5W(24VDC) |
| Weight | 720g |
Why choose us
1: Various style for each products and completely series industry instruments.
2: Customize according to your special request .
3: Provide free products information .
4: Reliable quality assured and active after-sell service
5: 12-18month quality guarantee
6: Large stock for fast shipping .
FAQ
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
