Sanmin Solenoid Valve Pulse Jet 0.3MPa - 0.6MPa Working Pressure GOYEN Type

China Sanmin Solenoid Valve Pulse Jet 0.3MPa - 0.6MPa Working Pressure GOYEN Type supplier
Sanmin Solenoid Valve Pulse Jet 0.3MPa - 0.6MPa Working Pressure GOYEN Type supplier Sanmin Solenoid Valve Pulse Jet 0.3MPa - 0.6MPa Working Pressure GOYEN Type supplier Sanmin Solenoid Valve Pulse Jet 0.3MPa - 0.6MPa Working Pressure GOYEN Type supplier

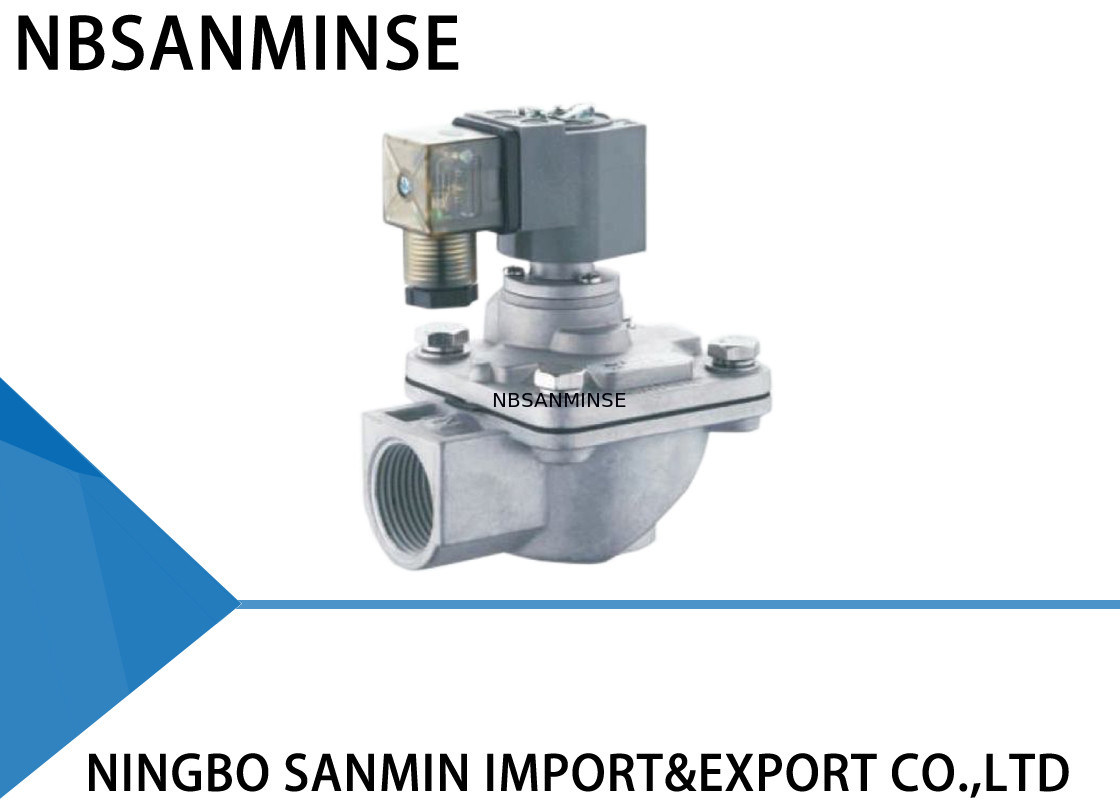

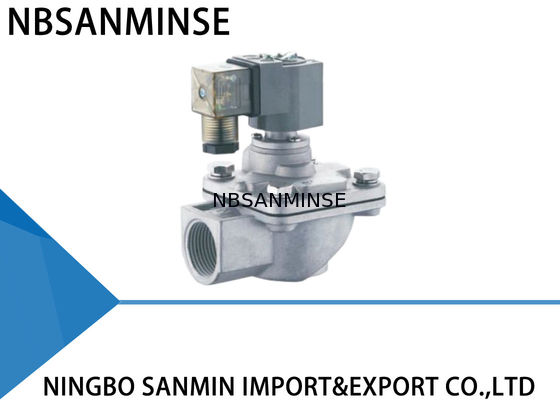

Large Image :  Sanmin Solenoid Valve Pulse Jet 0.3MPa - 0.6MPa Working Pressure GOYEN Type

Product Details:

Place of Origin: NINGBO
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: SQG - Z - 20 / 25 / 15

Payment & Shipping Terms:

Minimum Order Quantity: 20
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: Negotiation
Supply Ability: 10000 PCS
Contact Now
Detailed Product Description
Pressure: 0 . 3 - 0 . 6MPa Temperature: - 25 ~ 60 ℃
Relative Humidity: ≤ 85 % Medium: Clean Air
Voltage: AC220V / DC24V / AC110V / AC24V Customized Body: ADC 12 Die Cast
High Light:

electromagnetic pulse valve

,

pulse air valve

Sanmin Stainless Steel Solenoid Valve Pulse Jet 0.3MPa - 0.6MPa Working Pressure GOYEN Type








Technical Parameter



  Right angle Embedded Inline Plug
Design-pressure 0.3~0.8MPa 0.2~0.8MPa 0.3~0.8MPa 0.2~1.0MPa
Working-pressure 0.3~0.6MPa 0.2~0.6MPa 0.3~0.6MPa 0.2~0.6MPa
Ambient Temperature -25~60℃ Customized for lower or higher temperature
Relative Humidity ≤85%
Working Medium Clean Air
Voltage AC220V/DC24V/AC110V/AC24V Customized
Protection Class IP65
Diaphragm Life Over One Million Cycles
Cv/Kv Call us for detail




Material Construction :



Body : ADC12 die cast

Armature : 430 FR stainless steel

Diaphragm : Nitrile or Viton

Spring : 321 stainless steel

Fasteners : 302 stainless steel




Use period Failure phenomena Possible Reason Troubleshooting
During installation and commissioning The valves cannot all be opened, but the leading part does act. Check the gas dome pressure to see if it is too low. Check the leakage
Some valves do not work, but the others are normal. Check the valve coil connection and coil Replace the accessories
The valves cannot all be closed. There is leakage. There is no way to establish a gas dome. Y-valve. Some valves for the same gas dome are leaking, thus causing leakage for all the valves. Check the leakage
Z-valve. The valve inlet and blowing muzzle are installed backwards. Re-install
Some valves cannot be closed. There is leakage. There is some dirt or debris on the membrane, ii is blocking the moving iron core. Clean the membrane and check that the membrane is complete. Check the moving iron core and air lock.
A valve closing is slowly. The membrane orifice is blocked. Dredge the membrane orifice
During use period

Some valves are leaking. The membrane cannot close tightly and the valve is always open a

little.

There is some dirt or debris on the membrane, the leading part is damaged. Moving iron core is blocked. Clean the membrane and check that the membrane piece is complete. Check the moving iron core and the air lock. Replace the accessories if necessary.
Coil is hot and burned out. It has been turned on for too long. Check the working condition of the control system.
Voltage exists but the valve does not operate. Membrane is damaged and the orifice is blocked. Replace the accessories in time.
Ambient temperature is below -20℃. The valve is leaking and cannot open. Ambient temperature is too low and here is frost in the valve. Pay attention to insulation and maintaining proper temperatures.

Sanmin Solenoid Valve Pulse Jet 0.3MPa - 0.6MPa Working Pressure GOYEN TypeSanmin Solenoid Valve Pulse Jet 0.3MPa - 0.6MPa Working Pressure GOYEN TypeSanmin Solenoid Valve Pulse Jet 0.3MPa - 0.6MPa Working Pressure GOYEN Type




Our products are high quality with 12 month guarantee ,and support paypal payment.
