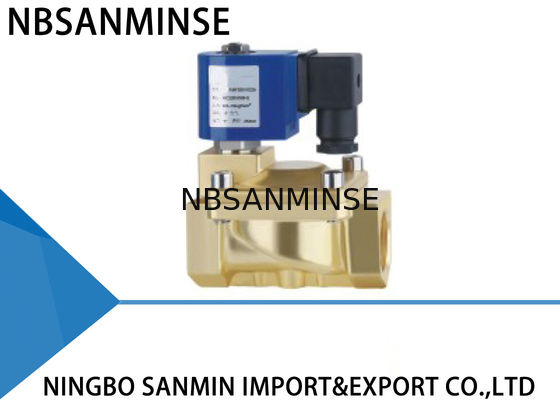

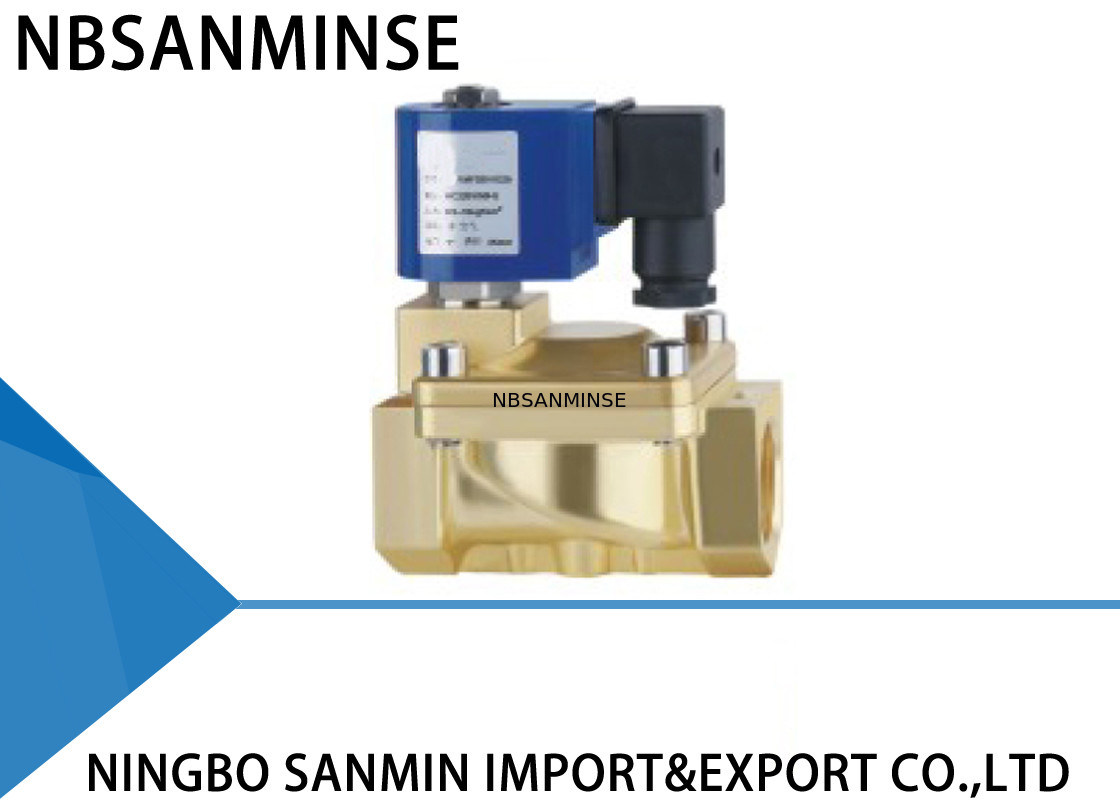

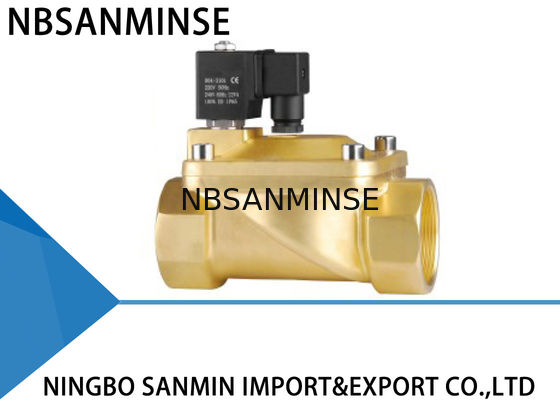

P6 Two Way Forged Brass Solenoid Valve , Pilot Operated Solenoid Valve

P6 Two Way Forged Brass Solenoid Valve , Pilot Operated Solenoid Valve

    • P6 Two Way Forged Brass Solenoid Valve , Pilot Operated Solenoid Valve
    • P6 Two Way Forged Brass Solenoid Valve , Pilot Operated Solenoid Valve
  • P6 Two Way Forged Brass Solenoid Valve , Pilot Operated Solenoid Valve

    Product Details:

    Place of Origin: NINGBO
    Brand Name: NBSANMINSE
    Certification: ISO9001
    Model Number: P6 Large Diameter Pilot Operated

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiation
    Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
    Delivery Time: Negotiation
    Payment Terms: L/C, T/T, Western Union,
    Supply Ability: 10500 / Year
    Contact Now
    Detailed Product Description
    Medium: Water , Hot Water , Air , Gas , Oil Etc Type: Normally Closed
    Temperature: 0 ℃ ~ 65 ℃ Connection: Thread , Flange ( DN 25 - 100 )
    Action: Pilot Operated Body: Forged Brass
    Pressure: 0 . 5 ~ 16 Kgf / Cm ² Port Size: 3 / 8 " ,1 / 2 " ,3 / 4 " ,1 " ,1 1 / 4 " ,1 1 / 2 " ,2 "

    P6 Two Way Forged Brass Solenoid Valve , Pilot Operated Solenoid Valve







    Applicability



    1 . Fluid temperature must be less than the marked temperature .

    2 . Solenoid valve allowed the liquid viscosity , generally under 20 CST , more than 20 CST shall be indicated .

    3 . About the working pressure difference , the pipeline high - pressure difference less than 0 . 04MPa should be chosen as Z , 2W ,it is directly acting and direct - action step .
    the pipeline high - pressure difference higher than 0 . 04MPa can choose polited type ( differential ) solenoid valve ;
    Maximum working pressure difference should be less than the biggest calibration pressure of solenoid valve ; General solenoid valve is a one - way work , so should pay attention to whether there is a contrast pressure , if you have to install the check valve .

    4 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid valve , general solenoid valve is better claim to medium cleanness

    5 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions permit , please install bypass pipe , easy maintenance ; When there is water drain to customize solenoid valve opening and closing time regulation .



    Reliability



    Ction time is very short at high frequency generally choose directly acting , large diameter choose fast series .





    Security


    1.General solenoid valve is not waterproof , when needs waterproof model , we can be customized .

    2.Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure in the pipeline , otherwise life will shorten or other unexpected circumstances .

    3.Corrosive liquid should be chosen in all stainless steel type , appropriate chooses the corrosive fluid plastic king ( LF ) solenoid valve .



    Economy


    There are a lot of solenoid valve can be common use , but on the basis of can satisfy the above three terms , should choose the most economical products



    Details

    1: 2 Way normally closed solenoid valve , Closed when de -energized , open when energized .

    2: Serialized products , small in size , large flow rate , widely use

    3: Body material : forged brass . Orifice : Φ 13 ~ 15mm .

    4: Ambient Temp . 0 ℃ ~ 65 ℃ , Fluids Temp : 0 ℃ ~ 130 ℃ , Max allowable pressure 20 bar .

    5: Flow as the arrow , mounts in any position ; Best position is solenoid vertical and upright direction .

    6: Voltage : 220VAC / 230VAC / 240VAC / 110VAC / 24VAC 50 / 60 HZ 24VAC/ 12VAC ;

    7: This series valves are offered NBR , VITON , EPDM etc , For Seals and diaphragm to provide on - off control of various fluids .

    8: Can fix expolsion - proof coil




    Why choose us


    1: Various style for each products and completely series pneumatic products .
    2: Large stock for fast shipping .
    3: High quality with competitive price .

    4: Provide free products information .
    5: Reliable quality assured and active after-sell service
    6: One year quality guarantee




    FAQ



    Q: How much is our minimum order quantity ?
    A: Our minimun quantity is 1 Piece .



    Q: Could you offer the free samples ?
    A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



    Q: What ' s your business scope ?
    A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve ,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick coupler , etc .



    Q: what types of products you can make ?
    A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .



    Q: Do your company have specialized technical personnel ?
    A: Design as your requirements,and have QC for make 100% inspection
