Copper inner and outer wires Brass Fitting Connect With Pipe For Water Oil Air
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Place of Origin: | china | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Model Number: | 303 |
|
Detail Information |
|||
| Code: | 303 | Female: | M20x1.5 |
|---|---|---|---|
| Male Thread: | M20x1.5 | Size（mm）: | L:112 H:111 |
| Part Name: | Valve Body Sealing Handwheel | Material: | Q235/304 Graphite HT20-40 |
| Nominal Pressure: | 10Mpa | Strength Test Pressure: | 15Mpa |
| Seal Test Pressure: | 1.6Mpa | Operation Temperature: | ≤250℃ |
| Working Medium: | Water, Steam, Oil | ||
Product Description

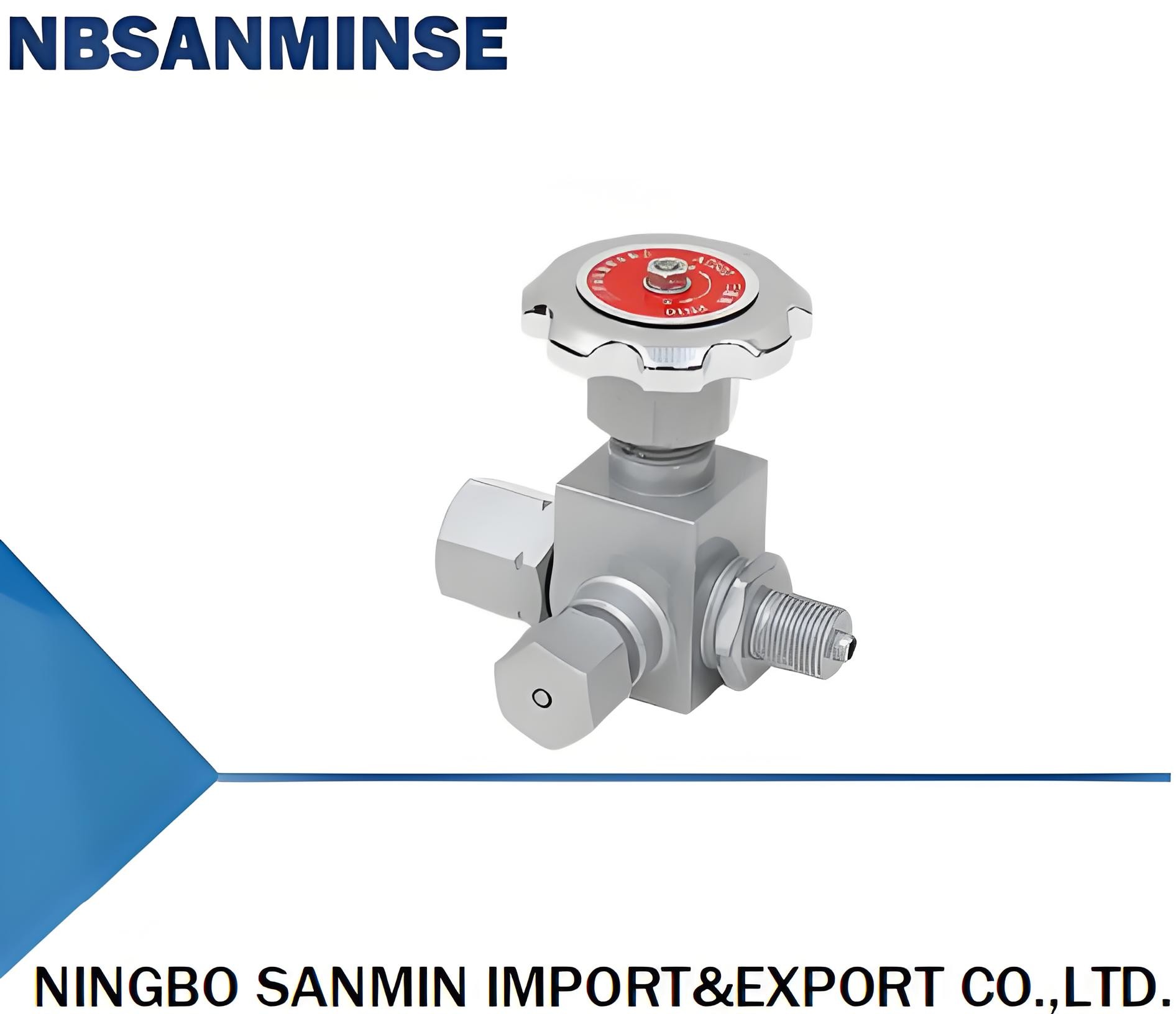

This valve is a high-pressure three-way valve with a nominal pressure of PN10MPa. 303 A7501 pressure gauge three-way valve nominal pressure PN10MPa strength test pressure PN15, sealing test pressure PN1.6, working temperature ≤ 250 ℃ working medium: water, steam, oil code internal thread external thread size (mm) LH303M20 × 1.5M20 × 1.5112111 main parts material part name material valve body Q235/304 sealing element graphite handwheel HT20-40
| code | female | male thread | size(mm) | Part name | material | |
| valve body | Q235/304 | |||||
| 303 | M20x1.5 | M20x1.5 | L | H | Sealing | graphite |
| 112 | 111 | handwheel | HT20-40 | |||
| Nominal pressure | 10Mpa | |||||
| strength test pressure | 15Mpa | |||||
| Seal test pressure | 1.6Mpa | |||||
| operation temperature | ≤250℃ | |||||
| Working medium | Water, steam, oil | |||||
