Copper inner and outer wires Brass Fitting Connect With Pipe For Water Oil Air
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Place of Origin: | china | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Model Number: | 309 |
|
Detail Information |
|||
| Code: | 309 | Pipe Thread: | 1/2” |
|---|---|---|---|
| Pressure Gauge Thread: | M20×1.5 | Size: | L:82 H:68 R:80 |
| Nominal Pressure: | 2.5Mpa | Strength Test Pressure: | 3.75Mpa |
| Seal Test Pressure: | 2.5Mpa | Operation Temperature: | ≤200°C |
| Working Medium: | Water, Gas, Oil | ||
Product Description

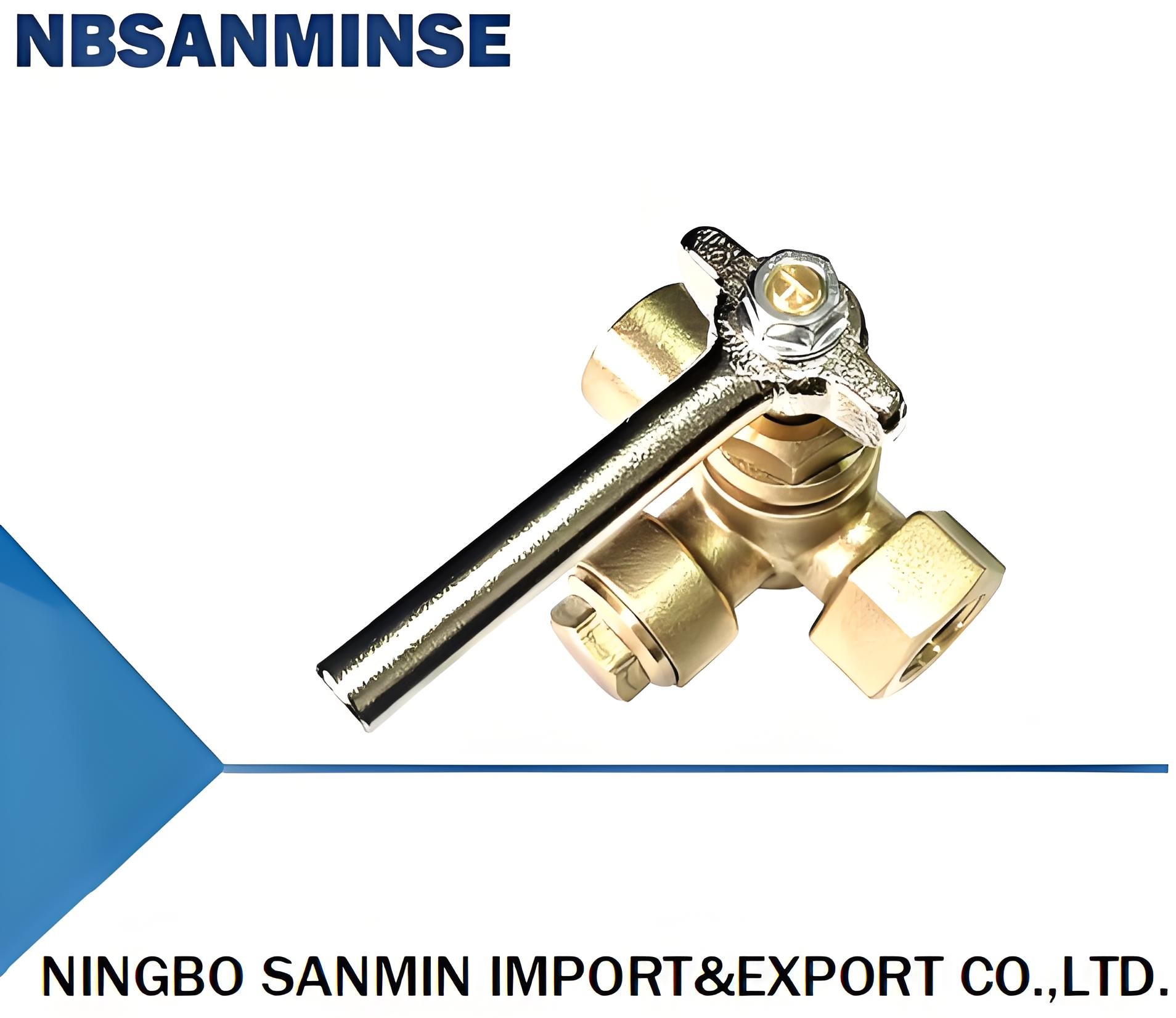

Code: 309, pressure gauge three-way valve can be directly connected to the pressure gauge and is generally used for sealing small flow, high pressure gas or liquid (such as steam, oil) media. Widely used in power plants, steel plants, petroleum, and chemical industries. The pressure gauge three-way valve has the advantages of easy installation and disassembly, tight connection, high fire and explosion resistance, high pressure resistance, and good sealing performance. It is an advanced connection method valve in power plants, oil and chemical equipment, and instrument measurement pipelines.
| code | pipe thread | Pressure gauge thread | size | ||
| L | H | R | |||
| 309 | 1/2” | M20×1.5 | 82 | 68 | 80 |
| nominal pressure | 2.5Mpa | ||||
| strength test pressure | 3.75Mpa | ||||
| Seal test pressure | 2.5Mpa | ||||
| operation temperature | ≤200°C | ||||
| Working medium | Water, gas, oil | ||||
