Copper inner and outer wires Brass Fitting Connect With Pipe For Water Oil Air
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Place of Origin: | china | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Model Number: | TFL-101-25 |
|
Detail Information |
|||
| Code: | TFL-101-25 | Size（mm）: | L 100 D 115 D1 85 D2 67 Z-φd 4-φd D3 19 |
|---|---|---|---|
| Part Name: | Valve Body Sealing Element Handle | Material: | Brass PTFE Forged Steel |
| Nominal Pressure: | 1.6Mpa | Strength Test Pressure: | 2.4Mpa |
| Seal Test Pressure: | 1.6Mpa | Operation Temperature: | ≤225℃ |
| Working Medium: | Water, Steam, Oil | ||
Product Description

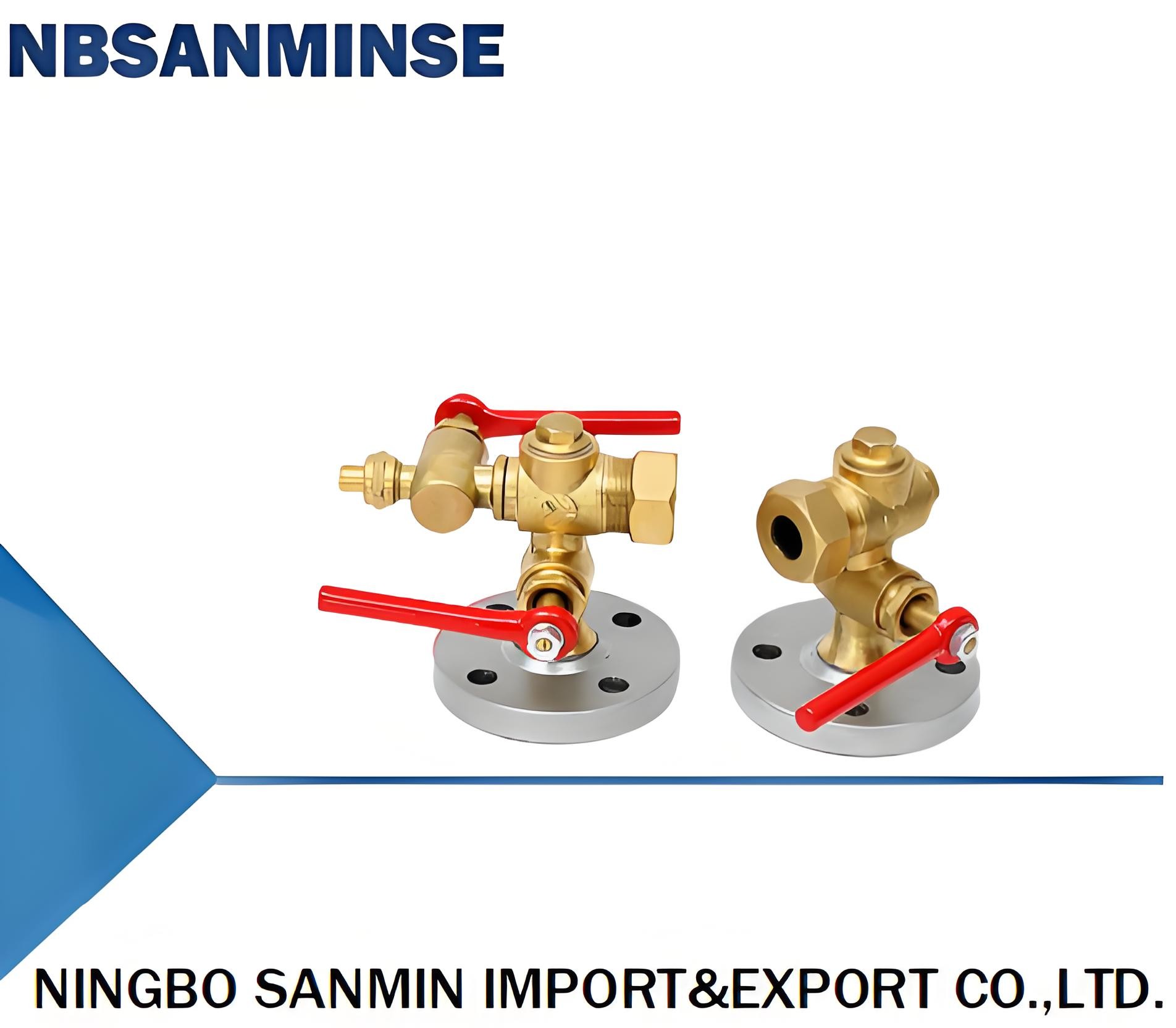

This indicator (also known as a water level gauge) is suitable for water and steam boilers and reservoirs with a working temperature t ≤ 225 ° C, and is used to indicate the liquid level through glass tubes. 101 X49F-16T type water level gauge code: 101 flange type water level gauge. The main component materials of the valve body and valve stem are brass, the sealing element is polytetrafluoroethylene (plastic king), and the handle is forged steel
| code | size(mm) | Part name | material | |||||
| L | D | D1 | D2 | Z-φd | D3 | valve body | brass | |
| TFL-101-25 | 100 | 115 | 85 | 67 | 4-φd | 19 | Sealing element | PTFE |
| handle | forged steel | |||||||
| Nominal pressure | 1.6Mpa | |||||||
| strength test pressure | 2.4Mpa | |||||||
| Seal test pressure | 1.6Mpa | |||||||
| operation temperature | ≤225℃ | |||||||
| Working medium | Water, steam, oil | |||||||
