Copper inner and outer wires Brass Fitting Connect With Pipe For Water Oil Air
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Place of Origin: | china | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Model Number: | TL103-15 TL103-20 |
|
Detail Information |
|||
| Code: | TL103-15 TL103-20 | Size（mm）: | D1 1/2" 3/4" |
|---|---|---|---|
| Part Name: | Valve Body Sealing Element Handle | Material: | Brass PTFE |
| Nominal Pressure: | 0.6Mpa | Strength Test Pressure: | 1.0Mpa |
| Seal Test Pressure: | 0.6Mpa | Operation Temperature: | ≤200℃ |
| Working Medium: | Water, Steam, Oil | ||
Product Description

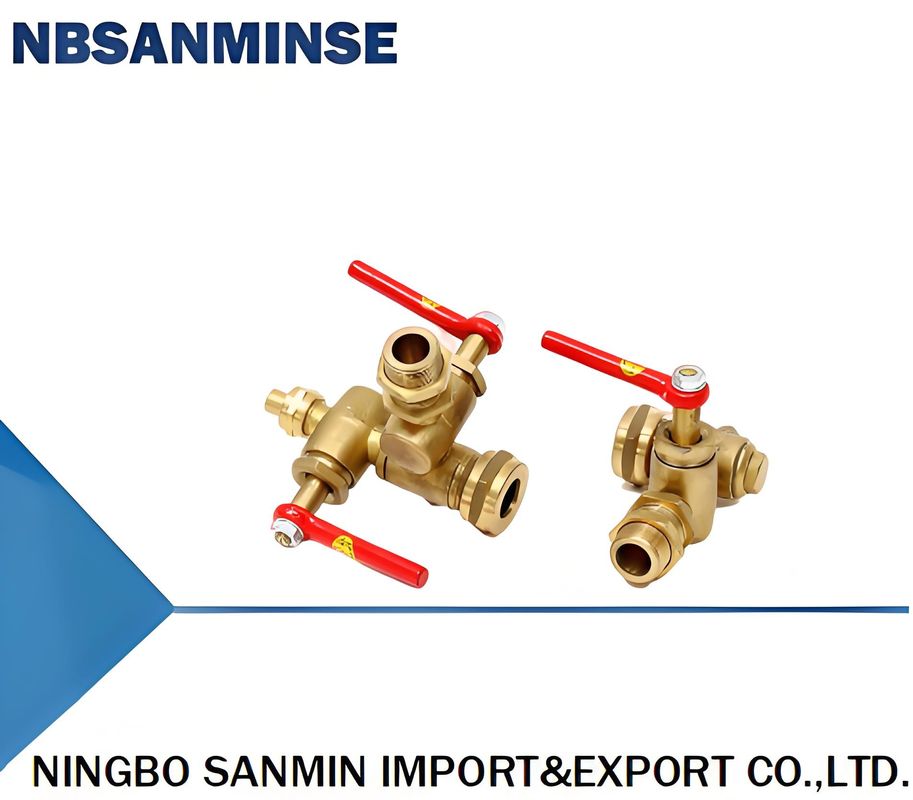

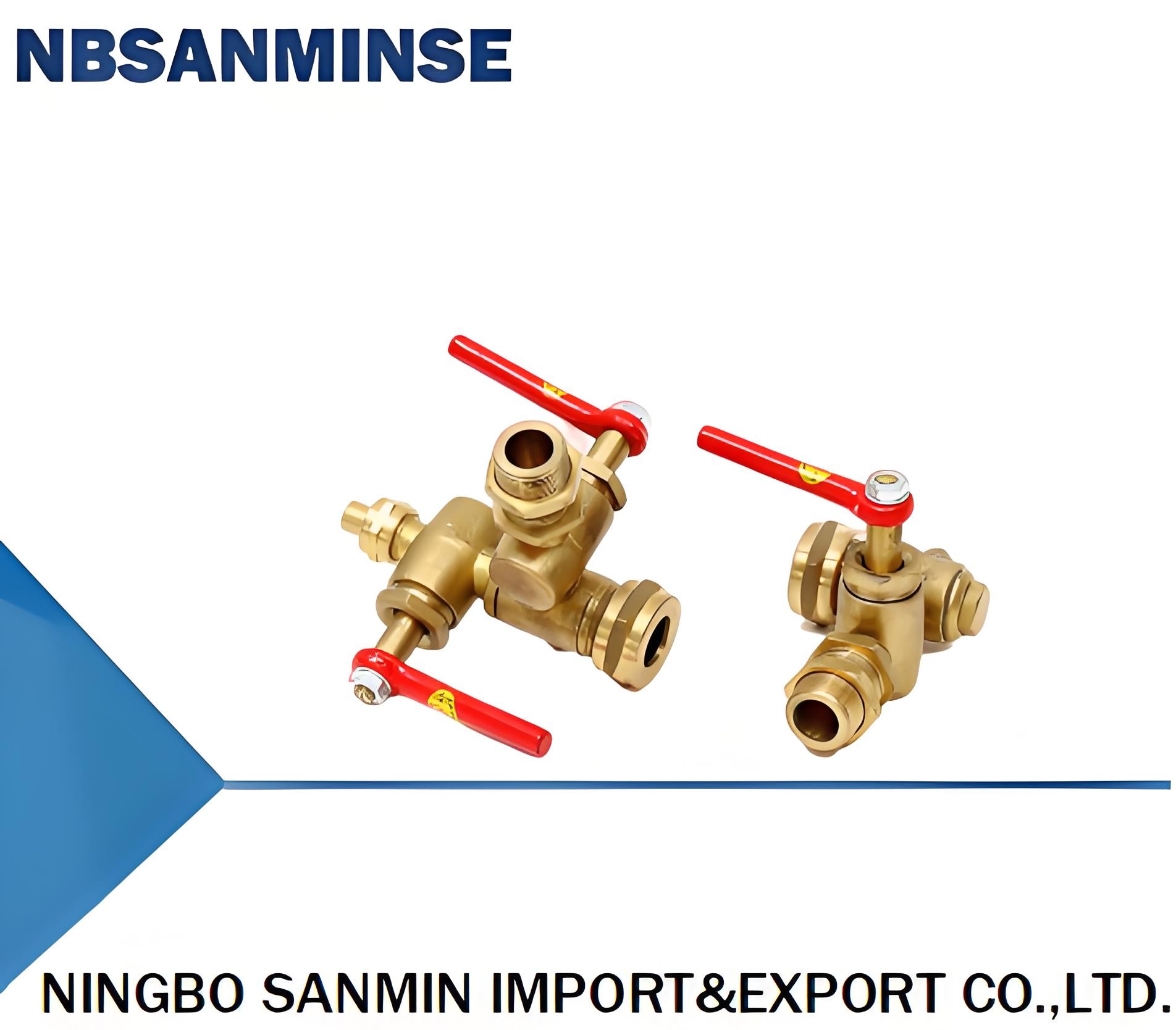

This level gauge (also known as a water level gauge) is suitable for water, steam, and reservoirs with a working temperature t ≤ 200 ℃, and is used to indicate the level of liquid through a glass tube. 103 X29F-6T type code: 103 X29F-6T type (three handles/pair) water level gauge main parts material part name material valve body brass seal polytetrafluoroethylene (plastic king) handle forged steel main technical parameters nominal pressure PN0.6MPa strength test pressure 1.0 sealing test pressure 0.6 working temperature ≤ 200 ℃ working medium: water, steam, oil
| code | size(mm) | Part name | material | |||
| D1 | D2 | L1 | L2 | valve body | brass | |
| TL103-15 | 1/2" | 14 | 87 | 25 | Sealing element | PTFE |
| TL103-20 | 3/4" | 19 | 95 | 30 | handle | forged steel |
| Nominal pressure | 0.6Mpa | |||||
| strength test pressure | 1.0Mpa | |||||
| Seal test pressure | 0.6Mpa | |||||
| operation temperature | ≤200℃ | |||||
| Working medium | Water, steam, oil | |||||
