Copper inner and outer wires Brass Fitting Connect With Pipe For Water Oil Air
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Place of Origin: | china | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Model Number: | FLD-109-300 FLD-109-350 FLD-109-440 FLD-109-A |
|
Detail Information |
|||
| Code: | FLD-109-300 FLD-109-350 FLD-109-440 FLD-109-A | Size（mm）: | L 300 350 440 A L1 145 172 200 B D 115(105) D1 85(75) D2 65(55) Z-φd 4-φ14 |
|---|---|---|---|
| Part Name: | Valve Body Sealing Glass Gasket Glass | Material: | Q235,forged Steel Bushing Graphite Low Alkali High Borosilicate |
| Nominal Pressure: | 2.5（4.0）Mpa | Strength Test Pressure: | 4.0（6.4）Mpa |
| Seal Test Pressure: | 2.5（4.0）Mpa | Operation Temperature: | ≤225℃ |
| Working Medium: | Water, Steam, Oil | ||
Product Description

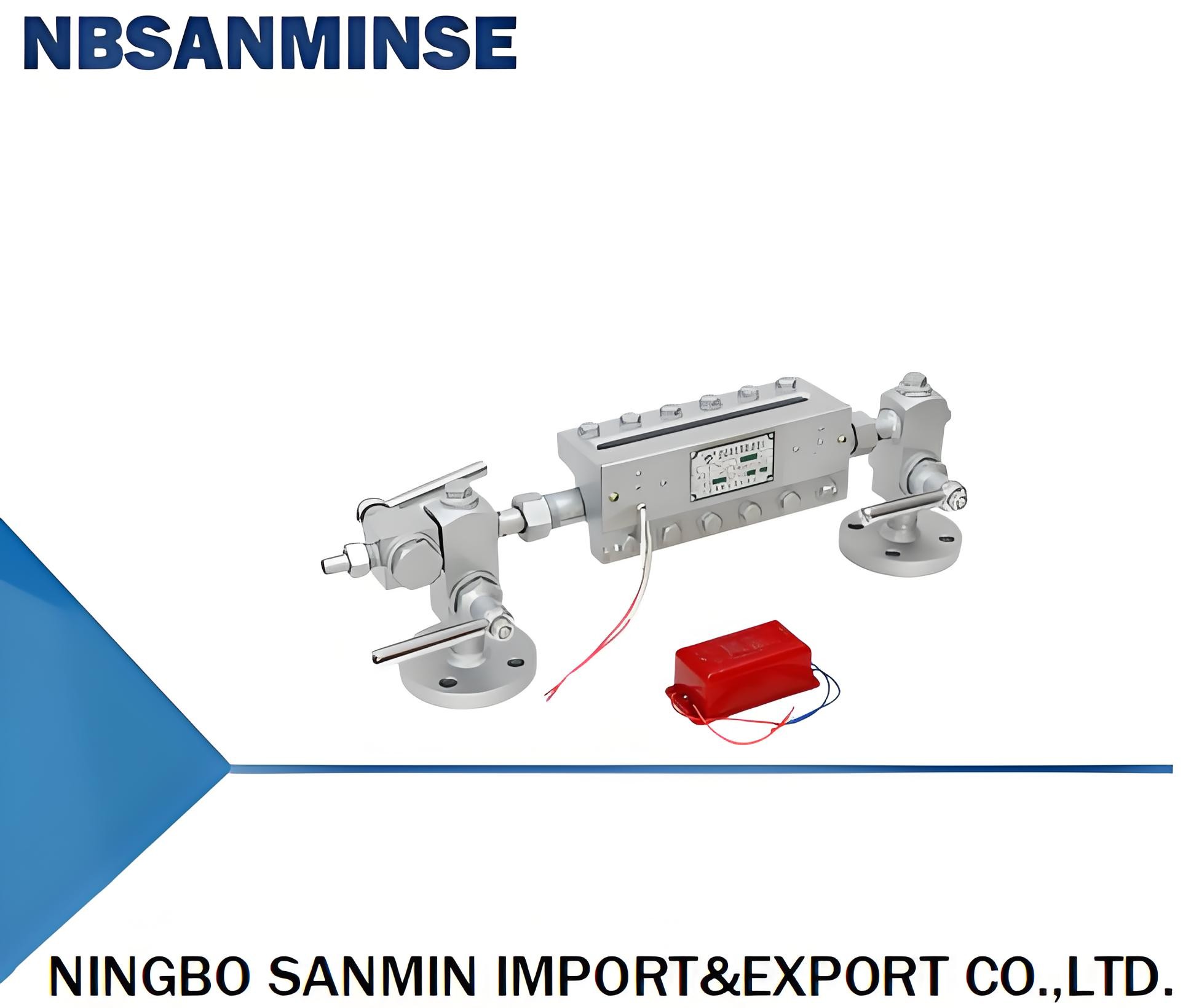

This water level gauge is suitable for steam boilers or reservoirs with a working temperature of t ≤ 220 ℃, and is used to indicate the liquid level through two colors displayed on the glass plate: red (with water) and green (without water).
| code | size(mm) | Part name | material | |||||
| L | L1 | D | D1 | D2 | Z-φd | |||
| FLD-109-300 | 300 | 145 | 115(105) | 85(75) | 65(55) | 4-φ14 | valve body | Q235,forged steel |
| FLD-109-350 | 350 | 172 | Sealing | bushing | ||||
| FLD-109-440 | 440 | 200 | Glass gasket | graphite | ||||
| FLD-109-A | A | B | glass | Low alkali high borosilicate | ||||
| Nominal pressure | 2.5(4.0)Mpa | |||||||
| strength test pressure | 4.0(6.4)Mpa | |||||||
| Seal test pressure | 2.5(4.0)Mpa | |||||||
| operation temperature | ≤225℃ | |||||||
| Working medium | Water, steam, oil | |||||||
