Copper inner and outer wires Brass Fitting Connect With Pipe For Water Oil Air
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Place of Origin: | china | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Model Number: | FL-105-300 FL-105-350 FL-105-440 FL-105-600 FL-105-670 FL-105-A |
|
Detail Information |
|||
| Code: | FL-105-300 FL-105-350 FL-105-440 FL-105-600 FL-105-670 FL-105-A | Size（mm）: | L 300 350 440 600 670 A L1 145 172 200 350 420 B D 115(105) D1 85(75) D2 65(55) |
|---|---|---|---|
| Part Name: | Valve Body Sealing Glass Gasket Glass | Material: | Q235,forged Steel Bushing Graphite Low Alkali High Borosilicate |
| Nominal Pressure: | 2.5（4.0）Mpa | Strength Test Pressure: | 4.0（6.4）Mpa |
| Seal Test Pressure: | 2.5（4.0）Mpa | Operation Temperature: | ≤225℃ |
| Working Medium: | Water, Steam, Oil | ||
Product Description

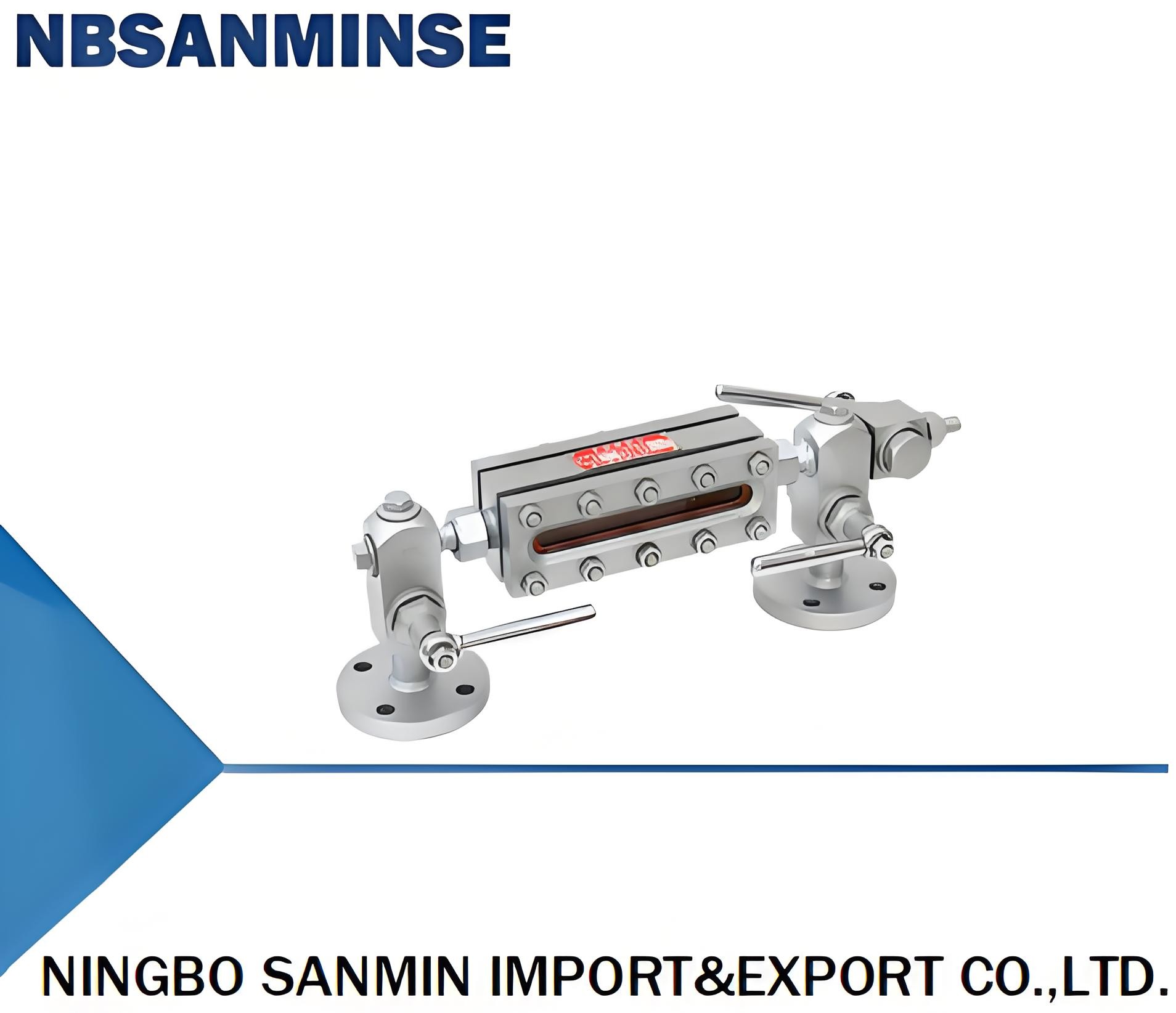

Hot spot of 105 steel flat plate level gauge: Advantages of flat plate level gauge: professional manufacturer | suitable for high temperature | good quality. Flat level gauges are suitable for various complex measurements, such as small dielectric constant media, large temperature and pressure changes, corrosive working conditions, media such as fly ash, and volatile corrosive liquid media Order now!
| code | size(mm) | Part name | material | ||||
| L | L1 | D | D1 | D2 | |||
| FL-105-300 | 300 | 145 | 115(105) | 85(75) | 65(55) | ||
| FL-105-350 | 350 | 172 | |||||
| FL-105-440 | 440 | 200 | valve body | Q235, forged steel | |||
| FL-105-600 | 600 | 350 | Sealing | bushing | |||
| FL-105-670 | 670 | 420 | Glass gasket | graphite | |||
| FL-105-A | A | B | glass | Low alkali high borosilicate | |||
| Nominal pressure | 2.5(4.0)Mpa | ||||||
| strength test pressure | 4.0(6.4)Mpa | ||||||
| Seal test pressure | 2.5(4.0)Mpa | ||||||
| operation temperature | ≤225℃ | ||||||
| Working medium | Water, steam, oil | ||||||
