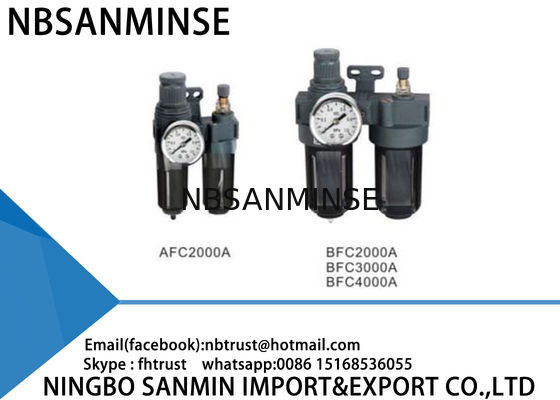

Instrument Air Filter Regulator Lubricator High Performance AFC / BFC Series

China Instrument Air Filter Regulator Lubricator High Performance AFC / BFC Series supplier

Large Image :  Instrument Air Filter Regulator Lubricator High Performance AFC / BFC Series

Product Details:

Place of Origin: NINGBO
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: AFC / BFC

Payment & Shipping Terms:

Minimum Order Quantity: 20
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet or As Customer Advice
Delivery Time: Negotiation
Supply Ability: 9956 PCS Year
Contact Now
Detailed Product Description
Type: Air Source Equipment Model Number: AFC / BFC
Model: AFC2000A , BFC2000A , BFC3000A , BFC4000A Port Size: 1 / 4 , 3 / 8 , 1 / 2
Temperature: - 10 ~ 60 Medium: Air

Instrument Air Filter Regulator Lubricator High Performance AFC / BFC Series







Product Feature



1 . The structure is delicate and compact , which is convenient for installation and application .

2 . The pressed - in self - locking mechanism can precent the abnormal movement of the set pressure caused by external interfere .

3 . The pressure loss is low and the efficiency of water separating is high .

4 . The quantity of oil dripping can be directly oberved through transparent check dome .

5 . In addition to standard type , lower pressure type is optional ( The highest adjustable pressure is 0 . 4 MPa )



Specification



Model AFC1500 AFC2000 BFC2000 BFC3000 BFC4000
Fluid Air
Port Size 1 / 8 “ 1 / 4 “ 1 / 4 “ 3 / 8” 1 / 2 “
Filtering grade 40um or 5 um
Pressure Range Semi – auto and automatic drain : 0 . 15 ~ 0 . 9 MPa ( 20 ~ 130 Psi ) Manual drain : 0 . 05 ~ 0 . 9 MPa ( 7 ~ 130 Psi )
Max . Pressure 1 . 0 MPa ( 145 Psi )
Proof Pressure 1 . 5 MPa ( 215 Psi )
Temperature Range - 5 ~ 70 ℃
Capacity of drain bowl 15CC 60CC
Capacity of oil bowl 25CC 90CC
Recommended Lubricant ISO VG 32 or equivalent
Weight 500g 700g
Constitute Filter – Regulator AFR1500 AFR2000 BFR2000 BFR3000 BFR4000
Lubricator AL1500 AL2000 BL2000 BL3000 BL4000

Why choose us


1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping.
3: High quality with competitive price.
4: Sample order & small quantity order is acceptable.
5: Customize according to your special request.
6: Provide free products information.
7: Reliable quality assured and active after-sell service
8: One year quality guarantee






We have UFRLH - 02 , UFRLH - 03 , UFRLH - 04 , UFRLH - 06 , UFRLH - 08 , UFR / LH - 02 ,

UFR / LH - 03 , UFR / LH - 03 , UFR / LH - 04 , UFR / LH - 06 , UFR / LH - 08 , UFRH - 06 , UFRH - 08 ,

UFH - 02 , UFH - 03 , UFH - 04 , UFH - 06 , UFH - 08 , URH - 02 , URH - 03 , URH - 04 , URH - 06 ,

URH - 08 , AC2000A , BC2000A , BC3000A , BC4000A , AFC2000A , BFC2000A , BFC3000A ,

BFC4000A , AFR2000A , BFR2000A , BFR3000A , BFR4000A , AF2000A , BF2000A , BF3000A ,

BF4000A , AR2000A , BR2000A , BR3000A , BR4000A , AL2000A , BL2000A , BL3000A , BL4000A .



AC200A - 01J ` 02J , AC300A - 02J ` 03J , AC400A - 03J ` 04J , AC500A - 06J ` 08J ,

AC600A - 06J ` 08J , AC201A - 01J ` 02J , AC301A - 02J ` 03J , AC401A - 03J ` 04J ,

AC501A - 06J ` 08J , AC601A - 06J ` 08J , AW200A - 01J ` 02J , AW300A - 02J ` 03J ,

AW400A - 03J ` 04J , AW500A - 06J ` 08J , AW600A - 06J ` 08J .
