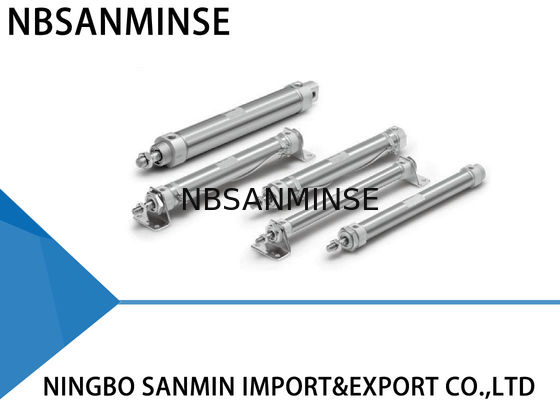

CM2 Standard Type SMC Pneumatic Cylinder Single Rod Double Acting Pneumatic Cylinder

CM2 Standard Type SMC Pneumatic Cylinder Single Rod Double Acting Pneumatic Cylinder

CM2 Standard Type SMC Pneumatic Cylinder Single Rod Double Acting Pneumatic Cylinder

Product Details:

Place of Origin: China
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: CM2

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Type: Pneumatic Action: Double Acting , Single Rod
Fluid: Air Max Pressure: 1.0 MPa
Min Pressure: 0.05 MPa Cushion: Rubber Bumper , Air Cushion

CM2 Standard Type Double Acting Single Rod Air Pneumatic Cylinder





Specification



Bore Size ( mm ) 20 25 32 40
Type Pneumatic
Action Double Acting , Single rod
Fluid Air
Proof Pressure 1.5MPa
Maximum operating pressure 1.0MPa
Minimum operating pressure 0.05MPa
Ambient and fluid temperature

Without auto switch : - 10 ℃ to 70 ℃ (No Freezing)

With auto switch : - 10 ℃ to 60 ℃ (No Freezing)

Lubrication Not required ( Non - lube)
Stroke length tolerance

+1.4mm

0mm

Piston speed 50 to 750 mm/s
Cushion Rubber bumper , Air Cushion
Allowable kinetic energy Rubber bumper Male thread 0.27J 0.4J 0.65J 1.2J
Female thread 0.11J 0.18J 0.29 0.52
Air cushion ( Effective cushion length (mm)) Male thread

0.54J

(11.0)

0.78J

(11.0)

1.27J

(11.0)

2.35J

(11.8)

Female Thread 0.11J 0.18J 0.29J 0.52J



Standard Strokes



Bore Size

(mm)

Standard Stroke ( mm ) Note 1 ) Max manufacturable stroke( mm)
20 25, 50 , 75 , 100 , 125 , 150 , 200 , 250 , 300 1000
25 1500
32 2000
40



Why choose us



1: Customize according to your special request .
2: Provide free products information .
3: Reliable quality assured and active after-sell service
4: One year quality guarantee
5: Various style for each products and completely series pneumatic products .



FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: What ' s your business scope ?
A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve ,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick coupler , etc .



Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
