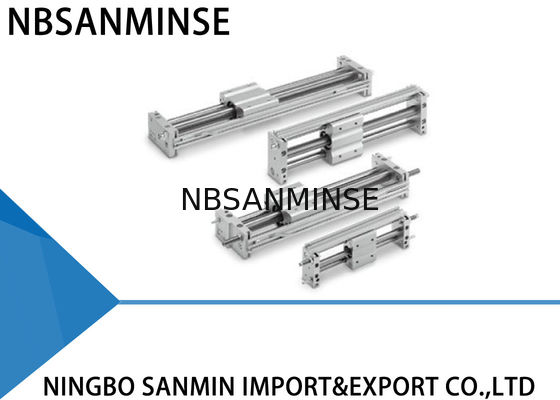

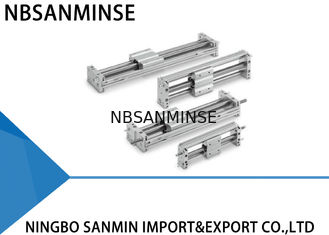

Magnetically Coupled SMC Rodless Air Cylinder Pneumatic Cylinder Slide Type

Magnetically Coupled SMC Rodless Air Cylinder Pneumatic Cylinder Slide Type

Magnetically Coupled SMC Rodless Air Cylinder Pneumatic Cylinder Slide Type

Product Details:

Place of Origin: China
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: CY1S

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Bore Size: 6 , 10 , 15 , 20 , 25 , 32 , 40 Fluid: Air
Poof Pressure: 1.05MPa Temperature: - 10 To 60 ℃ ( No Freezing )
Piston Speed: 50 To 400 Mm / S Lubrication: Non - Lube

CY1S Series Magnetically Coupled Rodless Cylinder Slide Type , Slide Bearing Pneumatic Cylinder





Specifications



Bore Size ( mm ) 6 10 15 20 25 32 40
Fluid Air
Proof pressure 1.05MPa
Max operating pressure 0.7MPa
Min operating pressure 0.18MPa
Ambient and fluid temperature -10 t 60 ℃ ( No freezing )
Piston speed 50 to 400 mm / s
Cushion Rubber bumper / shock absorber
Lubrication Non - lube
Magnetic holding force ( N ) 19.6 53.9 137 231 363 588 922





Standard Strokes



Bore size ( mm ) Standard stroke ( mm ) Maximum manufacturable stroke ( mm )
6 50 , 100 , 150 , 200 300
10 50 , 100 , 150 , 200 , 250 , 300 500
15 50 , 100 , 150 , 200 , 250 , 300 , 350 , 400 , 450 , 500 750
20 100 , 150 , 200 , 250 , 300 , 350 , 400 , 450 , 500 , 600 , 700 , 800 1000
25 1500
32
40 100 , 150 , 200 , 250 , 300 , 350 , 400 , 450 , 500 , 600 , 700 , 800 , 900 , 1000 1500



Why choose us



1: High quality with competitive price .
2: Sample order & small quantity order is acceptable .
3: Customize according to your special request .
4: Provide free products information .
5: Reliable quality assured and active after-sell service



FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .



Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection



Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

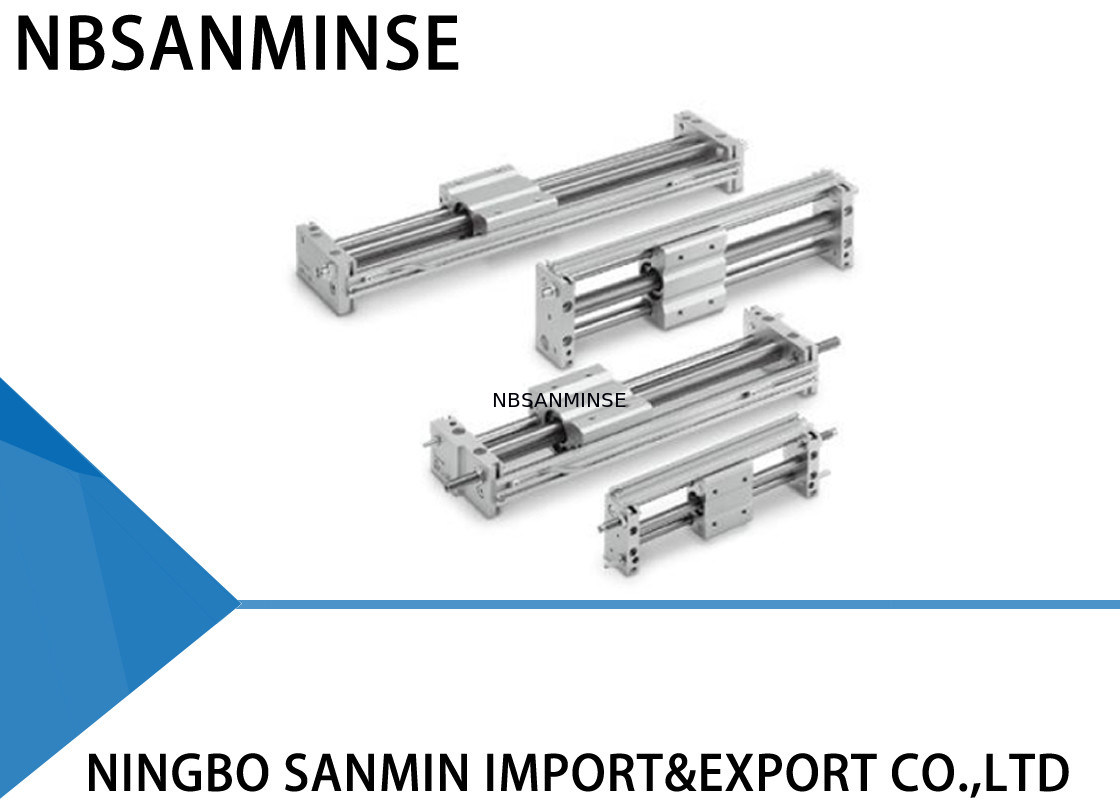

Magnetically Coupled SMC Rodless Air Cylinder Pneumatic Cylinder Slide TypeMagnetically Coupled SMC Rodless Air Cylinder Pneumatic Cylinder Slide Type
