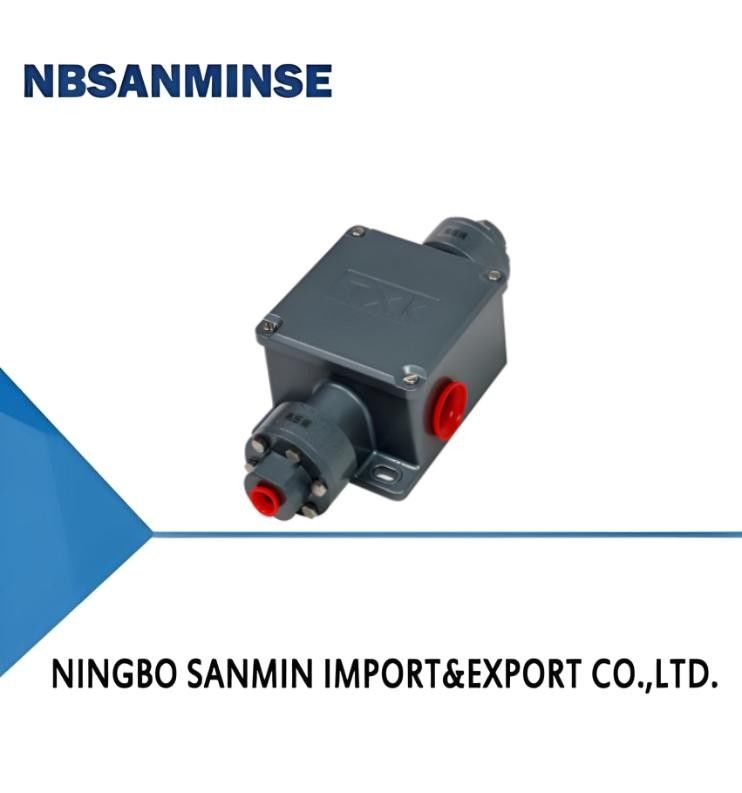

TXK differential pressure controller

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Certification:	CE	Model Number:	TXK

Detail Information
Switching Element:	Microswitch	Ambient Temp.:	-20℃-60℃
Medium Temp.:	0℃-80℃	Repeatability Error:	≤1%

Product Description

1, Overview
TXK differential pressure switches can be widely used in large, medium, and small air-cooled or water-cooled chillers using plate heat exchangers, sleeve heat exchangers, and shell and tube heat exchangers for water flow control and monitoring of pump and water filter status. It is also widely used in gas detection, non corrosive media, measuring absolute pressure, and gauge pressure, and is widely used in air conditioning and clean rooms, fan and filter blowing control, fluid and liquid level control.
2, Technical performance

Working viscosity	1x10-3m²/s
Switching element	microswitch
Enclosure ratings	IP65
Ambient temperature	-20℃-60℃
Medium temperature	0℃-80℃
Anti-Vibration Performance	Max 20m/s²
Repeatability error	≤1%
Contact capacity	Max 220V AC, ≤5A

3, Specifications

Adjustment range of pressure setting value	Switching difference not greater than	**Allowable pressure (Mpa)	External dimensions	Switching frequency/minute	Membrane material	Internal thread of interface
0.5-3KPa	0.2KPa	1	01	15	Stainless steel or rubber	NPT1/4
1-10KPa	0.5KPa	1.2	01	15	Stainless steel or rubber	NPT1/4
1-16KPa	1.5KPa	1.5	01	15	Stainless steel or rubber	NPT1/4
25~105KPa	1.8KPa	3.5	01	15	Stainless steel or rubber	NPT1/4
20~200KPa(RN)	2KPa	5	01	15	Stainless steel or rubber	NPT1/4

4, Selection Table

TXK - □ □ - □ - □ - □ 1 2 3 4 5
1. Product Form
01	convention	02	double-contact	03	EEx d
04	Lower differential pressure	05	Upper and lower differential pressure	06	High hydrostatic pressure
07	furnace
2. Shell
NN	Regular style	RN	Dual contact model	LC	Ordinary explosion-proof model
B	Explosion proof model with small viewing window	AL	Furnace shell
3. Diaphragm type
01	poly	02	stainless steel	03	rubber
4. Connecting thread (customizable as needed)
01	NPT1/4 内
5. Range			Refer to the detailed range selection table
Selection example: TXK-05NN-02-01-009 TXK differential pressure controller, product form: upper and lower differential pressure, housing: ordinary type, diaphragm form: stainless steel, connection thread: NPT1/4 internal, range: 5-210KPa.

Range comparison table

Code	Range	Notes	Code	Range	Notes
001	3.5-27.5MPa	Conventional pressure	002	1.2-12MPa	Conventional pressure
003	0.7-7MPa	Conventional pressure	004	0.37-3.7MPa	Conventional pressure
005	0.25-2.5MPa	Conventional pressure	006	0.15-1.2MPa	Conventional pressure
007	20-700KPa	Conventional pressure	008	10-350KPa	Conventional pressure
009	5-210KPa	Conventional pressure	010	5-170KPa	Conventional pressure
011	0-100KPa	Conventional pressure	012	﹣100-0KPa	Conventional pressure
013	﹣100-100KPa	Conventional pressure	014	25KPa	High hydrostatic pressure
015	0-60KPa	Lower differential pressure	016	20-200KPa	Lower differential pressure
017	50-500KPa	Lower differential pressure	018	﹣0.5-0.5KPa	Furnace differential pressure
019	﹣3-3KPa	Furnace differential pressure	020	﹣6-6KPa	Furnace differential pressure
021	﹣12-12KPa	Furnace differential pressure

5, Debugging method and switch wiring diagram
Return the adjusting nut to a state of basic weakness, connect the C, NO, NC wires of the switch to the signal light. Observe the status of the signal light, connect the signal light to a green light (C is the common terminal, and when C is connected to NC at the factory, the green light will light up), and adjust the adjusting nut up and down according to the set point indicator to set it to the desired set point. (The downward pressure increases, the upward pressure decreases)

TXK differential pressure controller 0

6, Appearance and installation dimensions

TXK differential pressure controller 1
