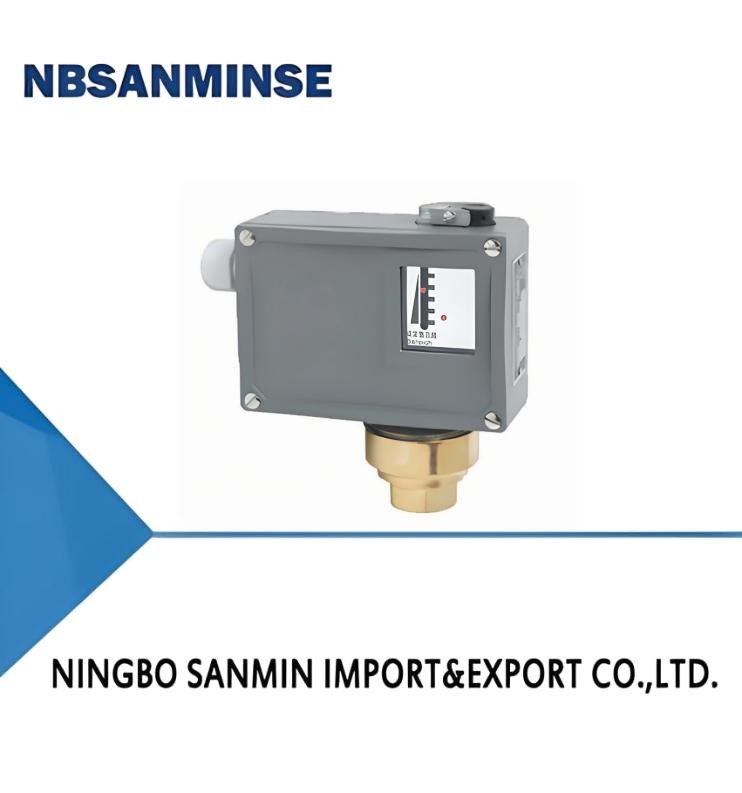

TL0202 Pressure Switch Medium Pressure Adjustable Pressure Controller

TL0202 Pressure Switch Medium Pressure Adjustable Pressure Controller
TL0202 Pressure Switch Medium Pressure Adjustable Pressure Controller
TL0202 Pressure Switch Medium Pressure Adjustable Pressure Controller TL0202 Pressure Switch Medium Pressure Adjustable Pressure Controller

Large Image :  TL0202 Pressure Switch Medium Pressure Adjustable Pressure Controller

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: TL0202
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiate
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

TL0202 Pressure Switch Medium Pressure Adjustable Pressure Controller

Description
Working Viscosity: <1×10－3m2/s Ambient Temp.: －40℃～50℃
Medium Temp.: 0～120℃ Repeatability Error: ≤1%
Warranty: 1 Year
Highlight:

medium pressure switch controller

,

adjustable pressure switch controller

Overview
The TL0202 pressure switch (medium pressure)/pressure controller adopts a bellows type sensor, which can be used for neutral gases such as air, gas, and water vapor, as well as liquid media such as water, refrigerant, and oil, and can be used for vacuum.
The setting value of TL0202 pressure switch (medium pressure)/pressure controller is adjustable, with a range of -0.1 to 2.5 MPa. If there are special requirements, an additional adjustment range of -0.1 to 6.3 MPa can be designed.


Main Technical Performance


 Common Explosion proof type
Working viscosity <1×10－3m2/s <1×10－3m2/s
Switching element microswitch Sealed switch
Explosion proof grade - Exde Ⅱ CT4～T6
Degrees of protection provided by enclosure IP65(Compliant with DIN40050 and equivalent to IP65 in GB4208) IP54(Compliant with DIN40050 and equivalent to IP54 in GB4208)
Ambient temperature －40℃～50℃ －40℃～50℃
Medium temperature 0～120℃ 0～120℃
Installation position - Pressure interface vertically downward
Anti-Vibration Performance TL0202:40m/s2 ；TL0203:20m/s2 Max:20m/s2
Repeatability error ≤1% ≤1 %
Contact capacity AC  220V  6A(Resistive) DC  250V  0.25A(Resistive)  60Wmax AC  250V  5A(Resistive)  1250VAmax


Specifications
TL0202 switching error is not adjustable

Setting value adjustment range
(MPa)		 Switching difference not exceeding (MPa) Allowable pressure ① (MPa)

Switching frequency/

minute

 Pressure sensor material Internal thread of interface

Weight

(kg)

 Outline dimension drawing number Order catalog number
Casing Diaphragm Common Explosion proof type Common Explosion proof type

－0.1～0
0.007
1
20
brass		 stainless steel(316L)
G1/4
1.0
01
04
TL0202.10-106066
TL0202.50-106066

－0.1～0.1
0.008
1
20
brass		 stainless steel(316L)
G1/4
1.0
01
04
TL0202.10-105066
TL0202.50-105066

－0.1～0.16
0.009
1
20
brass		 stainless steel(316L)
G1/4
1.0
01
04
TL0202.10-104066
TL0202.50-104066

－0.1～0.25
0.012
1
20
brass		 stainless steel(316L)
G1/4
1.0
01
04
TL0202.10-103066
TL0202.50-103066

0～0.1
0.008
1
20
brass		 stainless steel(316L)
G1/4
1.0
01
04
TL0202.10-110066
TL0202.50-110066

0～0.16
0.009
1
20
brass		 stainless steel(316L)
G1/4
1.0
01
04
TL0202.10-111066
TL0202.50-111066

0.01～0.25
0.01
1
20
brass		 stainless steel(316L)
G1/4
1.0
01
04
TL0202.10-145066
TL0202.50-145066

0.02～0.4
0.03
2
20
brass		 stainless steel(316L)
G1/4
0.85
02
05
TL0202.10-151066
TL0202.50-151066

0.03～0.6
0.035
2
20
brass		 stainless steel(316L)
G1/4
0.85
02
05
TL0202.10-156066
TL0202.50-156066

0.03～1
0.04
2
20
brass		 stainless steel(316L)
G1/4
0.85
02
05
TL0202.10-158066
TL0202.50-158066

0.05～1.6
0.08
5
20
brass		 stainless steel(316L)
G1/4
0.9
03
06
TL0202.10-167066
TL0202.50-167066

0.05～2.5
0.09
5
20
brass		 stainless steel(316L)
G1/4
0.9
03
06
TL0202.10-169066
TL0202.50-169066


TL0202 switching difference adjustable

Setting value adjustment range
(MPa)		 Switching difference not exceeding (MPa) Allowable pressure ① (MPa)

Switching frequency/

minute

 Pressure sensor material Internal thread of interface

Weight

(kg)

 Outline dimension drawing number Order catalog number
Casing Diaphragm Common Explosion proof type Common Explosion proof type

－0.1～0
0.019
1
20
brass		 stainless steel(316L)
G1/4
1.05
01
04
TL0202.00-106066
TL0202.40-106066

－0.1～0.1
0.021
1
20
brass		 stainless steel(316L)
G1/4
1.05
01
04
TL0202.00-105066
TL0202.40-105066

－0.1～0.16
0.022
1
20
brass		 stainless steel(316L)
G1/4
1.05
01
04
TL0202.00-104066
TL0202.40-104066

－0.1～0.25
0.024
1
20
brass		 stainless steel(316L)
G1/4
1.05
01
04
TL0202.00-103066
TL0202.40-103066

0～0.1
0.016
1
20
brass		 stainless steel(316L)
G1/4
1.05
01
04
TL0202.00-110066
TL0202.40-110066

0～0.16
0.02
1
20
brass		 stainless steel(316L)
G1/4
1.05
01
04
TL0202.00-111066
TL0202.40-111066

0.01～0.25
0.024
1
20
brass		 stainless steel(316L)
G1/4
1.05
01
04
TL0202.00-145066
TL0202.40-145066

0.02～0.4
0.08
2
20
brass		 stainless steel(316L)
G1/4
0.9
02
05
TL0202.00-151066
TL0202.40-151066

0.03～0.6
0.09
2
20
brass		 stainless steel(316L)
G1/4
0.9
02
05
TL0202.00-156066
TL0202.40-156066

0.03～1
0.1
2
20
brass		 stainless steel(316L)
G1/4
0.9
02
05
TL0202.00-158066
TL0202.40-158066

0.05～1.6
0.19
5
20
brass		 stainless steel(316L)
G1/4
0.95
03
06
TL0202.00-167066
TL0202.40-167066

0.05～2.5
0.2
5
20
brass		 stainless steel(316L)
G1/4
0.95
03
06
TL0202.00-169066
TL0202.40-169066


TL0203 switching difference is not adjustable (small switching difference, no explosion-proof type)

Setting value adjustment range
(MPa)		 Switching difference not exceeding (MPa) Allowable pressure ① (MPa)

Switching frequency/

minute

 Pressure sensor material Internal thread of interface

Weight

(kg)

 Outline dimension drawing number Order catalog number
Casing Diaphragm
－0.1～0
0.0045
1
20
brass		 stainless steel(316L)
G1/4
1.0
01
TL0203.70-106066
－0.1～0.1
0.005
1
20
brass		 stainless steel(316L)
G1/4
1.0
01
TL0203.70-105066
－0.1～0.16
0.0065
1
20
brass		 stainless steel(316L)
G1/4
1.0
01
TL0203.70-104066
－0.1～0.25
0.01
1
20
brass		 stainless steel(316L)
G1/4
1.0
01
TL0203.70-103066
0～0.1
0.0045
1
20
brass		 stainless steel(316L)
G1/4
1.0
01
TL0203.70-110066
0～0.16
0.006
1
20
brass		 stainless steel(316L)
G1/4
1.0
01
TL0203.70-111066
0.01～0.25
0.007		 1
20
brass		 stainless steel(316L)
G1/4
1.0
01
TL0203.70-145066
0.02～0.4
0.016		 2
20
brass		 stainless steel(316L)
G1/4
0.85
02
TL0203.70-151066
0.03～0.6
0.02		 2
20
brass		 stainless steel(316L)
G1/4
0.85
02
TL0203.70-156066
0.03～1
0.03		 2
20
brass		 stainless steel(316L)
G1/4
0.85
02
TL0203.70-158066
0.05～1.6
0.05		 5
20
brass		 stainless steel(316L)
G1/4
0.85
02
TL0203.70-167066
0.05～2.5
0.06		 5
20
brass		 stainless steel(316L)
G1/4
0.85
02
TL0203.70-169066


01

TL0202 Pressure Switch Medium Pressure Adjustable Pressure Controller 0

02

TL0202 Pressure Switch Medium Pressure Adjustable Pressure Controller 1

03

TL0202 Pressure Switch Medium Pressure Adjustable Pressure Controller 2

04

TL0202 Pressure Switch Medium Pressure Adjustable Pressure Controller 3

05

TL0202 Pressure Switch Medium Pressure Adjustable Pressure Controller 4

06

TL0202 Pressure Switch Medium Pressure Adjustable Pressure Controller 5
