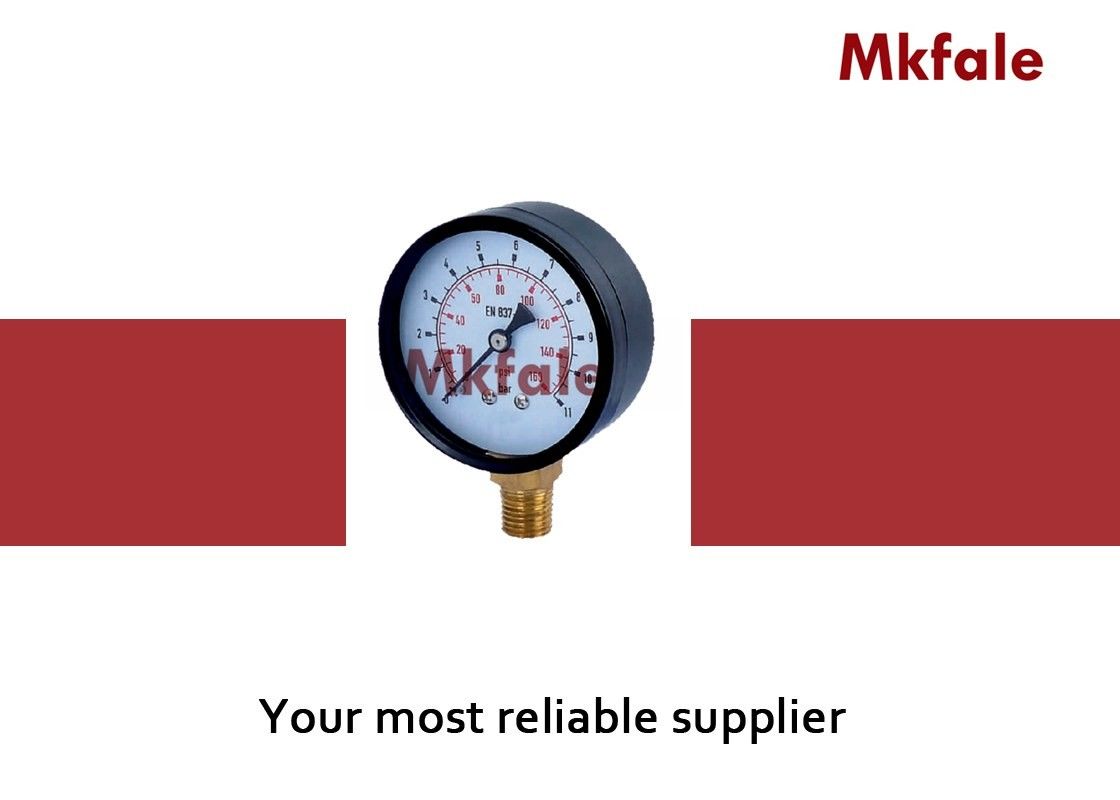

SMTB General Purpose Pressure Gauge SMTB Black Steel Case G / NPT / Other Thread
SMTB Black Steel Case General Purpose Pressure Gauge ,
SMCB Chromed Steel Case General Purpose Pressure Gauge ,
SMPB Plastic Case Steel Case General Purpose Pressure Gauge ,
SMTBS Steel Case Capsule Gauge ,
SMCBS Steel Case Capsule Gauge .
Technical Specification Table
| GENERAL PURPOSE PRESSURE GAUGE |
SMTB Black Steel Case |
SMCB Chromed Steel Case |
SMPB Plastic Case |
| Application |
SMTB,SMCB,SMPB series are the quality dry gauge designed to provide reliable serice on
non-corrosive and clean gaseous applications. The model are mostly used in manufacturing
or processing industrial,especially for pneumatics,,process,fabrication,compressed gas and
common industrial applicationl.
|
| Features |
Accuracy class 1.6 or 2.5, General industrial service application
Black steel case;chromed steel case;Plastic case.
Eelded back and front flange, Screw fastening case design
Over pressure up to 30% of Full Scale
Restrictor screw standard, Design scale ranges up to 600 bar
|
| Technical Specification |
Nominal Size |
40,50,63,75,100,150,200,250mm |
| Accuracy Class |
40..75mm-Class 2.5, 100..250mm-class 1.6 |
| Ingress Protection. |
IP32 |
| Connection Size |
G1/8,G1/4,G1/2 or NPT or others. |
| Scale Range |
Pressure 0..600 bar, Vacuum -1 bar..0, Compound -1..24 bar |
| Filling |
Dry type |
| Tube Element Shape |
P≥100 bar in c tube, P＞100 bar in helicoil |
| Operating Temperature |
Ambient temperature -10° ..+70° C, Medium temperature 70° C Max. |
| Operating Temperature |
Additional error when pressure element tmperature
deviates from reference temperature +20° C(+68° F), be ±0.4%/10° C(50° F) rising or falling
|
| Over Pressure Limit |
130% of F.S.P≤100 bar, 115% of F.S.P＞100bar |
| Dial Graduation |
Black graduation on white for single range, Black and red graduation on white for dual ranges |
| Design Material |
Casing and Bezel Ring |
Black Steel(SMTB series), Chromed steel(SMCB series), Plastic(SMPB series) |
| Casing and Bezel Ring |
Copper alloy |
| connection |
Brass |
| Window |
Acrylic plastic/Instrument glass |
| Window gasket |
Plastic |
| Pointer |
Black painted aluminium |
| Dial Plate |
Aluminium alloy |
Why choose us
1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Provide free products information .
5: Reliable quality assured and active after-sell service
Q: Could you offer the free samples ?
A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055
Q: What ' s your business scope ?
A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder, air and oil fitting, pressure gauge etc .
Q: What types of products you can make ?
A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .
Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?
A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.
Q: Is there a warranty available?
A: Yes, normally products is one year quality guarantee.
Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?
A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect
G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America
Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?
A: 1MPa=10bar≈145psi≈10kg
Q:What usually causes the burnout of solenoid valve coils?
A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.
Q: What should be noted for pneumatic components in high temperature or extremely cold environments?
| Focus Point |
High Temperature Environment Countermeasures |
Extreme Cold Environment Countermeasures |
| Seals |
Fluororubber, PTFE |
Low-temperature nitrile, silicone rubber, polyurethane |
| Lubrication |
High-temperature synthetic grease (low volatility) |
Low-temperature grease (low pour point, low viscosity) |
| Air Supply Treatment |
Strengthen cooling, efficient water removal |
Ultra-low dew point drying (refrigeration + adsorption type), heat tracing |
| Metal Components |
Reserve expansion clearance |
Select materials with low-temperature toughness, prevent leakage due to cold shrinkage |
| Control Components |
High heat-resistant grade coils, heat dissipation, low power consumption |
Install insulation boxes, local heating, prevent cold condensation |
| Installation |
Keep away from heat sources, add heat insulation plates |
Avoid exposure to wind and snow, wrap with thermal insulation materials |
