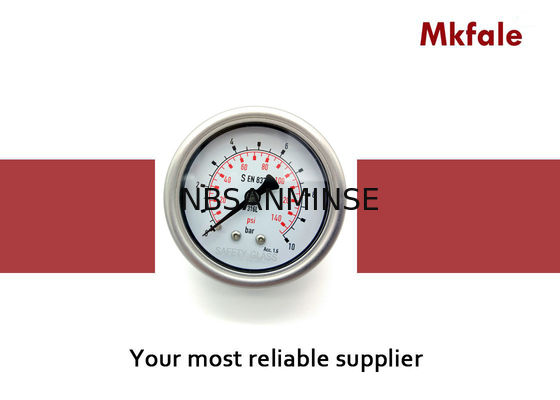

63B / L 2.5 Inch Liquid Filled Fuel Pressure Gauge Laser Welding With CE Certificate
Technical Specification Table
| LASER WELDING ALL STAINLESS STEEL PRESSURE GAUGE |
SMSS |
| Application |
SMSS Series is a premium design pressure gauge with fully stainless steel construction,liquid
fillable and with various option used in extreme corrosive & severe environment.SMSS Series
can be i ncorporate with most accessories such as Diaphragm chemical
seal,Siphon,dampener,etc.. to fur ther extend it usages.commonly,uses in Process
industries,Mining,Power plants,Steel mills,Pulp & Paper,Water & Sewage,Petrochemical
plants,etc..
|
| Features |
Accuracy class 1.0, Wide range application
All stainless steel construction, Knock-down system back and front flange
Bayonet lock case design, Over pressure up to 30% of Full Scale
Restrictor screw standard, Excellent vibration resist with liquid filling
Design scale ranges up to 600 bar
|
| Technical Specification |
Nominal Size |
63,100,150,200 and 250mm |
| Accuracy Class |
Class 1.0 |
| Ingress Protection. |
IP65(Weather tight) |
| Connection Size |
G1/4,G1/2 or NPT or others |
| Scale Range |
Pressure 0..600 bar(SMSS Series), Vacuum -1 bar..0, Compound -1..24 bar |
| Filling |
Dry or liquid filled |
| Tube Element Shape |
P≤100 bar in c tube, P＞100 bar in helicoil |
| Operating Temperature |
Ambient temperature -10° ..+70° C, Medium temperature 70° C Max. |
| Temperature |
Additional error when pressure element tmperature
deviates from reference temperature +20° C(+68° F), be ±0.4%/10° C(50° F) rising or falling
|
| Over Pressure Limit |
130% of F.S.P≤100 bar, 115% of F.S.P＞100bar |
| Dial Graduation |
Black graduation on white for single range, Black and red graduation on white for dual ranges |
| Design Material |
Casing and Bezel Ring |
SS304 |
| Sensing Element |
SS316L |
| connection |
SS316L |
| Window |
Plain instrement glass or laminated glass |
| Window gasket |
Industrial rubber seal |
| Pointer |
Black painted aluminium |
| Dial Plate |
Aluminium alloy |
| Mounting Code |
L:Bottom entry, W:Bottom with back flange, B:Back entry
F:Back with front flange, Z:Back with bracket
|
Why choose us
1: Large stock for fast shipping .
2: High quality with competitive price .
3: Sample order & small quantity order is acceptable
4: Reliable quality assured and active after-sell service
5: 12-18month quality guarantee
Q: Could you offer the free samples ?
A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055
Q: What ' s your business scope ?
A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder, air and oil fitting, pressure gauge etc .
Q: What types of products you can make ?
A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .
Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?
A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.
Q: Is there a warranty available?
A: Yes, normally products is one year quality guarantee.
Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?
A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect
G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America
Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?
A: 1MPa=10bar≈145psi≈10kg
Q:What usually causes the burnout of solenoid valve coils?
A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.
Q: What should be noted for pneumatic components in high temperature or extremely cold environments?
| Focus Point |
High Temperature Environment Countermeasures |
Extreme Cold Environment Countermeasures |
| Seals |
Fluororubber, PTFE |
Low-temperature nitrile, silicone rubber, polyurethane |
| Lubrication |
High-temperature synthetic grease (low volatility) |
Low-temperature grease (low pour point, low viscosity) |
| Air Supply Treatment |
Strengthen cooling, efficient water removal |
Ultra-low dew point drying (refrigeration + adsorption type), heat tracing |
| Metal Components |
Reserve expansion clearance |
Select materials with low-temperature toughness, prevent leakage due to cold shrinkage |
| Control Components |
High heat-resistant grade coils, heat dissipation, low power consumption |
Install insulation boxes, local heating, prevent cold condensation |
| Installation |
Keep away from heat sources, add heat insulation plates |
Avoid exposure to wind and snow, wrap with thermal insulation materials |
