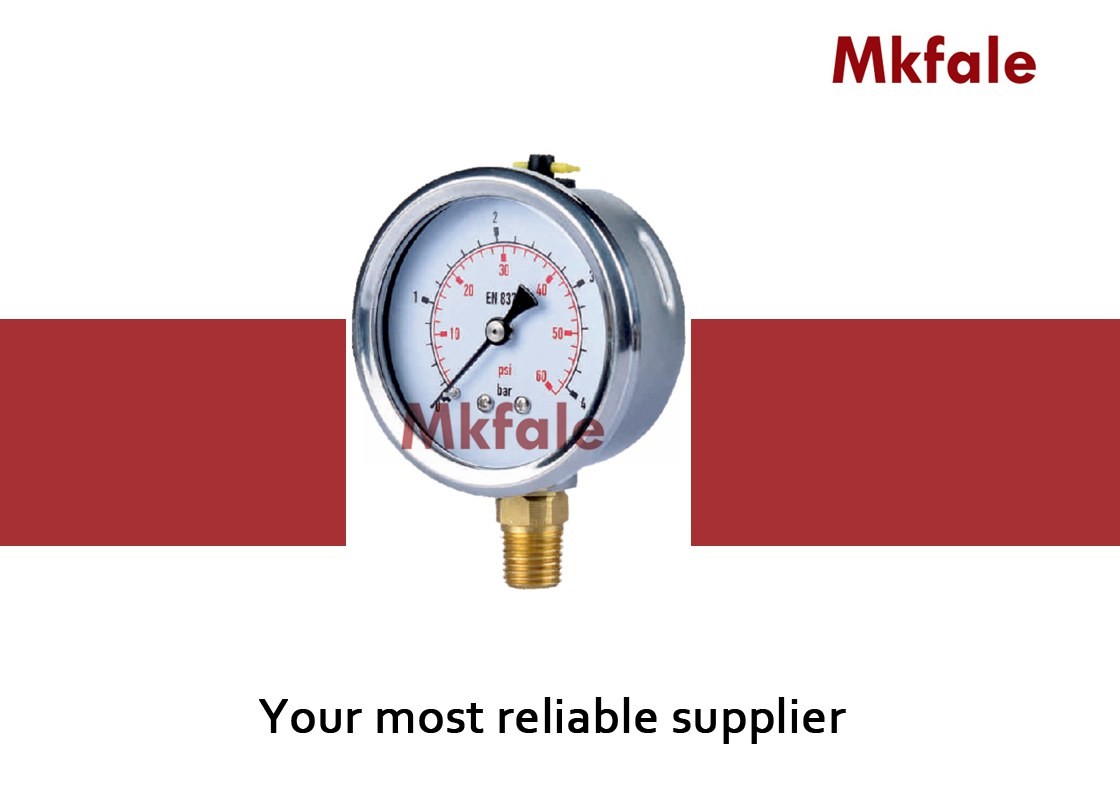

SM1SP One Piece Connection Liquid Pressure Gauge With Crimped Case

SM1SP One Piece Connection Liquid Filled Pressure Gauge With Crimped Case Design

ONE PIECE CONNECTION STAINLESS STEEL CASE DESIGN

SM1SP One piece connection with crimped case design

Features

Accuracy class 1.6,class 1.0, Wide range vibration application

Stainless steel case design, Knock-down system back and front flange

Crimped lock case design, Over pressure up to 30% of Full Scale

Restrictor screw standard, Excellent vibration resist with liquid filling

Design scale ranges up to 600 bar

Application

A special design with stainless steel case and copper alloy wetted part and fillable option for

extreme vibration aplication and non-corrosive ambient field condition,with bayonet lock

case design.applicable for pneumatic and hydraulic systems, compressors, engines, pumps,

sprinkles system,building automation system and processing unit where vibration is

concern.

Technical Specification

Nominal Size : 63,100 150mm

Accuracy Class : Class 1.6,Class 1.0(Φ>100mm)

Ingress Protection. : IP65 (Weather tight)

Connection Size : G1/4,G1/2 or NPT

Scale Range : Pressure 0..1000 bar, Vacuum -1 bar..0, Compound -1..24 bar

Tube Element Shape : P≤100 bar in c tube, P＞100 bar in helicoil

Filling : Dry or liquid filled

Operating Temperature : Ambient temperature -10° ..+70° C, Medium temperature 90° C Max.

Temperature Error : Additional error when pressure element tmperature deviates from reference temperature +20° C(+68° F), be ±0.4%/10° C(50° F) rising or falling

Over Pressure Limit : 130% of F.S.P≤100 bar, 115% of F.S.P＞100bar

Dial Graduation : Black graduation on white for single range, Black and red graduation on white for dual ranges

Design Material

Casing and Bezel Ring : Casing and Bezel Ring, SS304

Sensing Element : Copper alloy

Connection : Brass

Window : Tempered glass(SM1SB Series), Plastic(SM1SP Series)

Window gasket : Industrial rubber seal.

Pointer : Black painted aluminium

Dial Plate : Aluminium alloy

Mounting Code : L:Bottom entry, W:Bottom with back flange,

B:Back entry(centre-back,cower-back)

F:Back with front flange, Z:Back with bracket

Why choose us

1: Customize according to your special request .
2: Provide free products information .
3: Reliable quality assured and active after-sell service
4: One year quality guarantee

5: High quality with competitive price .
