ZDZ23-ZDX23 series textile plastic combination valve
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Minimum Order Quantity : | 20 | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Plastic Bags , Boxes , Carton , Pallet or As Customer Advice | Delivery Time : | Negotiation |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 8888 pcs year |
| Place of Origin: | CHINA | Brand Name: | NBSANMIINSE |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | SY5000 SMC Type |
|
Detail Information |
|||
| Fluid: | Air | Action: | Internal Pilot |
|---|---|---|---|
| Pressure: | 0.15 ~ 0.7 MPa | Temperature: | -10 ~ 50 ℃ |
| Port Size: | 1 / 8 " | Voltage: | AC220V DC24V |
| Thread: | Rc / G / NPT / NPTF | Position: | 2 / 5 , 3 / 5 |
| Highlight: | pneumatic directional control valve,pneumatic electric valve |
||
Product Description

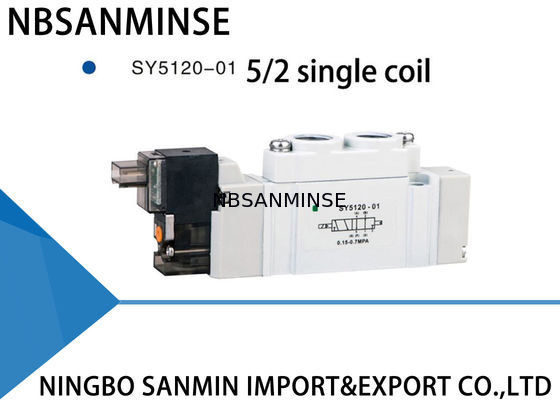

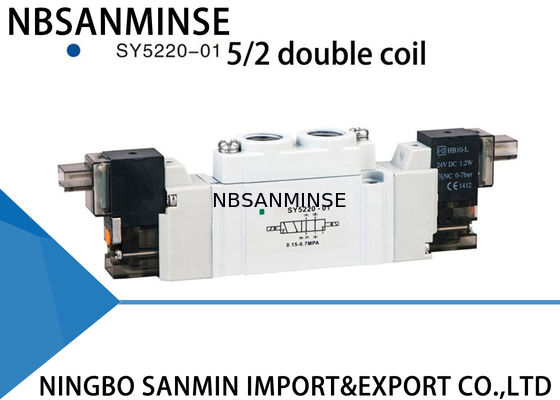

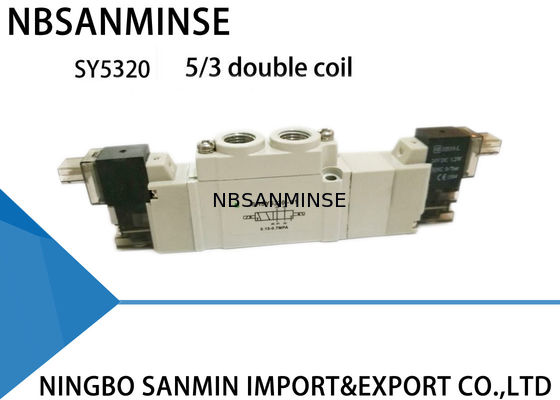

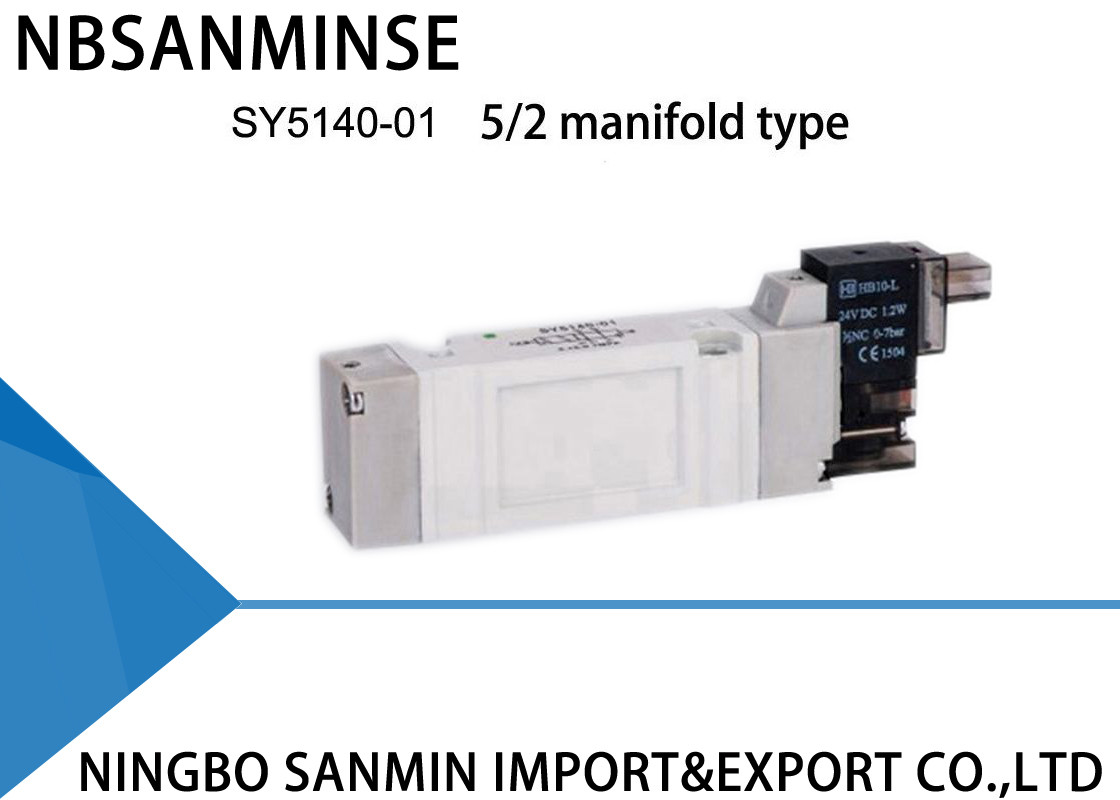

SY5000 Mini Pneumatic Solenoid Valve 220VAC Dustproof 5 / 2 5 / 3 Position
SY 3120 - M5 , SY3220 - M5 , SY 3140 - M5 , SY 3320 - M5 , SY 5120 - 01 , SY 5220 - 01 ,
SY5140 - 01 , SY 5320 - 01 , SY 7120 - 02 , SY7220 - 02 , SY 7140 - 02 , SY 7320 - 02
Response Time
| Series | Type of actuator | Response time ( at the pressure of 0.5MPa ) | |
| Without light / surge Voltage suppressor |
With light / surge voltage suppressor | ||
| Type Z | |||
| SY5000 | 2 position single | 19ms or less | 26ms or less |
| 2 position double | 18ms or less | 22ms or less | |
| 3 position | 32ms or less | 38ms or less | |
Specifications
| Series | SY5000 | |
| Fluid | Air | |
| Internal Pilot Operating Pressure Range | 2 Position Single | 0 . 15 ~ 0 . 7 MPa |
| 2 Position Double | 0 . 1 ~ 0 . 7 MPa | |
| 3 Position | 0 . 2 ~ 0 . 7 MPa | |
| Ambient and fluid Temperature | - 10 ~ 50 ℃ ( No freezing ) | |
| Max . operating frequency | 2 Position Single , Double | 5 Hz |
| 3 Position | 3 Hz | |
| Manual override ( Manual operation ) | Non – locking push type | |
| Pilot exhaust method | Common exhaust type for main and pilot valve | |
| Lubrication | Not required | |
| Mounting orientation | Unrestricted | |
| Impact / Vibration resistance | 150 / 30 ( m / s ² ) | |
| Enclosure | Dustproof | |
Solenoid Specifications
| Electrical entry | L plug connector ( L ) | ||
| Coil rated voltage ( V ) | DC | 24 , 12 | |
| AC 50 / 60 Hz | 110 , 220 | ||
| Allowable voltage fluctuation ( % ) | ± 10 % of rated voltage | ||
| Power Consumption | DC | Standard | 0 . 35W ( With indicator light : 0 . 4 ) |
| Apparent Power | AC | 110V | 1 . 6V A |
| 220V | 2 . 5VA | ||
| Indicator light | LED | ||
Improved product performance and reliability with the redesigned SY series valve. The SY3000 and SY5000 have the same valve width as their predecessors, but the flow has been increased by up to 80%, allowing the valve size to be reduced. A built-in strainer in the pilot valve prevents trouble caused by foreign matter. By using H-NBR seal material for the main valve and seals, Ozone resistance has been improved. Side, top and bottom port/pipe directions are available to allow flexible installation. The SY is available in body ported or base mounted styles, and can be used individually or manifold mounted.
Why choose us
1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Customize according to your special request .
6: Provide free products information .
7: Reliable quality assured and active after-sell service
8: One year quality guarantee
FAQ
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production
sample,production sample.
Q: What ' s your business scope ?
A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve
,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check
valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick
coupler , etc .
Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from
our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid
valve / electric valve / pneumatic valve and air cylinder products and so on .
Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection
Our products are high quality with 12 month guarantee ,and support paypal payment.
