TL5228 Marine Pressure Switch Pressure Controller
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Place of Origin: | CHINA | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | CE | Model Number: | TL0102 |
|
Detail Information |
|||
| Working Viscosity: | <1×10－3m2/s | Ambient Temp.: | －5℃～40℃ |
|---|---|---|---|
Product Description
Overview

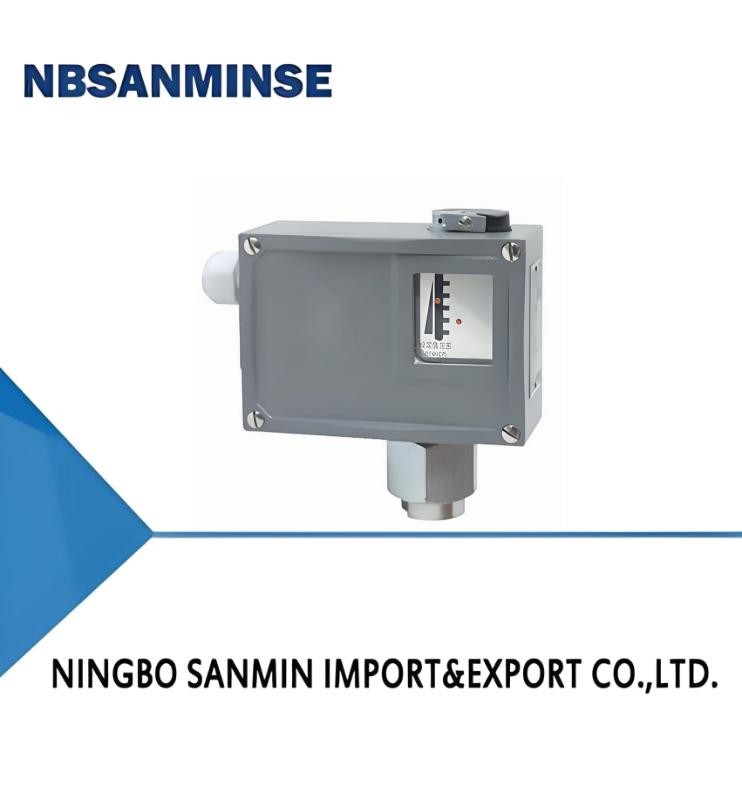

The TL0102 pressure switch adopts a diaphragm type sensor, and some specifications of the sensor housing material are stainless steel, which can be used for corrosive media, as well as neutral gases such as air, gas, water vapor, and liquid media such as oil.
The setting value of TL0102 pressure switch is adjustable, with a range of 0-1MPa. High sensitivity control in low voltage range.
Main Technical Performance
| Common | Explosion proof type | |
|---|---|---|
| Working viscosity | <1×10－3m2/s | <1×10－3m2/s |
| Switching element | microswitch | Sealed switch |
| Explosion proof grade | - | Exde Ⅱ CT4～T6 |
| Degrees of protection provided by enclosure | IP65(Compliant with DIN40050 and equivalent to IP65 in GB4208) | IP54(Compliant with DIN40050 and equivalent to IP54 in GB4208) |
| Ambient temperature | －5℃～40℃ | －5℃～40℃ |
| Medium temperature | 0～120℃ | 0～95℃ |
| Installation position | - | Pressure interface vertically downward |
| Anti-Vibration Performance | 20m/s2 | Max:20m/s2 |
| Repeatability error | ≤1.5% | ≤1.5% |
| Contact capacity | AC 220V 6A(Resistive) | DC 250V 0.25A(Resistive) 60Wmax AC 250V 5A(Resistive) 1250VAmax |
Specifications
TL0102 switching error is not adjustable
| Setting value adjustment range (MPa) |
Switching difference not exceeding (MPa) | **Allowable pressure ① (MPa) | Switching frequency/minute | Pressure sensor material | Internal thread of interface |
Weight (kg) |
Outline dimension drawing number | Order catalog number | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Casing | Diaphragm | Common | Explosion proof type | Common | Explosion proof type | ||||||
| 0～0.01 | 0.0012 | 0.1 | 10 | stainless steel | stainless steel(316L) | G1/4 | 0.9 | 01 | 03 | TL0102.10-107117 | TL0102.50-107117 |
| 0～0.025 | 0.0018 | 0.1 | 10 | stainless steel | stainless steel(316L) | G1/4 | 0.9 | 01 | 03 | TL0102.10-108117 | TL0102.50-108117 |
| 0～0.04 | 0.0025 | 0.1 | 10 | stainless steel | stainless steel(316L) | G1/4 | 0.9 | 01 | 03 | TL0102.10-109117 | TL0102.50-109117 |
| 0.05～0.4 | 0.06 | 10② | 10 | stainless steel1Cr18Ni9Ti | stainless steel(316L) | G1/4 | 0.9 | 02 | 04 | TL0102.10-163117 | TL0102.50-163117 |
| 0.05～0.6 | 0.07 | 10② | 10 | stainless steel1Cr18Ni9Ti | stainless steel(316L) | G1/4 | 0.9 | 02 | 04 | TL0102.10-164117 | TL0102.50-164117 |
| 0.05～1 | 0.1 | 10② | 10 | stainless steel1Cr18Ni9Ti | stainless steel(316L) | G1/4 | 0.9 | 02 | 04 | TL0102.10-166117 | TL0102.50-166117 |
TL0102 switch difference adjustable
| Setting value adjustment range (MPa) |
Switching difference not exceeding (MPa) | **Allowable pressure ① (MPa) | Switching frequency/minute | Pressure sensor material | Internal thread of interface |
Weight (kg) |
Outline dimension drawing number | Order catalog number | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Casing | Diaphragm | Common | Explosion proof type | Common | Explosion proof type | ||||||
| 0～0.01 | 0.004 | 0.1 | 10 | stainless steel | stainless steel(316L) | G1/4 | 0.95 | 01 | 03 | TL0102.00-107117 | TL0102.40-107117 |
| 0～0.025 | 0.005 | 0.1 | 10 | stainless steel | stainless steel(316L) | G1/4 | 0.9 | 01 | 03 | TL0102.00-108117 | TL0102.40-108117 |
| 0～0.04 | 0.007 | 0.1 | 10 | stainless steel | stainless steel(316L) | G1/4 | 0.95 | 01 | 03 | TL0102.00-109117 | TL0102.40-109117 |
| 0.05～0.4 | 0.18 | 10② | 10 | stainless steel1Cr18Ni9Ti | stainless steel(316L) | G1/4 | 0.95 | 02 | 04 | TL0102.00-163117 | TL0102.40-163117 |
| 0.05～0.6 | 0.22 | 10② | 10 | stainless steel1Cr18Ni9Ti | stainless steel(316L) | G1/4 | 0.95 | 02 | 04 | TL0102.00-164117 | TL0102.40-164117 |
| 0.05～1 | 0.3 | 10② | 10 | stainless steel1Cr18Ni9Ti | stainless steel(316L) | G1/4 | 0.95 | 02 | 04 | TL0102.00-166117 | TL0102.40-166117 |
TL0103 switching difference is not adjustable (small switching difference, no explosion-proof type)
| Setting value adjustment range (MPa) |
Switching difference not exceeding (MPa) | **Allowable pressure ① (MPa) | Switching frequency/minute | Pressure sensor material | Internal thread of interface |
Weight (kg) |
Outline dimension drawing number | Order catalog number | |
|---|---|---|---|---|---|---|---|---|---|
| Casing | Diaphragm | ||||||||
| 0～0.01 | 0.0006 | 0.1 | 10 | stainless steel | stainless steel(316L) | G1/4 | 0.9 | 01 | TL0103.70-107117 |
| 0～0.025 | 0.001 | 0.1 | 10 | stainless steel | stainless steel(316L) | G1/4 | 0.9 | 01 | TL0103.70-108117 |
| 0～0.04 | 0.0018 | 0.1 | 10 | stainless steel | stainless steel(316L) | G1/4 | 0.9 | 01 | TL0103.70-109117 |
| 0.05～0.4 | 0.035 | 10② | 10 | stainless steel1Cr18Ni9Ti | stainless steel(316L) | G1/4 | 0.9 | 02 | TL0103.70-163117 |
| 0.05～0.6 | 0.04 | 10② | 10 | stainless steel1Cr18Ni9Ti | stainless steel(316L) | G1/4 | 0.9 | 02 | TL0103.70-164117 |
| 0.05～1 | 0.05 | 10② | 10 | stainless steel1Cr18Ni9Ti | stainless steel(316L) | G1/4 | 0.9 | 02 | TL0103.70-166117 |
Note: In practical work, even a brief peak pressure cannot exceed this value.
② Refers to the static pressure value.
