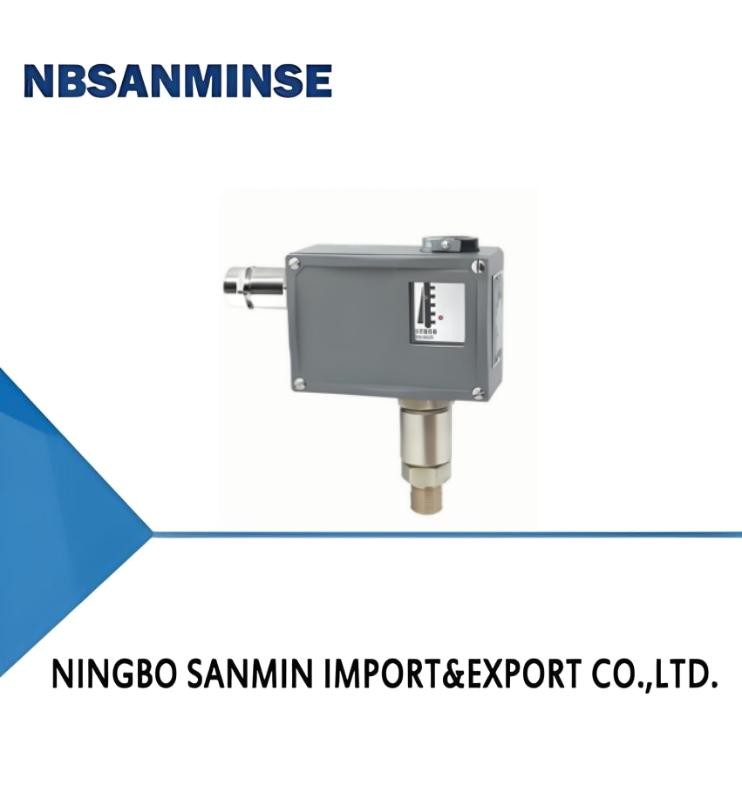

TL5123 pressure switch (high pressure) pressure controller

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Certification:	CE	Model Number:	TL5123

Detail Information
Working Viscosity:	<1×10－3m2/s	Ambient Temp.:	－20℃～40℃

Product Description

Overview
The TL5123 pressure switch (high pressure)/pressure controller adopts a combination of piston and diaphragm sensors, which can be used for compressed air containing oil mist and other non corrosive oil mist gases and hydraulic oils, water oil emulsions, and medium liquid media with good lubrication performance.
The setting value of TL5123 pressure switch (high pressure)/pressure controller is adjustable, with an adjustment range of 0.3~40MPa.

Main Technical Performance

	Common	Explosion proof type
Working viscosity	<1×10^－3m²/s	<1×10^－3m²/s
Switching element	microswitch	Sealed switch
Explosion proof grade	-	Exde Ⅱ CT4～T6 Certificate Number: GYB24.1453X
Degrees of protection provided by enclosure	Sealed ring with groove IP54, O-ring IP65(Compliant with DIN40050, equivalent to IP65 in GB4208)	Sealed ring with groove IP54, O-ring IP65 (compliant with DIN40050, equivalent to IP65 in GB4208)
Ambient temperature	－20℃～40℃	－20℃～40℃
Medium temperature	0℃～100℃	0℃～120℃
Installation position	The pressure interface is vertically downward (allowing for a tilt of 15 °)	The pressure interface is vertically downward (allowing for a tilt of 15 °)
Anti-Vibration Performance	Max:40 m/s²	Max:20 m/s²
Repeatability error	≤2.5%	≤2.5%
Contact capacity	AC 220V 6A(Resistive)	DC 250V 0.25A (Resistive) 60Wmax AC 220V 6A(Resistive) 1250VAmax

Specifications
TL5123 switching error is not adjustable

Setting value adjustment range (MPa)	Switching difference not exceeding (MPa)	**Allowable pressure ① (MPa)	Switching frequency/minute	Pressure sensor material			Interface thread ②	Weight (kg)	Outline dimension drawing number	Order catalog number
Setting value adjustment range (MPa)	Switching difference not exceeding (MPa)	**Allowable pressure ① (MPa)	Switching frequency/minute	Casing	Diaphragm	Piston	Interface thread ②	Weight (kg)	Outline dimension drawing number	Common	Explosion proof type
0.3～4	0.9	30	20	brass	VITON	steel	M20*1.5	0.8	01	TL5123.10-191051	TL5123.50-191051
0.5～6.3	1.3	30	20	brass	VITON	steel	M20*1.5	0.8	01	TL5123.10-200051	TL5123.50-200051
0.5～10	1.6	30	20	brass	VITON	steel	M20*1.5	0.8	01	TL5123.10-202051	TL5123.50-202051
0.5～16	1.9	30	20	brass	VITON	steel	M20*1.5	0.8	01	TL5123.10-203051	TL5123.50-203051
1～25	2.5	30	30	brass	VITON	steel	M20*1.5	0.8	02	TL5123.10-215051	TL5123.50-215051
1～40	2.8	60	30	brass	VITON	steel	M20*1.5	0.8	02	TL5123.10-216051	TL5123.50-216051

TL5123 switch difference adjustable

Setting value adjustment range (MPa)	Switching difference not exceeding (MPa)	**Allowable pressure ① (MPa)	Switching frequency/minute	Pressure sensor material			Interface thread ②	Weight (kg)	Outline dimension drawing number	Order catalog number
Setting value adjustment range (MPa)	Switching difference not exceeding (MPa)	**Allowable pressure ① (MPa)	Switching frequency/minute	Casing	Diaphragm	Piston	Interface thread ②	Weight (kg)	Outline dimension drawing number	Order catalog number
0.3～4	1.3	30	20	brass	VITON	steel	M20*1.5	0.85	01	TL5123.00-191051	TL5123.40-191051
0.5～6.3	1.6	30	20	brass	VITON	steel	M20*1.5	0.85	01	TL5123.00-200051	TL5123.40-200051
0.5～10	1.6	30	20	brass	VITON	steel	M20*1.5	0.85	01	TL5123.00-202051	TL5123.40-202051
0.5～16	2.2	30	20	brass	VITON	steel	M20*1.5	0.85	01	TL5123.00-203051	TL5123.40-203051
1～25	2.8	30	30	brass	VITON	steel	M20*1.5	0.85	02	TL5123.00-215051	TL5123.40-215051
1～40	4	60	30	brass	VITON	steel	M20*1.5	0.85	02	TL5123.00-216051	TL5123.40-216051

Note: In practical work, even brief pressure peaks are not allowed to exceed this value.
