TL5228 Marine Pressure Switch Pressure Controller
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Place of Origin: | CHINA | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | CE | Model Number: | TL0205 |
|
Detail Information |
|||
| Working Viscosity: | <1×10－3m2/s | Service Life: | 105 Times |
|---|---|---|---|
| Ambient Temp.: | －25℃～55℃ | Medium Temp.: | －25℃～80℃ |
| Repeatability Error: | ≤1% | Pressure Resistance: | 150% |
Product Description
Overview

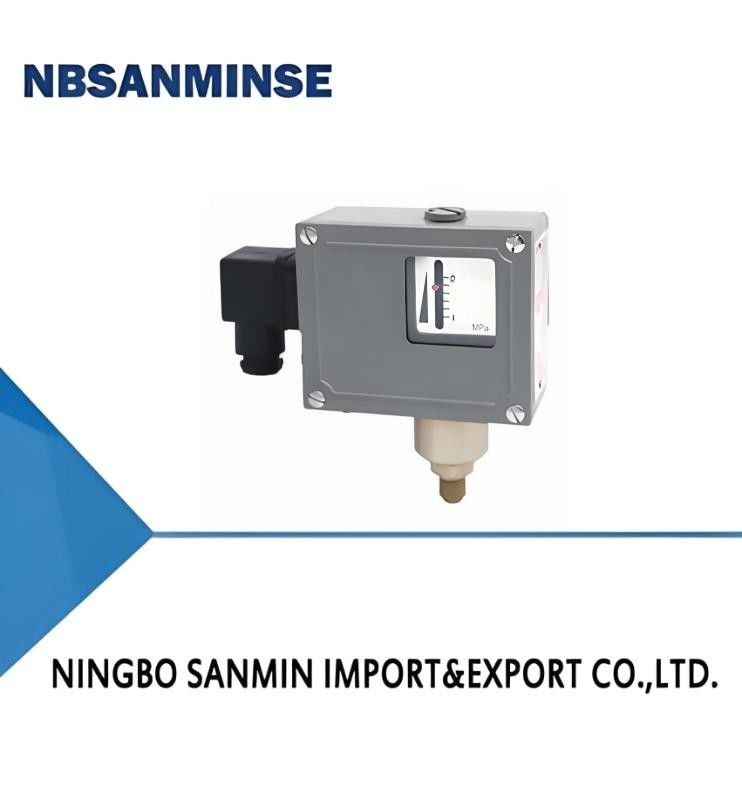

The TL0205 (small) pressure switch/controller adopts a bellows sensor, which can be used for neutral gases such as air, gas, water, and liquid media such as lubricating oil and light fuel oil.
The setting value of TL0205 (small) pressure switch/pressure controller is adjustable, with a range of -0.1~4MPa. The TL0205 (small) pressure switch/pressure controller is made of cast aluminum shell, which is waterproof and meets the requirements for marine use. Small scale design; Non adjustable backup with small switching difference.
Main Technical Performance
| Working viscosity | <1×10－3m2/s |
|---|---|
| Service life | 105 times |
| Ambient temperature | －25℃～55℃ |
| Medium temperature | －25℃～80℃ |
| Anti-Vibration Performance | 40m/s2 |
| Repeatability error | ≤1% |
| Contact capacity | AC 380V 3A(Resistive)AC 220V 6A(Resistive) |
| Pressure resistance | 150% |
Specifications
Switching difference is not adjustable
| Setting value adjustment range (MPa) |
Switching difference not exceeding (MPa) | **Allowable pressure ① (MPa) | Switching frequency/minute | Pressure sensor material | Order catalog number | |
|---|---|---|---|---|---|---|
| Casing | Corrugated tube | |||||
| －0.1～0 | 0.007 | 0.5 | 20 | brass |
stainless steel(316L) | TL0205.10-106071 |
| 0～0.1 | 0.008 | 0.5 | 20 | brass |
stainless steel(316L) | TL0205.10-110071 |
| 0.01～0.25 | 0.01 | 0.5 | 20 | brass |
stainless steel(316L) | TL0205.10-145071 |
| 0.01～0.3 | 0.01 | 0.5 | 20 | brass |
stainless steel(316L) | TL0205.10-146071 |
| 0.02～0.4 | 0.016 | 3.0 | 20 | brass |
stainless steel(316L) | TL0205.10-151071 |
| 0.03～0.6 | 0.035 | 3.0 | 20 | brass |
stainless steel(316L) | TL0205.10-156071 |
| 0.03～0.8 | 0.04 | 3.0 | 20 | brass |
stainless steel(316L) | TL0205.10-157071 |
| 0.03～1.0 | 0.04 | 3.0 | 20 | brass |
stainless steel(316L) | TL0205.10-158071 |
| 0.03～1.6 | 0.08 | 6.0 | 20 | brass |
stainless steel(316L) | TL0205.10-159071 |
| 0.05～2.5 | 0.09 | 6.0 | 20 | brass |
stainless steel(316L) | TL0205.10-169071 |
| 0.05～3.0 | 0.14 | 6.0 | 20 | brass |
stainless steel(316L) | TL0205.10-170071 |
| 0.05～4.0 | 0.2 | 6.0 | 20 | brass |
stainless steel(316L) | TL0205.10-171071 |
Switching difference is not adjustable (small switching difference)
| Setting value adjustment range (MPa) |
Switching difference not exceeding (MPa) | **Allowable pressure ① (MPa) | Switching frequency/minute | Pressure sensor material | Order catalog number | |
|---|---|---|---|---|---|---|
| Casing | Corrugated tube | |||||
| －0.1～0 | 0.0045 | 0.5 | 20 | brass |
stainless steel(316L) | TL0205.70-106071 |
| 0～0.1 | 0.0025 | 0.5 | 20 | brass |
stainless steel(316L) | TL0205.70-110071 |
| 0.01～0.25 | 0.01 | 0.5 | 20 | brass |
stainless steel(316L) | TL0205.70-145071 |
| 0.01～0.3 | 0.01 | 0.5 | 20 | brass |
stainless steel(316L) | TL0205.70-146071 |
| 0.02～0.4 | 0.014 | 3.0 | 20 | brass |
stainless steel(316L) | TL0205.70-151071 |
| 0.03～0.6 | 0.016 | 3.0 | 20 | brass |
stainless steel(316L) | TL0205.70-156071 |
| 0.03～0.8 | 0.02 | 3.0 | 20 | brass |
stainless steel(316L) | TL0205.70-157071 |
| 0.03～1.0 | 0.03 | 3.0 | 20 | brass |
stainless steel(316L) | TL0205.70-158071 |
| 0.03～1.6 | 0.035 | 6.0 | 20 | brass |
stainless steel(316L) | TL0205.70-159071 |
| 0.05～2.5 | 0.04 | 6.0 | 20 | brass |
stainless steel(316L) | TL0205.70-169071 |
| 0.05～3.0 | 0.05 | 6.0 | 20 | brass |
stainless steel(316L) | TL0205.70-170071 |
| 0.05～4.0 | 0.06 | 6.0 | 20 | brass |
stainless steel(316L) | TL0205.70-171071 |
