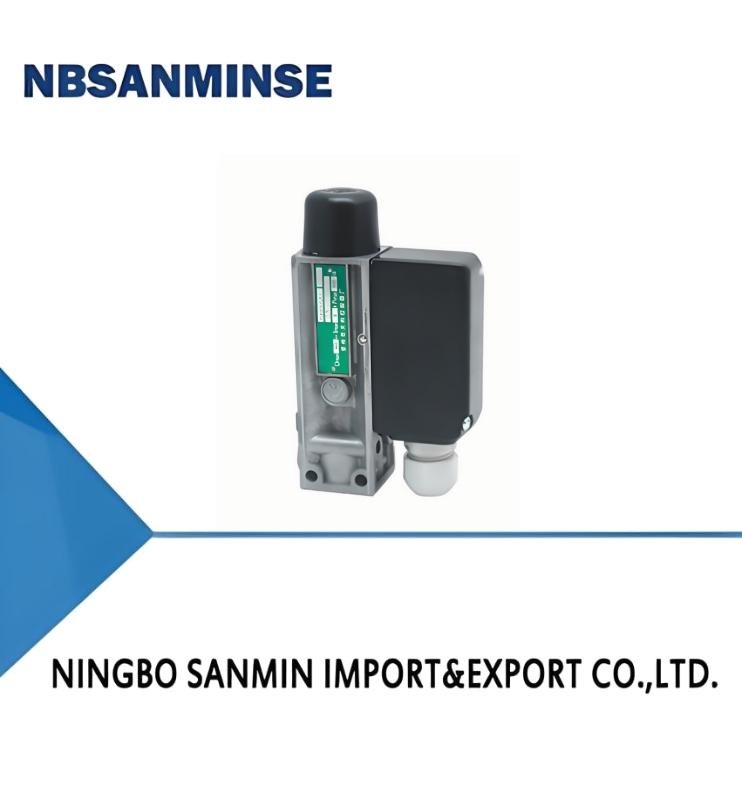

TL5228 Marine Pressure Switch Pressure Controller
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Place of Origin: | CHINA | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | CE | Model Number: | TL0515 |
|
Detail Information |
|||
| Working Viscosity: | <1×10－3m2/s | Switching Element: | Microswitch |
|---|---|---|---|
| Medium Temp.: | 0～90℃ | Repeatability Error: | ±2.5% |
Product Description
Overview
The TL0515 pressure switch/controller adopts a leak free piston type sensor, which can be used for neutral gases such as oil mist compressed air, hydraulic oil, water oil emulsion, and liquid media with good lubrication performance that have no corrosive effect on pressure sensor materials.
The setting value of TL0515 pressure switch/pressure controller is adjustable, with an adjustment range of 0.5-25MPa. Compact structure, small size, and good anti vibration performance.
Main Technical Performance
| Working viscosity | <1×10－3m2/s |
|---|---|
| Switching element | Microswitch |
| degrees of protection provided by enclosure | IP54(Compliant with DIN40050 and equivalent to IP54 in GB4208) |
| Medium temperature | 0～90℃ |
| Ambient temperature | －5℃～50℃(Slotted sealing ring) －30℃～50℃(GLYdrilling sealing ring) |
| Anti-Vibration Performance | Max 100m/s2 |
| Installation position | The pressure interface is vertically downward (allowing for a tilt of 15 °) |
| Repeatability error | ±2.5% |
| Contact capacity | AC 220V 6A(Resistive) |
Specifications
Switching difference is not adjustable
| Setting value adjustment range (MPa) | Switching difference not greater than (MPa) | **Allowable pressure ① (MPa) | Switching frequency/minute | Pressure sensor material | Pressure interface type ② | Internal thread of interface | Weight (kg) | Outline dimension drawing number | Order catalog number | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Casing | Sealing ring | Piston | |||||||||
| Adjust the set value with the hexagon socket screw with plastic protective cover: | |||||||||||
| 0.5～7 | 1.2 | 25 | 20 | aluminium | Nitrile rubber | stainless steel1Cr18Ni9Ti | I | G1/4 | 0.4 | 01 | TL0515.10-201265 |
| 0.5～7 | 1.2 | 25 | 20 | aluminium | Nitrile rubber | stainless steel1Cr18Ni9Ti | P | - | 0.4 | 02 | TL0515.10-201268 |
| 1～16 | 1.8 | 25 | 20 | aluminium | Nitrile rubber | stainless steel1Cr18Ni9Ti | I | G1/4 | 0.4 | 01 | TL0515.10-212265 |
| 1～16 | 1.8 | 25 | 20 | aluminium | Nitrile rubber | stainless steel1Cr18Ni9Ti | P | - | 0.4 | 02 | TL0515.10-212268 |
| 5～25 | 1.6 | 34 | 20 | aluminium | Nitrile rubber | stainless steel1Cr18Ni9Ti | I | G1/4 | 0.4 | 01 | TL0515.10-230265 |
| 5～25 | 1.6 | 34 | 20 | aluminium | Nitrile rubber | stainless steel1Cr18Ni9Ti | P | - | 0.4 | 02 | TL0515.10-230268 |
Note: In practical work, even a brief peak pressure cannot exceed this value.
② I-interface is internal thread P-interface is flange.
③ Specification for GLydring sealing ring.
