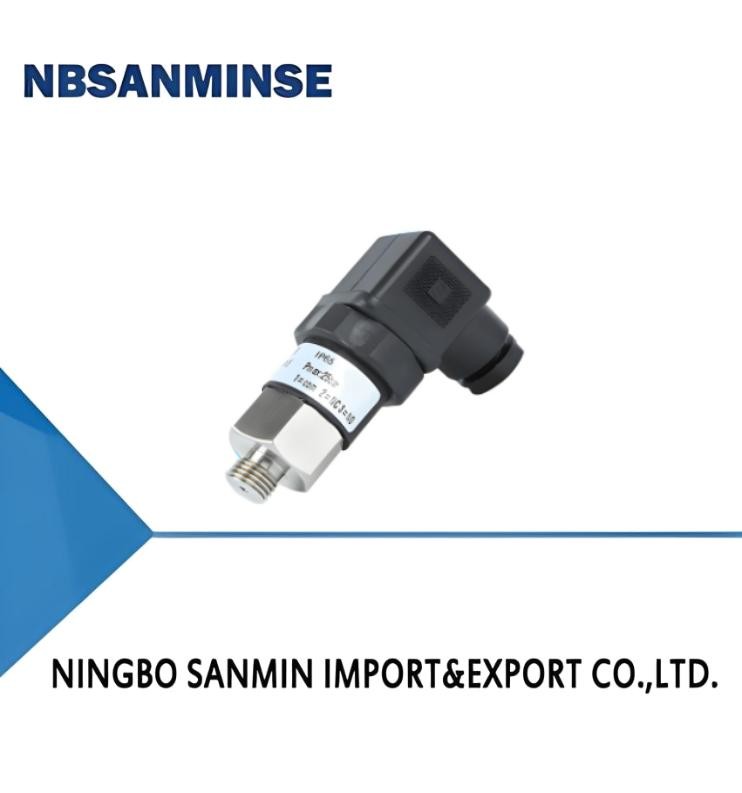

TL5228 Marine Pressure Switch Pressure Controller
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Place of Origin: | CHINA | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | CE | Model Number: | MS-T50 |
|
Detail Information |
|||
| Error: | 3% Set Value | Medium Temp.: | -20-85℃ |
|---|---|---|---|
Product Description
1, Principle and structure
The MS-T50 (exquisite) pressure switch/pressure controller has a built-in piston connected to a spring. When the pressure changes, the amount of spring expansion and contraction changes accordingly. When the pressure reaches the set value, it will trigger the preset mechanical structure and send out a switch signal.
2, Characteristics
The MS-T50 (exquisite) pressure switch/controller has a compact structure, uses DN standard plugs, is easy to wire, and has a wide measurement range. High overload capacity, high repeatability, specific normally open or normally closed contacts, gold-plated contacts, large contact capacity. Can be used for measuring water and oil pressure.
3, Technical parameters
| Measuring range | Please refer to the table below for details |
|---|---|
| Delay | 10-20% set value (25% -35%, 1% -5% optional) |
| Error | 3% set value |
| Output | Gold plating on normally open and normally closed contacts ≤DC 42V,1A ≤DC 115V,0.15A ≤AC 42V,3A ≤AC 125V,3A ≤AC 250V,0.5A |
| Medium temperature | -20-85℃ |
| Protection and Protection | IP65 |
| Connection | Terminal wiring |
| Material | Diaphragm: NBR Piston: Steel piston with NBR seal Process connection: galvanized steel/stainless steel Shell: Engineering plastic |
4, Selection Table
| Interface material | Model | **Allowable pressure (bar) | Set range (bar) | Error | Fixed hysteresis | Weight (kg) |
|---|---|---|---|---|---|---|
| Film | MS-T50-02.5 | 25 | 0.2...2.5 | 3% | 10%. . 20% set value 25%. . 35% set value (optional) 1%. . 5% set value (optional) |
0.1 |
| Film | MS-T50-005 | 25 | 0.8...5 | 3% | 10%. . 20% set value 25%. . 35% set value (optional) 1%. . 5% set value (optional) |
0.1 |
| Film | MS-T50-012 | 25 | 1...12 | 3% | 10%. . 20% set value 25%. . 35% set value (optional) 1%. . 5% set value (optional) |
0.1 |
| Film | MS-T50-050 | 200 | 5...50 | 3% | 10%. . 20% set value 25%. . 35% set value (optional) 1%. . 5% set value (optional) |
0.1 |
| piston | MS-T50-100 | 200 | 10...100 | 3% | 10%. . 20% set value 25%. . 35% set value (optional) 1%. . 5% set value (optional) |
0.1 |
| piston | MS-T50-200 | 300 | 20...200 | 3% | 10%. . 20% set value 25%. . 35% set value (optional) 1%. . 5% set value (optional) |
0.1 |
| MS-T50- | 012 | M | M12 | H | C | explain |
| MS-T50- | ||||||
| 02.5 | ||||||
| 005 | ||||||
| 012 | ||||||
| 050 | ||||||
| 100 | ||||||
| 200 | ||||||
| T | copper | |||||
| L | steel | |||||
| X | Stainless steel 304L | |||||
| G12 | Interface thread G1/2 | |||||
| G14 | Interface thread G1/4 | |||||
| N14 | Interface thread NPT1/4 | |||||
| M14 | Interface thread M14 * 1.5 | |||||
| M20 | Interface thread M20 * 1.5 | |||||
| H | Interface thread external thread | |||||
| R | Normally open+normally closed output |
5, Wiring diagram
6, Dimensional drawing
7, Installation location
8, Applicable media
9, Adjustment method
**Step: Use a screwdriver to loosen the fixing nut of the protective cover and remove the protective cover and female plug (do not rotate the Husman connector left and right when removing to avoid breaking the internal circuit).
Step 2: Adjust the size of the pressure switch point with a screwdriver as shown in the diagram, increasing it clockwise and decreasing it counterclockwise.
