TL5228 Marine Pressure Switch Pressure Controller
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Place of Origin: | CHINA | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | CE | Model Number: | TL5238 |
|
Detail Information |
|||
| Working Viscosity: | <1×10－3m2/s | Ambient Temp.: | －25℃～55℃ |
|---|---|---|---|
| Medium Temp.: | 0～95℃ | Repeatability Error: | ≤1.5% |
Product Description
Overview

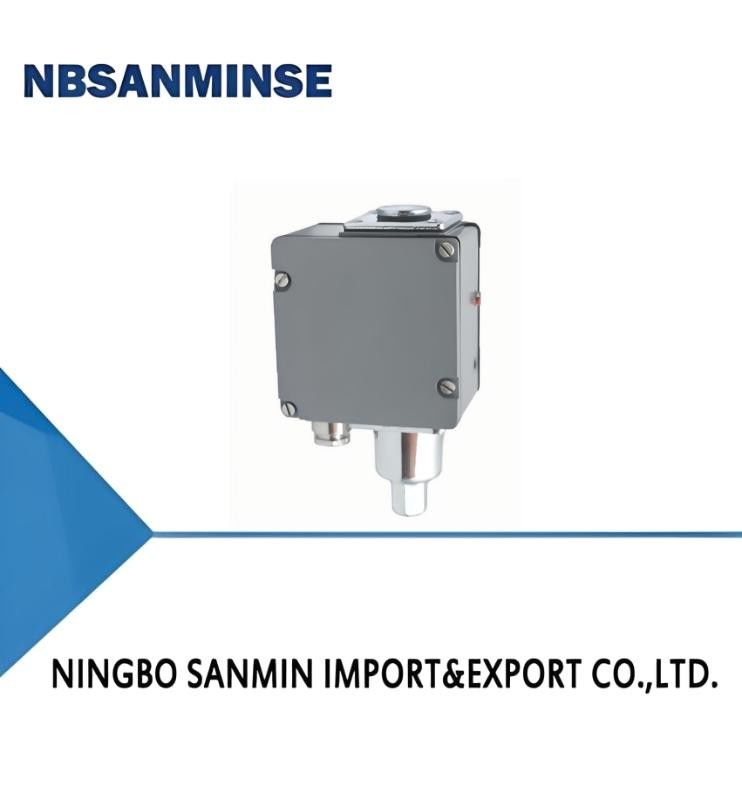

The TL5238 pressure switch/controller adopts a bellows sensor, which can be used for neutral gases such as air and steam, as well as liquid media such as water, refrigerant, and oil.
The setting value of TL5238 pressure switch/pressure controller is adjustable, with a range of 0-2MPa. The shell is made of cast aluminum and is waterproof.
Main Technical Performance
| Working viscosity | <1×10－3m2/s |
|---|---|
| Degrees of protection provided by enclosure | IP65 |
| Ambient temperature | －25℃～55℃ |
| Medium temperature | 0～95℃ |
| Repeatability error | ≤1.5% |
| Contact capacity | Vmax=380V AC Imax=6A(Resistive)Pmax=600VA |
Specifications
Switching difference is not adjustable (single pole double throw micro switch)
| Setting value adjustment range (MPa) | Switching difference not greater than (MPa) | **Allowable pressure ① (MPa) | Switching frequency/minute | Pressure sensing material | Internal thread of interface | Outline dimension drawing number | Order Code Catalog | |
|---|---|---|---|---|---|---|---|---|
| Casing | Corrugated tube | |||||||
| 0～0.1 | 0.003 | 1.2 | 20 | hpb59-1 brass | 1Cr18 Ni9Ti stainless steel | G1/4 | 01 | TL5238.10-110066 |
| 0～0.2 | 0.004 | 1.2 | 20 | hpb59-1 brass | 1Cr18 Ni9Ti stainless steel | G1/4 | 01 | TL5238.10-112066 |
| 0.02～0.4 | 0.008 | 1.2 | 20 | hpb59-1 brass | 1Cr18 Ni9Ti stainless steel | G1/4 | 01 | TL5238.10-151066 |
| 0.02～0.6 | 0.01 | 1.2 | 20 | hpb59-1 brass | 1Cr18 Ni9Ti stainless steel | G1/4 | 01 | TL5238.10-152066 |
| 0.03～0.8 | 0.012 | 1.8 | 20 | hpb59-1 brass | 1Cr18 Ni9Ti stainless steel | G1/4 | 01 | TL5238.10-157066 |
| 0.03～1.0 | 0.015 | 2.0 | 20 | hpb59-1 brass | 1Cr18 Ni9Ti stainless steel | G1/4 | 01 | TL5238.10-158066 |
| 0.05～1.6 | 0.025 | 2.5 | 20 | hpb59-1 brass | 1Cr18 Ni9Ti stainless steel | G1/4 | 01 | TL5238.10-167066 |
| 0.05～2.0 | 0.03 | 3.5 | 20 | hpb59-1 brass | 1Cr18 Ni9Ti stainless steel | G1/4 | 01 | TL5238.10-168066 |
Switching difference adjustable (single pole double throw micro switch)
| Setting value adjustment range (MPa) | Switching difference not greater than (MPa) | **Allowable pressure ① (MPa) | Switching frequency/minute | Pressure sensing material | Internal thread of interface | Outline dimension drawing number | Order Code Catalog | |
|---|---|---|---|---|---|---|---|---|
| Casing | Corrugated tube | |||||||
| 0～0.1 | 0.008 | 1.2 | 20 | hpb59-1 brass | 1Cr18 Ni9Ti stainless steel | G1/4 | 01 | TL5238.00-110066 |
| 0～0.2 | 0.01 | 1.2 | 20 | hpb59-1 brass | 1Cr18 Ni9Ti stainless steel | G1/4 | 01 | TL5238.00-112066 |
| 0.02～0.4 | 0.025 | 1.2 | 20 | hpb59-1 brass | 1Cr18 Ni9Ti stainless steel | G1/4 | 01 | TL5238.00-151066 |
| 0.02～0.6 | 0.03 | 1.2 | 20 | hpb59-1 brass | 1Cr18 Ni9Ti stainless steel | G1/4 | 01 | TL5238.00-152066 |
| 0.03～0.8 | 0.04 | 1.8 | 20 | hpb59-1 brass | 1Cr18 Ni9Ti stainless steel | G1/4 | 01 | TL5238.00-157066 |
| 0.03～1.0 | 0.05 | 2.0 | 20 | hpb59-1 brass | 1Cr18 Ni9Ti stainless steel | G1/4 | 01 | TL5238.00-158066 |
| 0.05～1.6 | 0.08 | 2.5 | 20 | hpb59-1 brass | 1Cr18 Ni9Ti stainless steel | G1/4 | 01 | TL5238.00-167066 |
| 0.05～2.0 | 0.12 | 3.5 | 20 | hpb59-1 brass | 1Cr18 Ni9Ti stainless steel | G1/4 | 01 | TL5238.00-168066 |
Note: In practical work, even a brief peak pressure cannot exceed
