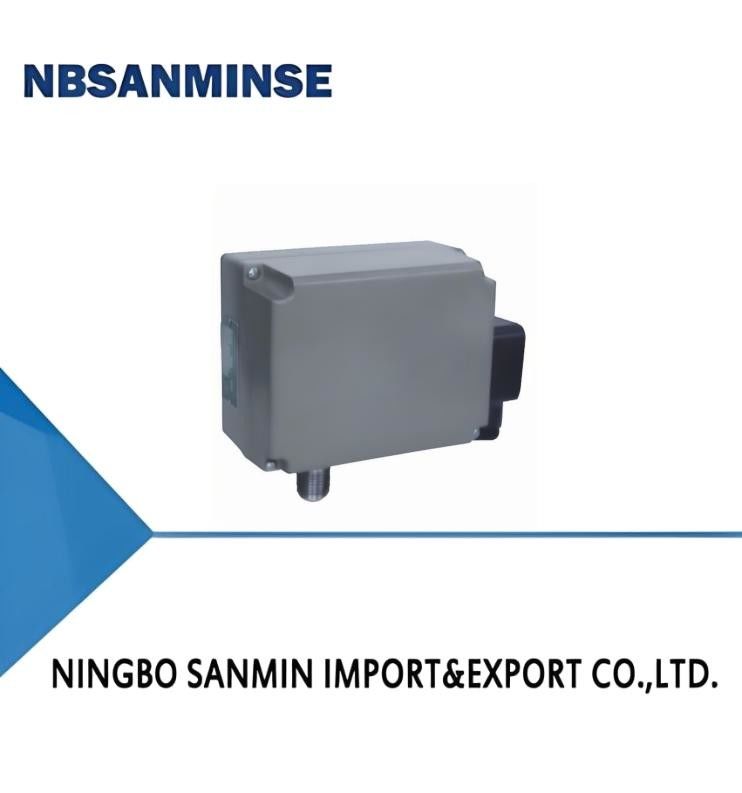

TL5228 Marine Pressure Switch Pressure Controller
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Place of Origin: | CHINA | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | CE | Model Number: | TL1217 |
|
Detail Information |
|||
| Working Viscosity: | ≤400 Mm2/s | Ambient Temp.: | －25℃~55℃ |
|---|---|---|---|
| Medium Temp.: | 0℃~88℃ | Repeatability Error: | ≤1％ |
Product Description
Overview
The TL1217 pressure switch/controller adopts a spring tube sensor, which can be used for corrosive gases and liquid media. The set value of the TL1217 pressure switch/controller is adjustable, with a range of 1-40MPa.
TL1217 pressure switch/pressure controller has a wide pressure control range, high control accuracy, small switching difference, and is suitable for corrosive media (gas or liquid) sensors.
Main Technical Performance
| Working viscosity | ≤400 mm2/s |
|---|---|
| Switching element | Micro switch (one set) |
| Degrees of protection provided by enclosure | IP65 |
| Ambient temperature | －25℃~55℃ |
| Medium temperature | 0℃~88℃ |
| Installation position | arbitrary |
| Anti-Vibration Performance | Max 10 m/s2 |
| Repeatability error | ≤1％ |
| Contact capacity | Vmax=380VAC Imax=6A(Resistive)Pmax=600VA |
Specifications
Switching difference is not adjustable
| Setting value adjustment range (MPa) | Switching difference not greater than (MPa) | **Allowable pressure ① (MPa) | Switching frequency/minute | Pressure sensor material | External thread of interface | Outline dimension drawing number | Order catalog number |
|---|---|---|---|---|---|---|---|
| 1~10 | 0.20 | 15 | 60 | 316L | G1/2 | 01 | TL1217.10-211106 |
| 1~16 | 0.32 | 20 | 60 | 316L | G1/2 | 01 | TL1217.10-212106 |
| 2~25 | 0.50 | 32 | 60 | 316L | G1/2 | 01 | TL1217.10-221106 |
| 2~40 | 0.80 | 50 | 60 | 316L | G1/2 | 01 | TL1217.10-222106 |
Note: In practical work, even a brief peak pressure cannot exceed this value.
