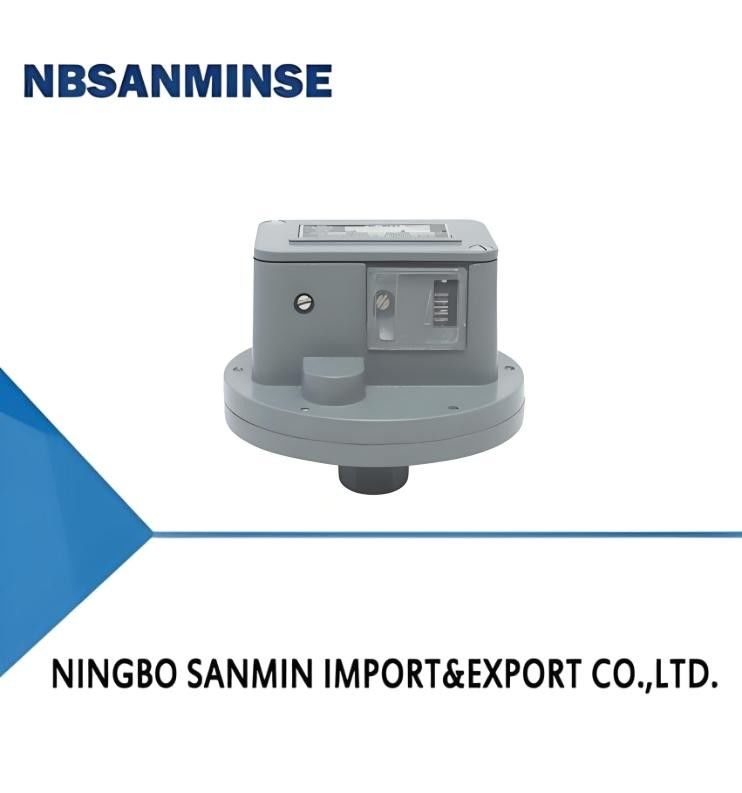

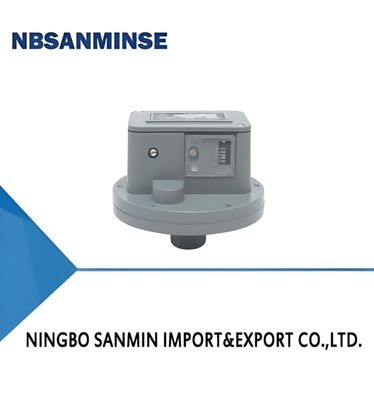

TL5228 Marine Pressure Switch Pressure Controller
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Place of Origin: | CHINA | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | CE | Model Number: | TL0019 |
|
Detail Information |
|||
| Working Viscosity: | <1×10－3m2/s | Switching Element: | Microswitch |
|---|---|---|---|
| Medium Temp.: | 0～80℃ | Ambient Temp.: | －5℃～40℃ |
Product Description
Overview
The TL0019 pressure switch/controller adopts a diaphragm sensor, which can be used for neutral gases such as air and gas, as well as liquid media such as water, hydraulic oil, lubricating oil, and light fuel oil.
The setting value of TL0019 pressure switch/pressure controller is adjustable, with a range of 0-25KPa.
Main Technical Performance
| Working viscosity | <1×10－3m2/s |
|---|---|
| Switching element | microswitch |
| Degrees of protection provided by enclosure | IP65(Compliant with DIN40050 and equivalent to IP65 in GB4208) |
| Medium temperature | 0～80℃ |
| Ambient temperature | －5℃～40℃ |
| Anti-Vibration Performance | Try to avoid installation in vibration prone areas as much as possible(Max 10m/s2) |
| Repeatability error | ≤1.5% |
| Contact capacity | AC 220V 2A(Resistive) |
Switching difference is not adjustable
| Set value adjustment range (KPa) | Switching difference not greater than (KPa) | **Allowable pressure ① (KPa) | Switching frequency/minute | Pressure sensor material | Internal thread of interface | Weight (kg) | Outline dimension drawing number | Order catalog number | |
|---|---|---|---|---|---|---|---|---|---|
| Casing | Diaphragm | ||||||||
| 0～2 | 0.1 | 5 | 60 | aluminium | Nitrile rubber | G1/4 | 0.5 | 01 | TL0019.10-017265 |
| 2～25 | 0.7 | 5 | 60 | aluminium | Nitrile rubber | G1/4 | 0.5 | 01 | TL 0019.10-033265 |
Note: In practical work, even a brief peak pressure cannot exceed this value.
② Only applicable for installation in vibration free environments.
