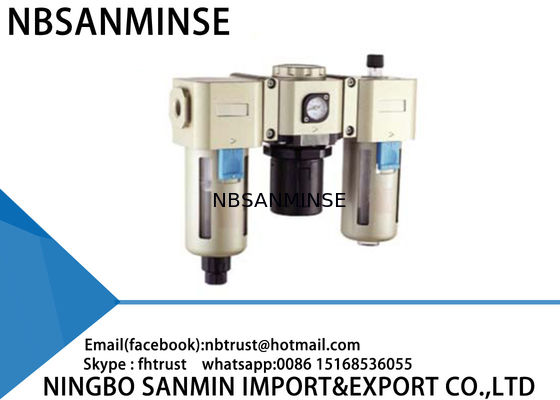

Compressor Air Regulator Moisture Filter Airtac Type GC Series ISO9001 Certification
Air Regulator Valve , Lubricator , Filter , Regulator With Filter , FR , R , L , FR + L , FR / L , FRL
We have GC200-06 , GC200-08 , GC300-08 , GC300-10 , GC300-15 , GC400-10 , GC400-15 .
Why choose us
1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping.
3: High quality with competitive price.
4: Sample order & small quantity order is acceptable.
5: Customize according to your special request.
6: Provide free products information.
7: Reliable quality assured and active after-sell service
8: One year quality guarantee
Product features
-
Oil dripping adopts gap seal structure . Which makes the adjustment of oil supply more reliable;
-
Adjustable ring for oil supply can only revolve for one circle . The quantity of oil supply . basically taking on linear distribution . The quantity of oil supply can be generally calculated according to the position of graduation ring ;
-
It is available to add oil under pressure;
-
Special drip nozzle structure will produce negative pressure in oil dripping outlet and the mist flow is minimal
-
Quick and reliable fixation makes it convenient to install and use
-
The performance of pressure adjustment is reliable with high precision
-
The efficiency of eliminating moisture and solid grain is high;
-
Three drain types are available : manual drain ,semi-auto drain and automatic drain.
Model
- GC200 series FRL unit
- GC300 series FRL unit
- GC400 series FRL unit
Port size
- 06 : PT1/8
- 08 : PT1/4
- 10 : PT3/8
- 15 : PT1/2
Drain type
- Blank semi auto drain
- M Standard
- A Auto drain
Pressure guage
- Blank with meter
- N without meter
Pressure gauge shape
- F : Diamond meter
- C : Round meter
Scale
- 1 : MPa
- 2 : Psi
- 3 : Bar
Filtering grade
- Blank 40 μm grade
- W : 5 μm grade
Thread
- Blank PT thread
- G : PS thread
- T : NPT thread
| Model |
GC200-06 |
GC200-08 |
GC300-08 |
GC300-10 |
GC300-15 |
GC400-10 |
GC400-15 |
| Work medium |
Air |
| Port size |
PT1/8 |
PT1/4 |
PT1/4 |
PT3/8 |
PT1/2 |
PT3/8 |
PT1/2 |
| Filter element precision |
40μm/5μm |
| Pressure regulating range |
Semi-auto and automatic drain: 0.15~0.9MPa(20-130Psi) : Manual drain : 0.05~0.9MPa(7-130Psi) |
| Maximum adjustable pressure |
1.0MPa(145Psi) |
| Proof pressure resistance |
1.5MPa(215Psi) |
| Available temperature |
-20~70℃ |
| Water cup capability |
10CC |
40CC |
80CC |
| Oil cup capability |
25CC |
75CC |
160CC |
| Suggest oil |
ISOVG32 or the same grade oil |
| Weight |
580g |
1300g |
2358g |
| Components |
Filter |
GF200-06 |
GF200-08 |
GF300-10 |
GF300-15 |
GF400-10 |
GF400-15 |
| Regulator |
GR200-06 |
GR200-08 |
GR300-10 |
GR300-15 |
GR400-10 |
GR400-15 |
| Lubricator |
GL200-06 |
GL200-08 |
GL300-10 |
GL300-15 |
GL400-10 |
GL400-15 |
Q: Could you offer the free samples ?
A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055
Q: What ' s your business scope ?
A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder, air and oil fitting, pressure gauge etc .
Q: What types of products you can make ?
A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .
Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?
A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.
Q: Is there a warranty available?
A: Yes, normally products is one year quality guarantee.
Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?
A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect
G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America
Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?
A: 1MPa=10bar≈145psi≈10kg
Q:What usually causes the burnout of solenoid valve coils?
A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.
Q: What should be noted for pneumatic components in high temperature or extremely cold environments?
| Focus Point |
High Temperature Environment Countermeasures |
Extreme Cold Environment Countermeasures |
| Seals |
Fluororubber, PTFE |
Low-temperature nitrile, silicone rubber, polyurethane |
| Lubrication |
High-temperature synthetic grease (low volatility) |
Low-temperature grease (low pour point, low viscosity) |
| Air Supply Treatment |
Strengthen cooling, efficient water removal |
Ultra-low dew point drying (refrigeration + adsorption type), heat tracing |
| Metal Components |
Reserve expansion clearance |
Select materials with low-temperature toughness, prevent leakage due to cold shrinkage |
| Control Components |
High heat-resistant grade coils, heat dissipation, low power consumption |
Install insulation boxes, local heating, prevent cold condensation |
| Installation |
Keep away from heat sources, add heat insulation plates |
Avoid exposure to wind and snow, wrap with thermal insulation materials |
