Air Filter Regulator Lubricator Pneumatic Two Units FRL Automation CNC Machine Air compressor Parts

Certification
China Ningbo Sanmin Import And Export Co.,Ltd. certification
China Ningbo Sanmin Import And Export Co.,Ltd. certification
I'm Online Chat Now

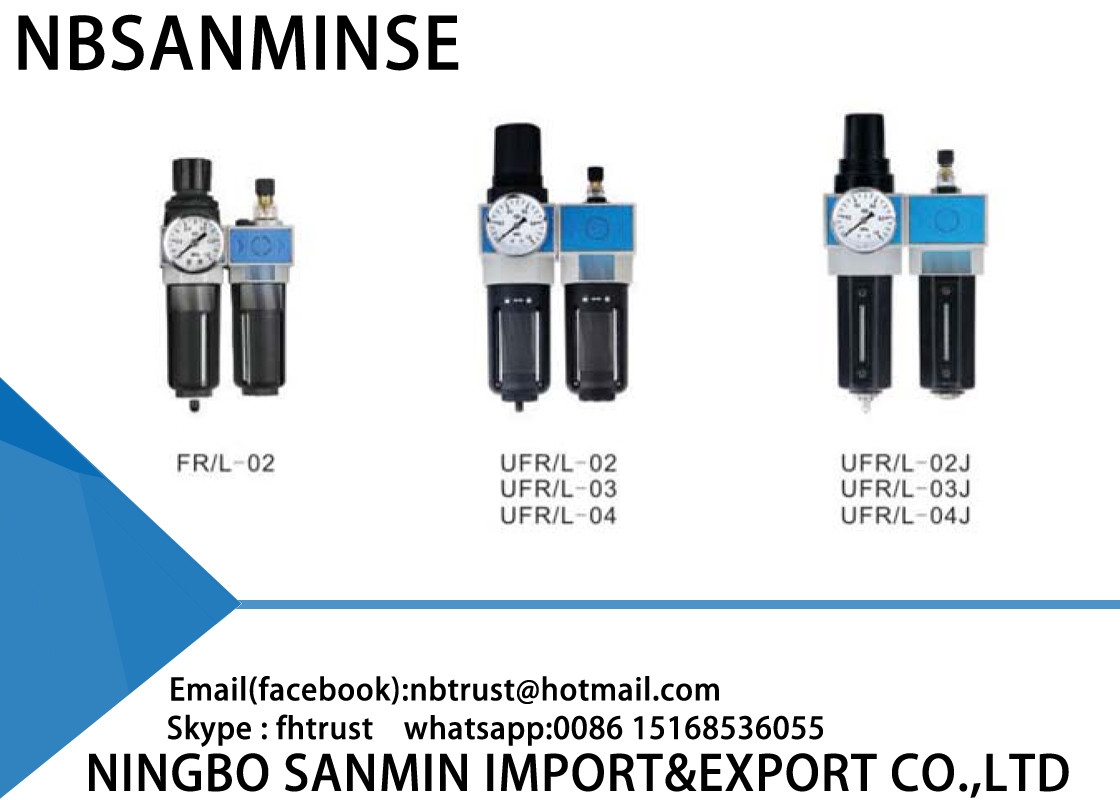

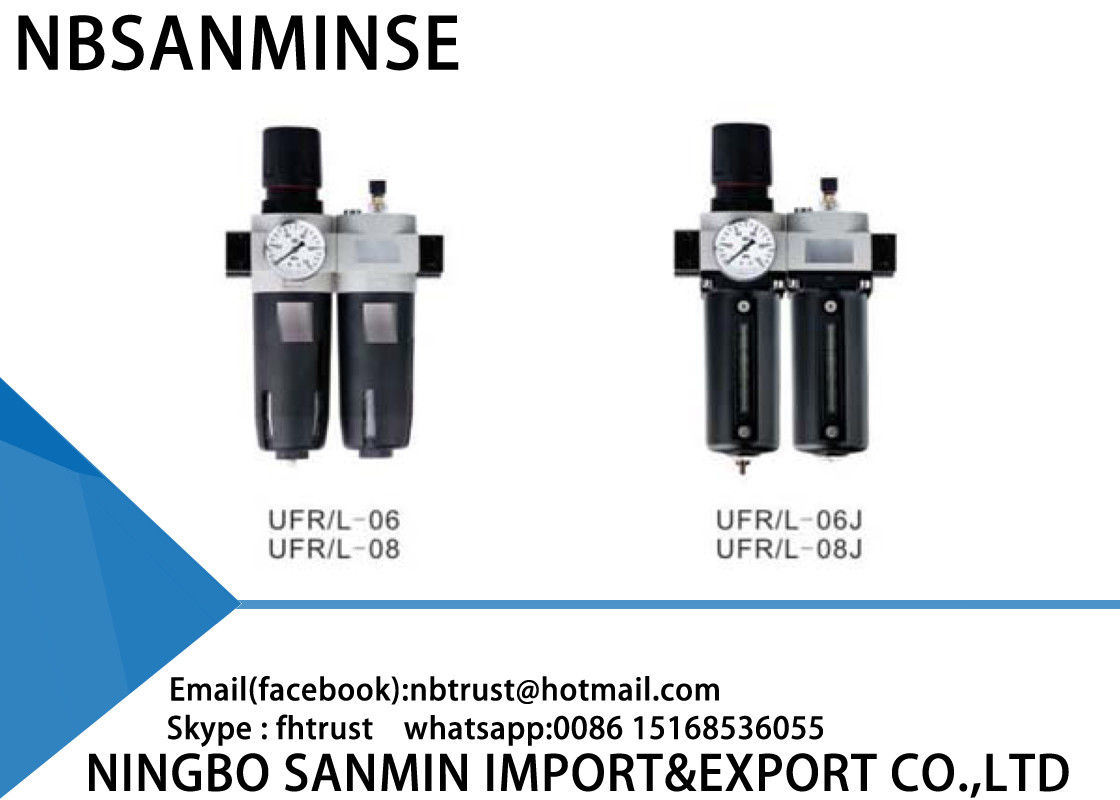

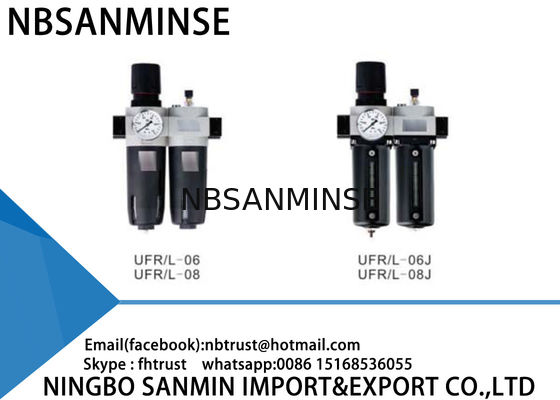

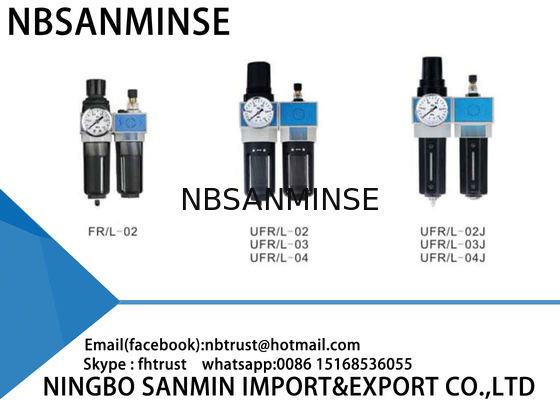

Air Filter Regulator Lubricator Pneumatic Two Units FRL Automation CNC Machine Air compressor Parts

Air Filter Regulator Lubricator Pneumatic Two Units  FRL Automation CNC Machine Air compressor Parts
Air Filter Regulator Lubricator Pneumatic Two Units  FRL Automation CNC Machine Air compressor Parts Air Filter Regulator Lubricator Pneumatic Two Units  FRL Automation CNC Machine Air compressor Parts

Large Image :  Air Filter Regulator Lubricator Pneumatic Two Units FRL Automation CNC Machine Air compressor Parts

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: UFR / L
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS

Air Filter Regulator Lubricator Pneumatic Two Units FRL Automation CNC Machine Air compressor Parts

Description
Type: Air Source Equipment Model Number: U / FRL
Model: 02 , 02J , 03 , 03J , 04 , 04J , 06 , 08 Port Size: 1 / 4 , 3 / 8 , 1 / 2 , 3 / 4 , 1
Temperature: - 10 ~ 60 Working Medium: Air
Material: Aluminum Alloy Working Pressure: -5-60C
Highlight:

regulator filter lubricator

,

pump lubrication system

UFR / L Sanmin Filter + Regulator + Lubricator Air Source Equipment SHAKO Type Pneumatic Air Oil Seperator





Feature :



Remove water and particle effectively.

40µm and 5µm filter element are easily interchangeable and replaceable.

Accurate and easy pressure setting.

Lubricator oil can be replenished without stopping air supply.

Oil spray in mist ensures good lubrication for machines.

Anti-acid & alkali bowl and aluminum bowl provide excellent protection in organic chemistry working environments.




Specifications :



Model UFR / L - 02 UFR / L - 03 UFR / L - 04 UFR / L - 06 UFR / L - 08
Port Size 1 / 4 “ 3 / 8 “ 1 / 2 “ 3 / 4 “ 1 “
Fluid Compressed air
Regulator construction Piston
Body material Aluminum die - cast
Bowl material Polycarbonate ( Standard ) , Anti – acid & alkali bowl ( Option ) , Aluminum bowl ( Option )
Filtration PE : 5 um ( Standard ) , 40 um ( Option ) , Sintered brass ( Option ) : 5um ` 40um
Operating pressure range 0 . 5 ~ 10kgf / cm
Proof pressure ( Standard bowl ) 15kgf / cm²
Max . flow rate l / min ( ANR ) 2080 2100 2600 7940 8200
Ambient temperature 10 ℃ ~ 60 ℃
Lubricator oil ( Recommended ) ISO – VG32
Filter bowl capacity 105 cc 210cc
Lubricator oil capacity 125cc 235cc
Standard drain Semi – auto drain ( Drains below 0 . 5 kgf / cm ² )
New weight 1480 g ( W / I Aluminum bowl 1780g ) 2145g
Accessories Pressure gauge , Mounting bracket , Plug , Screw × 4




Why choose us


1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping.
3: High quality with competitive price.
4: Sample order & small quantity order is acceptable.
5: Customize according to your special request.
6: Provide free products information.
7: Reliable quality assured and active after-sell service
8: One year quality guarantee




FRL - 02 , UFRL - 02 , UFRL - 03 , UFRL - 04 , UFRL - 02J , UFRL - 03J , UFRL - 04J , UFRL - 06 ,

UFRL - 08 , UFRL - 06J , UFRL - 08J , FR / L - 02 , UFR / L - 02 , UFR / L - 03 , UFR / L - 04 ,

UFR / L - 02J , UFR / L - 03J , UFR / L - 04J , UFR / L - 06 , UFR / L - 08 , UFR / L - 06J , UFR / L - 08 ,

FR - 02 , UFR - 02 , UFR - 03 , UFR - 04 , UFR - 02J , UFR - 03J , UFR - 04J , UFR - 06 , UFR - 08 ,

UFR - 06J , UFR - 08J , F - 02 , UF - 02 , UF - 03 , UF - 04 , UF - 02J , UF - 03J , UF - 04J , UF - 06 ,

UF - 08 , UF - 06J , UF - 08J , R - 02 , UR - 02 , UR - 03 , UR - 04 , UR - 06 , UR - 08 , L - 02 , UL - 02 ,

UL - 03 , UL - 04 , UL - 02J , UL - 03J , UL - 04J , UL - 06 , UL - 08 , UL - 06J , UL - 08J .




Air Filter Regulator Lubricator Pneumatic Two Units  FRL Automation CNC Machine Air compressor Parts 0



Our products are high quality with 12 month guarantee ,and support paypal payment.
