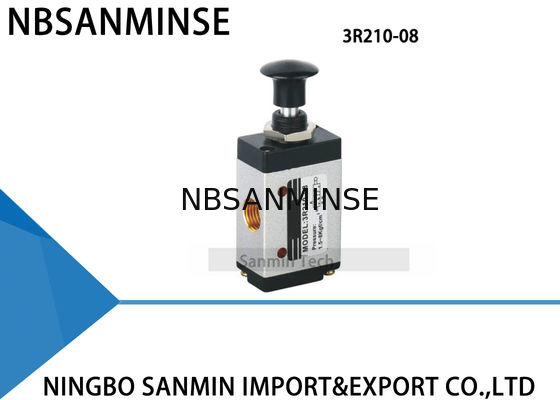

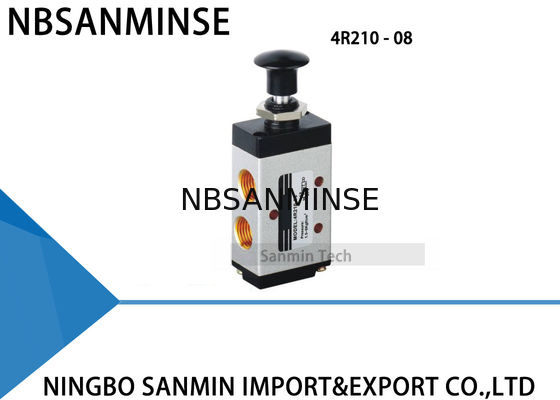

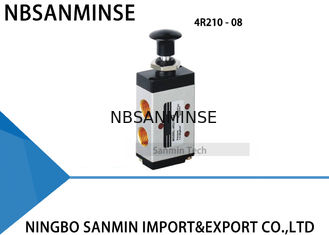

3R / 4R Two Position Five Way Hand Draw Valve G 1/8" , 1/4" , 3/8" , 1/2" Control Manual Solenoid Valve Sanmin
Ordering Code
Specification Code
4R : Two – position Five – Way Hand – draw Valve
3R : Two – Position Three – Way Hand – draw Valve
Series Code
100 Series
200 Series
300 Series
400 Series
Position Number
10 : Two Position
Joint Pipe Bore
06:G1/8”
08:G1/4”
10:G3/8”
15:G1/2”
Specification
| Model |
4R210-06 |
4R210-08 |
3R210-06 |
3R210-08 |
4R310-08 |
4R310-10 |
3R310-08 |
3R310-10 |
| Working Medium |
Air |
| Number of Places |
Two – Position Five – Way |
Two – Position Three - Way |
Two - Position Five - Way |
Two – Position Three - Way |
| Effectives Sectional Area |
14mm⊃2; (CV=0.78) |
16mm⊃2; (CV=0.89) |
14mm⊃2; (CV=0.78) |
16mm⊃2; (CV=0.89) |
25mm⊃2; (CV=1.4) |
30mm⊃2; (CV=1.68) |
25mm⊃2; (CV=1.4) |
30mm⊃2; (CV=1.68) |
| Joint Pipe Bore |
Air Inlet = Air Outlet = Exhaust G1/8” |
Air Inlet = Air Outlet = G1/4”
Exhaust =G1/8”
|
Air Inlet = Air Outlet = Exhaust =G1/8” |
Air Inlet = Air Outlet = Exhaust = G1/4” |
Air Inlet = Air Outlet = Exhaust =G1/4” |
Air Inlet = Air Outlet = G3/8” Exhaust =G1/4” |
Air Inlet = Air Outlet = Exhaust G1/4” |
Air Inlet = Air Outlet = Exhaust G3/8” |
| Working Pressure |
0 ~ 8.0 Kgf / cm⊃2; |
| Operating Temperature Range |
-5 ~ 60 ℃ |
