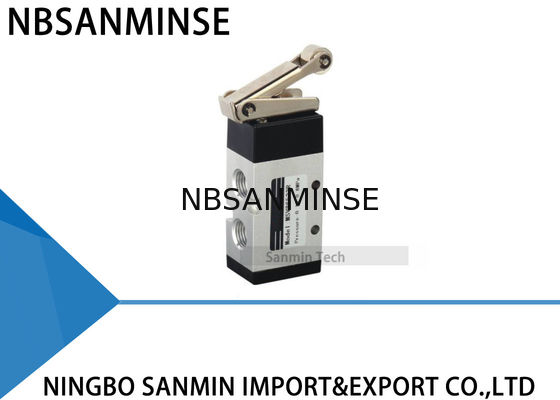

MSV Pneumatic Mechanical Valve , Two Position Three Way / Two Position Five Way Air Valve

MSV Pneumatic Mechanical Valve , Two Position Three Way / Two Position Five Way Air Valve

    • MSV Pneumatic Mechanical Valve , Two Position Three Way / Two Position Five Way Air Valve
    • MSV Pneumatic Mechanical Valve , Two Position Three Way / Two Position Five Way Air Valve
  • MSV Pneumatic Mechanical Valve , Two Position Three Way / Two Position Five Way Air Valve

    Product Details:

    Place of Origin: China
    Brand Name: NBSANMINSE
    Certification: ISO9001
    Model Number: MSV

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiation
    Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
    Delivery Time: Negotiation
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: Negotiation
    Contact Now
    Detailed Product Description
    Specification: Mechanical Valve Position: Two Position Three Way , Two Position Five Way
    Joint Pipe: G1 / 8 " , G1 / 4 " Working Medium: 40 Micron Filtered Air
    Pressure Range: 0 ~ 0.8MPa Temperature: 0 ~ 60 ℃

    MSV Air Control Valve Mechanical Valve Two Position Three Way / Two Position Five Way Air Valve Sanmin



    Specification Code
    Mechanical Valve

    Series Code
    86 Series
    98 Series

    Position And Way Number
    32 : Two - Position Three Way
    52 : Two - Position Five Way

    Joint Pipe Bore
    1 : G1/8"
    2 : G1/4"

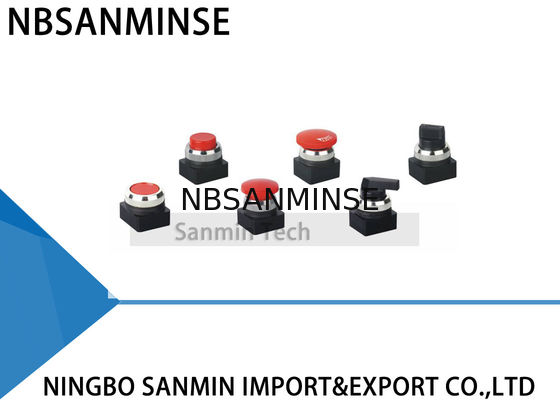

    Button Type
    Blank : Basic Type
    R : Roller Type
    TB : Selective Knob
    LB : Strengthened Knob
    PB : Large Round Button
    PP : Plat Round Button
    PPL : Convex Round Button
    EB : With Lock Button

    Specification

    ModelMSV86321MSV86522MSV96322
    Working Medium40 Micron Filtered Air
    Position And Way NumberTwo – Position Three – WayTwo – Position Five – WayTwo – Position Three – Way
    Pressure0 ~ 0.8 MPa0 ~ 0.8 MPa0 ~ 0.8 MPa
    Temperature0 ~ 60 ℃
    Effective Section Area12mm⊃2;(CV=0.67)16mm⊃2; (CV=0.89)16mm⊃2; (CV=0.89)
    Joint Pipe BoreG1/8”G1/4”G1/4”



    FAQ

    Q: What ' s your delivery date ?
    A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .


    Q: What is the price of the product ?
    A: Our prices are based on the size and type of material , if you can give me the information ,
    then we can give you an estimated price is for reference only . We can do any size and any desgin .


    Q: what types of products you can make ?
    A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .


    Q: Do your company have specialized technical personnel ?
    A: Design as your requirements,and have QC for make 100% inspection


    Q: Can the product be made with our logo and brand ?
    A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.


    Why choose us

    1: Sample order & small quantity order is acceptable .
    2: Customize according to your special request .
    3: Provide free products information .
    4: Reliable quality assured and active after-sell service
    5: One year quality guarantee
