UFRL Pneumatic Filter Regulator Lubricator Air FRL Unit With Anti Acid Bowl

Minimum Order Quantity : 20 Price : Negotiation
Packaging Details : Plastic Bags , Boxes , Carton , Pallet or As Customer Advice Delivery Time : Negotiation
Supply Ability : 9985 Year
Place of Origin: NINGBO Brand Name: NBSANMINSE
Certification: ISO9001 Model Number: UFRL

Detail Information

Type: Air Source Equipment Model Number: UFRL
Model: 02 , 03 , 04 , 06 , 08 Port Size: 1 / 4 , 3 / 8 , 1 / 2 , 3 / 4 , 1
Temperature: - 10 ~ 60 Medium: Air
High Light:

regulator filter lubricator

,

industrial air filter regulator

Product Description

UFRL Pneumatic Filter Regulator Lubricator , Air FRL Unit With Anti Acid Bowl





Filter +Regulator + Lubricator

Thtrad : G / NPT / Rc

Filtration : PE 5 um , 40 um , Sintered brass 5um , 40um

Drain : Semi - auto drain , Manual drain , Auto drain

Bowl : Standard bowl , Anti - acid & alkali bowl , Aluminum bowl ( 1 / 4 " ~ 1 / 2 " )



Feature :



Remove water and particle effectively.

40µm and 5µm filter element are easily interchangeable and replaceable.

Accurate and easy pressure setting.

Lubricator oil can be replenished without stopping air supply.

Oil spray in mist ensures good lubrication for machines.

Anti-acid & alkali bowl and aluminum bowl provide excellent protection in organic chemistry working environments.




Specifications :



Model UFRL - 02 UFRL - 03 UFRL - 04 UFRL - 06 UFRL - 08
Port Size 1 / 4 “ 3 / 8 “ 1 / 2 “ 3 / 4 “ 1 “
Fluid Compressed air
Regulator construction Piston
Body material Aluminum die - cast
Bowl material Polycarbonate ( Standard ) , Anti – acid & alkali bowl ( Option ) , Aluminum bowl ( Option )
Filtration PE : 5 um ( Standard ) , 40 um ( Option ) , Sintered brass ( Option ) : 5um ` 40um
Operating pressure range 0 . 5 ~ 10kgf / cm
Proof pressure ( Standard bowl ) 15kgf / cm²
Max . flow rate l / min ( ANR ) 2080 2100 2600 7940 8200
Ambient temperature 10 ℃ ~ 60 ℃
Lubricator oil ( Recommended ) ISO – VG32
Filter bowl capacity 105 cc 210cc
Lubricator oil capacity 125cc 235cc
Standard drain Semi – auto drain ( Drains below 0 . 5 kgf / cm ² )
New weight 1800g ( W / I Aluminum bowl 1780g ) 2650g
Accessories Pressure gauge , Mounting bracket , Plug , Screw × 4






Why choose us


1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping.
3: High quality with competitive price.
4: Sample order & small quantity order is acceptable.
5: Customize according to your special request.
6: Provide free products information.

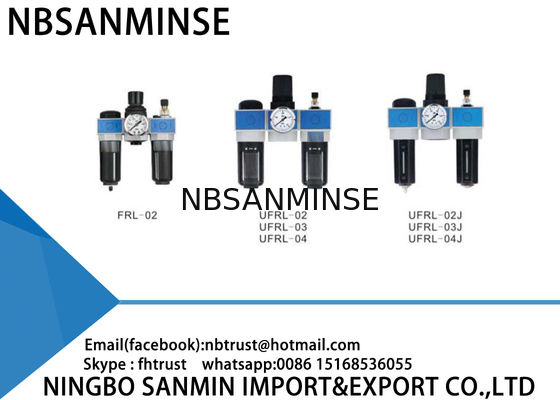

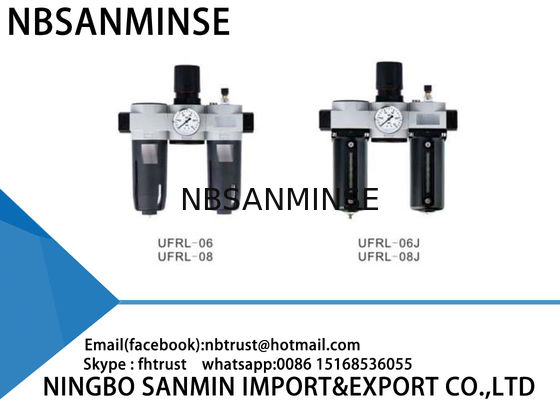

FRL - 02 , UFRL - 02 , UFRL - 03 , UFRL - 04 , UFRL - 02J , UFRL - 03J , UFRL - 04J , UFRL - 06 ,

UFRL - 08 , UFRL - 06J , UFRL - 08J , FR / L - 02 , UFR / L - 02 , UFR / L - 03 , UFR / L - 04 ,

UFR / L - 02J , UFR / L - 03J , UFR / L - 04J , UFR / L - 06 , UFR / L - 08 , UFR / L - 06J , UFR / L - 08 ,

FR - 02 , UFR - 02 , UFR - 03 , UFR - 04 , UFR - 02J , UFR - 03J , UFR - 04J , UFR - 06 , UFR - 08 ,

UFR - 06J , UFR - 08J , F - 02 , UF - 02 , UF - 03 , UF - 04 , UF - 02J , UF - 03J , UF - 04J , UF - 06 ,

UF - 08 , UF - 06J , UF - 08J , R - 02 , UR - 02 , UR - 03 , UR - 04 , UR - 06 , UR - 08 , L - 02 , UL - 02 ,

UL - 03 , UL - 04 , UL - 02J , UL - 03J , UL - 04J , UL - 06 , UL - 08 , UL - 06J , UL - 08J .
