Z4 Stainless Steel Solenoid Valves For Water Direct Acting Solenoid Valve

Minimum Order Quantity : 20 Price : Negotiation
Packaging Details : Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice Delivery Time : Negotiation
Payment Terms : L/C, T/T, Western Union Supply Ability : Negotiation
Place of Origin: NINGBO Brand Name: NBSANMINSE
Certification: ISO9001 Model Number: Z4 2 / 2 - Way Normally Closed

Detail Information

Medium: Water , Hot Water , Air , Gas , Oil Etc Type: Normally Closed
Temperature: 0 ~ 65 ℃ Connection: Thread , Flange ( DN 25 - 100 )
Action: Direct Acting Body: Stainless Steel 304 / 316
Pressure: 0 - 10 Kgf / Cm ² Port Size: 3 / 8 " ,1 / 2 " ,3 / 4 " ,1 " ,1 1 / 4 " ,1 1 / 2 " ,2 "
High Light:

electronic solenoid valve

,

electric solenoid valve

Product Description

Z4 Stainless Steel Solenoid Valves For Water , Direct Acting Solenoid Valve





Applicability :



1 . The pipeline fluid must same as solenoid valve marked medium .

2 . Fluid temperature must be less than the marked temperature .

3 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid

valve , general solenoid valve is better claim to medium cleanness

4 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions permit , please install bypass pipe , easy maintenance ; When there is water drain to customize solenoid valve opening and closing time regulation .

5 . Pay attention to the environmental temperature on the influence of solenoid valve .

6 . Power supply current and power consumption should be selected according to the output

capacity , power supply voltage generally allow + / - 10 % , must pay attention to AC starting the VA value is higher .



Reliability :



Ction time is very short at high frequency generally choose directly acting , large diameter

choose fast series .



Security :



General solenoid valve is not waterproof , when needs waterproof model , we can be customized .

Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure in the pipeline , otherwise life will shorten or other unexpected circumstances .




Details



1: 2 - Way normally closed solenoid valve , Closed when de - energized , open when energized .

2: Body material : 304 stainless steel and 316 stainless steel .

3: Fluids Temp : 0 ℃ ~ 120 ℃ ; Ambient Temp . 0 ℃ ~ 65 ℃

4: Serialized products , small in size , large flow rate , widely use .

5. Flow as the arrow , mouts in any position ; Best position is Solenoid Vertical and upright direction .

6: Voltage : 220VAC / 230VAC / 240VAC / 110VAC / 24VAC 50 / 60 HZ 24VDC / 12VDC ;

vOLTAGE tOLERANCE : + 10 % TO - 10 % applicable voltage

7: Coil can fix Germany Nass Coil , for orifice under DN25 only .

8: This series valves are offered NBR ` VITON ` EPDM etc for Seals and diaphragm to provide on - off conerol of various fluids .

9 : Coil can fix SM Coil below DN25 . AC 220V / AC110V / AC24V / DC24V .




Why choose us



1: Large stock for fast shipping .
2: High quality with competitive price .
3: Sample order & small quantity order is acceptable .

4: Reliable quality assured and active after-sell service
5: One year quality guarantee



FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples for the massive products .



Q: What ' s your business scope ?
A: Our business scope is air cylinder , air source treatment , air solenoid valve , motorize valve , pneumatic valve , quick fitting , etc .



Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days . If you need emergency products , we can speed up the production of the first arrangement .



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any color .



Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .

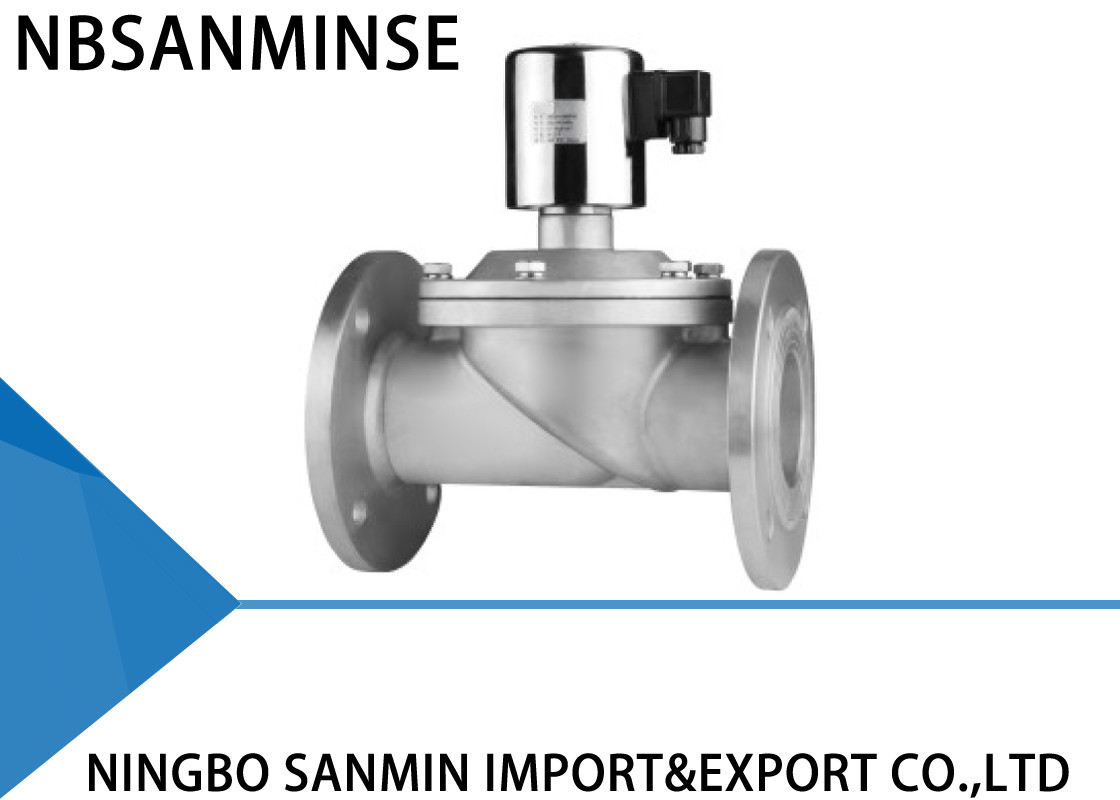

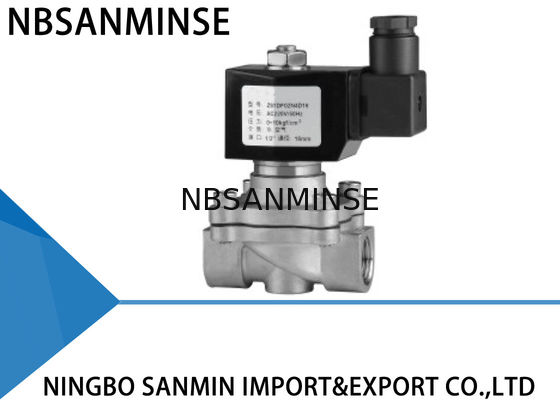

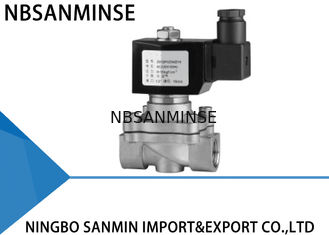

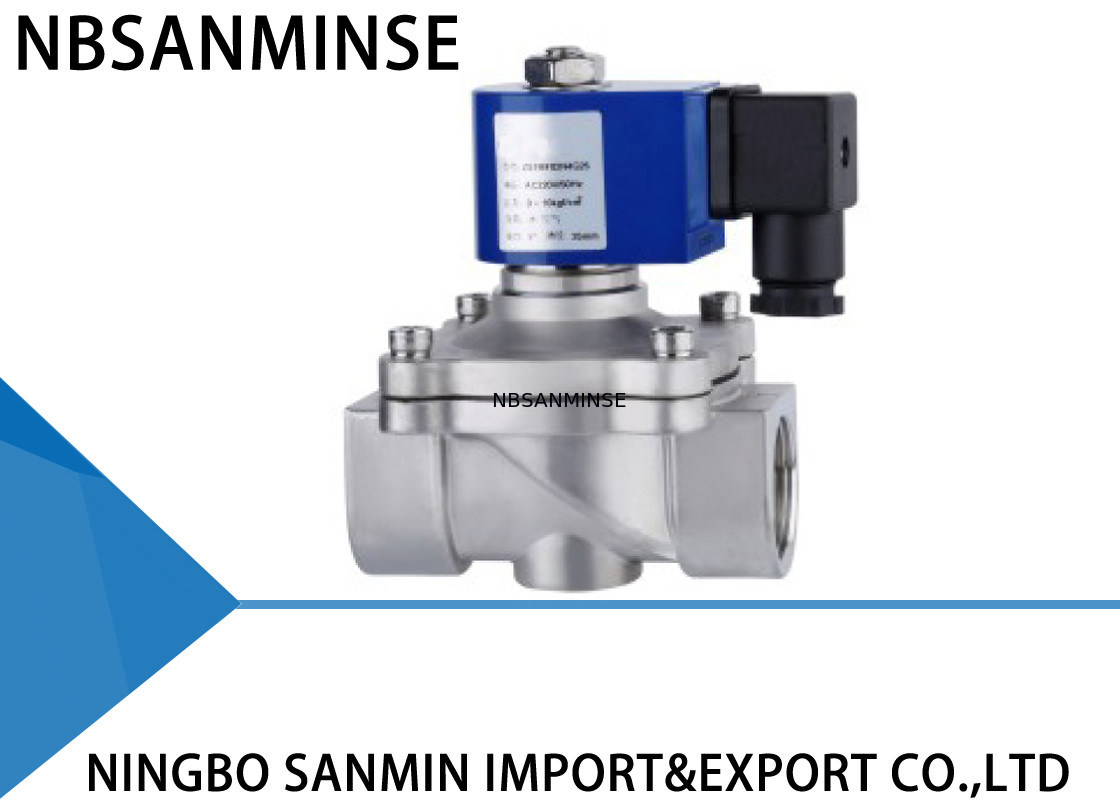

Z4 Stainless Steel Solenoid Valves For Water Direct Acting Solenoid Valve 0Z4 Stainless Steel Solenoid Valves For Water Direct Acting Solenoid Valve 1Z4 Stainless Steel Solenoid Valves For Water Direct Acting Solenoid Valve 2Z4 Stainless Steel Solenoid Valves For Water Direct Acting Solenoid Valve 3
