High Flow Brass Solenoid Valve Diaphragm Solenoid Valve P1 Compact Series

China High Flow Brass Solenoid Valve Diaphragm Solenoid Valve P1 Compact Series supplier

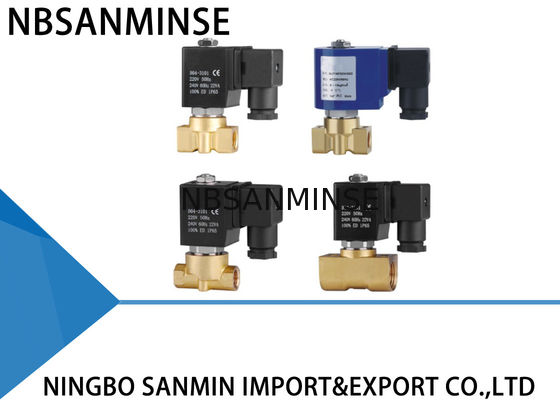

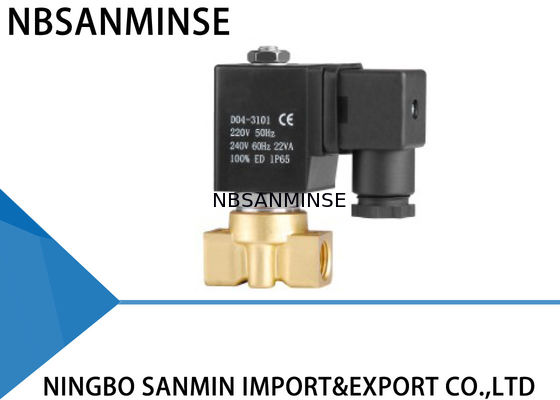

High Flow Brass Solenoid Valve Diaphragm Solenoid Valve P1 Compact Series supplier High Flow Brass Solenoid Valve Diaphragm Solenoid Valve P1 Compact Series supplier High Flow Brass Solenoid Valve Diaphragm Solenoid Valve P1 Compact Series supplier High Flow Brass Solenoid Valve Diaphragm Solenoid Valve P1 Compact Series supplier High Flow Brass Solenoid Valve Diaphragm Solenoid Valve P1 Compact Series supplier

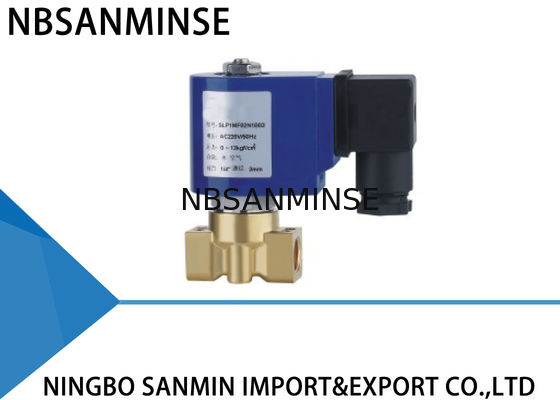

Large Image :  High Flow Brass Solenoid Valve Diaphragm Solenoid Valve P1 Compact Series

Product Details:

Place of Origin: NINGBO
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: P1 2 / 2 Way Brass Vlave

Payment & Shipping Terms:

Minimum Order Quantity: 20
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000Pcs / Year
Contact Now
Detailed Product Description
Medium: Water , Hot Water , Air , Gas , Oil Etc Type: Normally Closed
Temperature: 0 ~ 65 ℃ Connection: Thread
Action: Direct Acting Body: Forged Brass , Stainless Steel 316
Pressure: 0 ~ 13 Kgf / Cm ² Port Size: 1 / 8 " ,1 / 4" ,3 / 8 " ,1 / 2 "

High Flow Brass Solenoid Valve , Diaphragm Solenoid Valve P1 Compact Series







Applicability

1 . The pipeline fluid must same as solenoid valve marked medium .

2 . Fluid temperature must be less than the marked temperature .

3 . Solenoid valve allowed the liquid viscosity , generally under 20 CST , more than 20 CST shall be indicated .

4 . About the working pressure difference , the pipeline high - pressure difference less than 0 . 04MPa should be chosen as Z , 2W ,it is directly acting and direct - action step .
the pipeline high - pressure difference higher than 0 . 04MPa can choose polited type ( differential ) solenoid valve ;
Maximum working pressure difference should be less than the biggest calibration pressure of solenoid valve ; General solenoid valve is a one - way work , so should pay attention to whether there is a contrast pressure , if you have to install the check valve .

5 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid valve , general solenoid valve is better claim to medium cleanness



Reliability

Solenoid valve is divided into normally closed and normally open . General choose normally close , power on is open and power off is shut down ; But in the open for a long time and very short close time to choose the normally open type .


Security

1.General solenoid valve is not waterproof , when needs waterproof model , we can be customized .

2. Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure in the pipeline , otherwise life will shorten or other unexpected circumstances .



Economy

There are a lot of solenoid valve can be common use , but on the basis of can satisfy the above three terms , should choose the most economical products





Details



1: 2 Way normally closed solenoid valve , Closed when de - energized , open when energized .

2: Serialized products , small in size , large flow rate , widely usd .

3: Body material : forged brass . 316 stainless steel .

4: Ambient Temp . 0 ℃ ~ 65 ℃ , Fluids Temp 0 ℃ ~ 130 ℃

5: Flow as the arrow , mounts in any position ; Best position is solenoid vertical and upright direction .

6: Voltage : 220VAC / 230VAC / 240VAC / 110VAC / 24VAC 50 / 60HZ 24VDC / 12VDC ; Voltage Tolerance : + 10 % to - 10 % applicable voltage .

7:This series valves are offered NBR ` VITON ` EPDM etc for Seals and diaphragm to provide on - off control of various fluids .

8: Coil can fix SM Coil . AC220V / AC110 / AC24V / DC24V






Why choose us



1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .

4: Provide free products information .
5: Reliable quality assured and active after-sell service




FAQ



Q: What ' s your business scope ?
A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve ,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick coupler , etc .



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .



Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .



Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection



Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.

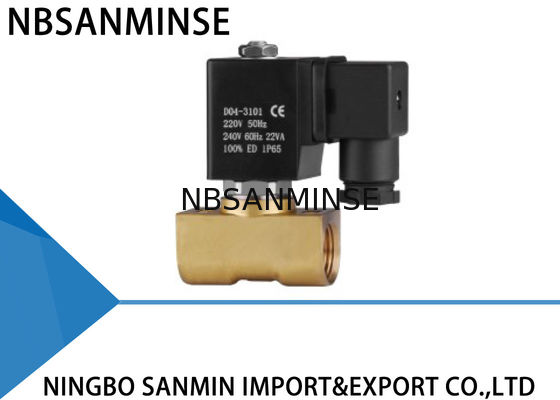

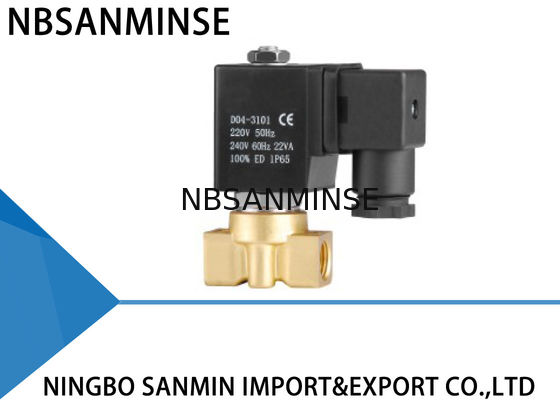

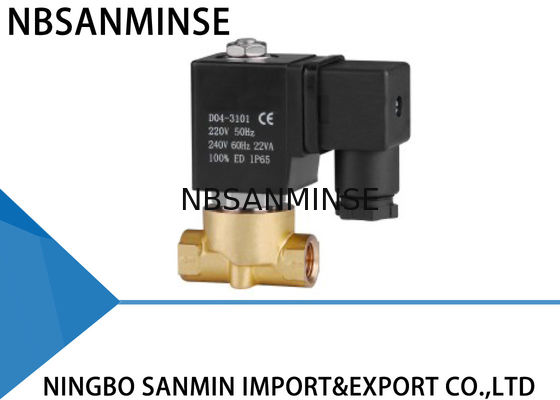

High Flow Brass Solenoid Valve Diaphragm Solenoid Valve P1 Compact SeriesHigh Flow Brass Solenoid Valve Diaphragm Solenoid Valve P1 Compact SeriesHigh Flow Brass Solenoid Valve Diaphragm Solenoid Valve P1 Compact Series


Our products are high quality with 12 month guarantee ,and support paypal payment.
