|Place of Origin:||NINGBO|
|Model Number:||A4 Pilot Operated Pston|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice|
|Payment Terms:||L/C, T/T, Western Union|
|Medium:||Water , Hot Water , Air , Gas , Oil Etc||Type:||Normally Open|
|Temperature:||0 ~ 65 ℃||Connection:||Thread , Flange ( DN 25 - 50 )|
|Action:||Pilot Operated Piston||Body:||Stainless Steel 304 / 316|
|Pressure:||0 . 5 ~ 10 Kgf / Cm ²||Port Size:||3 / 8 " ,1 / 2 " ,3 / 4 " ,1 " ,1 1 / 4 " ,1 1 / 2 " ,2 "|

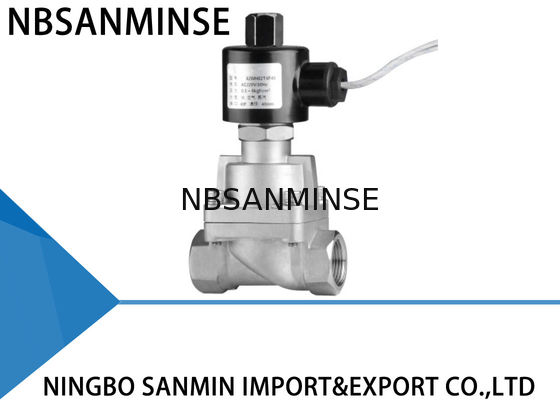

A4 SS / Brass Solenoid Valve 3 / 4 " 1 " 2 " Reliability Environmentally Friendly
1 . The pipeline fluid must same as solenoid valve marked medium .
2 . Fluid temperature must be less than the marked temperature .
3 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions permit , please install bypass pipe , easy maintenance ; When there is water drain to customize solenoid valve opening and closing time regulation .
4 . Pay attention to the environmental temperature on the influence of solenoid valve .
5 . Power supply current and power consumption should be selected according to the output capacity , power supply voltage generally allow + / - 10 % , must pay attention to AC starting the VA value is higher .
Ction time is very short at high frequency generally choose directly acting , large diameter choose fast series .
1 . General solenoid valve is not waterproof , when needs waterproof model , we can be customized .
2 . Explosive environment must choose corresponding anti - explosion type.
There are a lot of solenoid valve can be common use , but on the basis of can satisfy the above three terms , should choose the most economical products.
1: 2 Way normally open solenoid valve ; Open when de - energized , closed when energized .
2: Body material forged 304 stainless steel ( standard ) , 316 stainless steel ( special made ) .
3: Max . Allowable pressure 12kgf / cm ² ; Ambient Temp . 0 ℃ ~ 65 ℃ ( F CLASS ) , 0 ℃ ~ 80 ℃ ( H CLASS )
4: Serialized products , small in size , large flow rate , widely use .
5: Flow as the arrow , mounts in any position ; Best position is Solenoid vetical and upright direction.
6: Voltage : 220VAC / 230VAC / 240VAC / 110VAC / 24VAC / 50 / 60 HZ 24VDC / 12VDC
7: This series valves are offered PTFE for Seals to Seals to provide on - off control of various fluids .
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve ,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick coupler , etc .
Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .
Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection
Why choose us
1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: Customize according to your special request .
4: Provide free products information .
5: Reliable quality assured and active after-sell service
